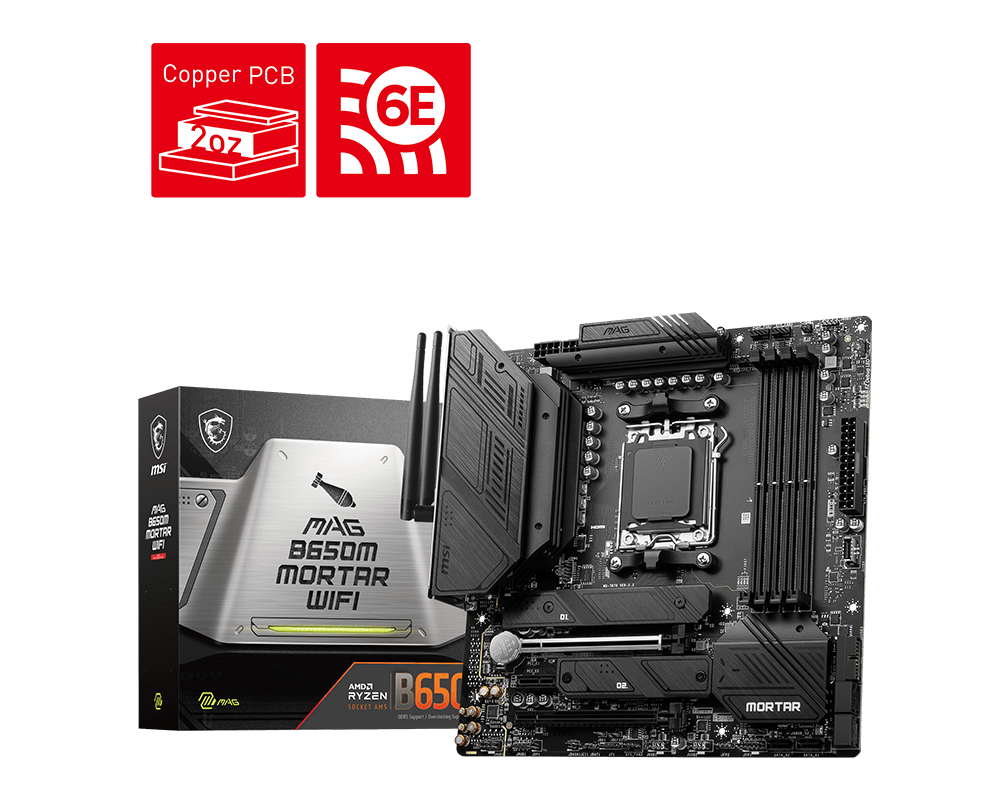

![MAG B650M MORTAR WIFI](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/icon-mag-b650m-mortar-wifi.png)
![MAG B650M MORTAR WIFI](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/mag-b650m-mortar-wifi.png)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/story-textin-mag.png)
![MSI MEG Case with MIS Products](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/story-model-mag.png)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/story-mag-icon.png)
团结合击
MAG 系列主机板为荣誉而生,与玩家一同并肩作战。 MSI主机板增添浓浓军事元素,提供坚实稳定最佳平台。

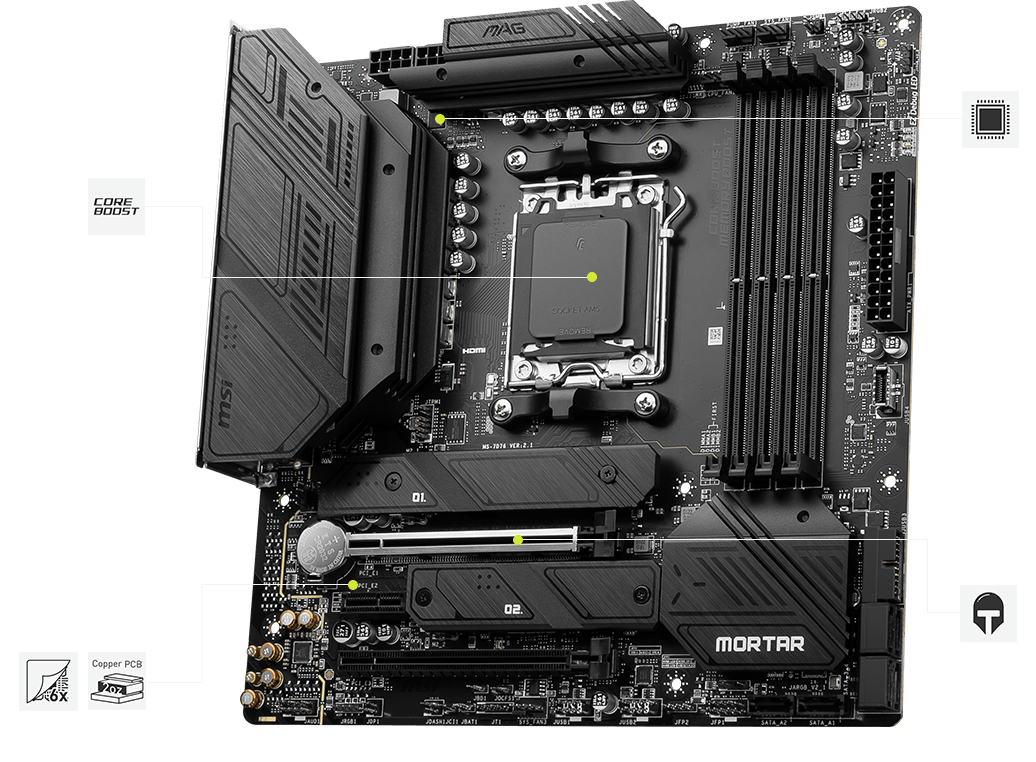

独家技术
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/mag-b650m-mortar-wifi-block01.png)
![Core Bost Technology](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/icon/icon-core-boost.png)
Core Boost 技术
![6 Layer PCB](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/icon/icon-6-layer-PCB.png)
![2oz Thickened Copper](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/icon/icon-2oz-thickened.png)
6 层PCB 加入2oz厚度铜
![Digital PWM](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/icon/icon-Digital-PWM.png)
数位PWM
![Steel Armor](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/icon/icon-Steel-Armor.png)
钢铁装甲

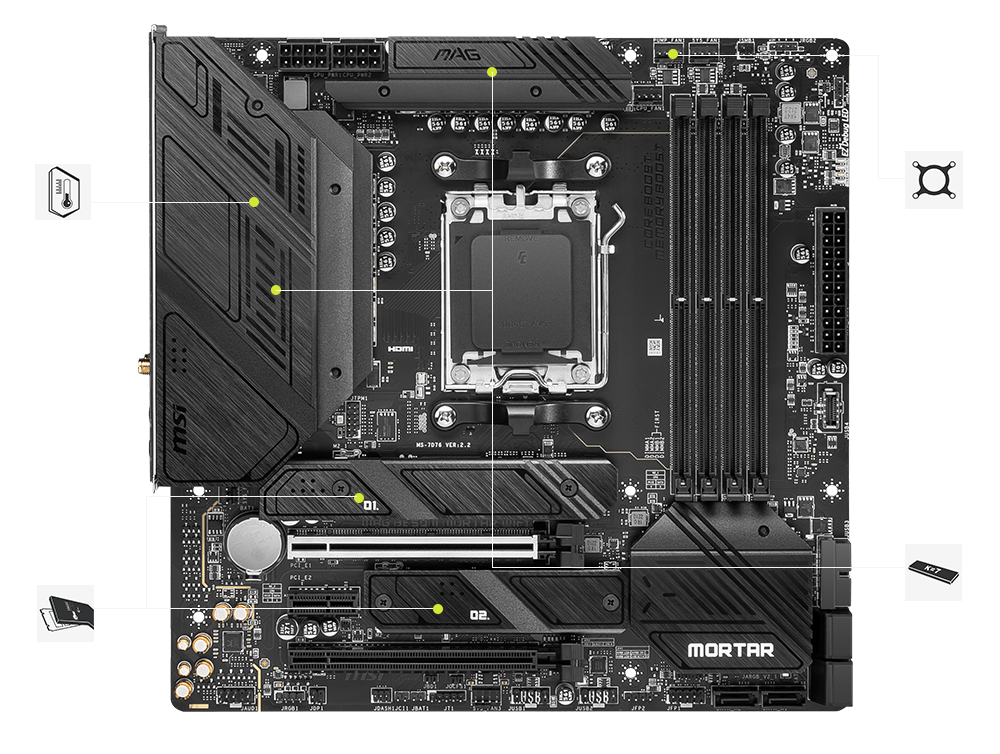

优异散热解决方案
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/mag-b650m-mortar-wifi-block02.png)
![Extended Heatsink](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/icon/icon-extended-heatsink.png)
加大散热片
![M.2 Shield Frozr](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/icon/icon-M2-Shield-Frozr.png)
M.2 Shield Frozr
![Pump Fan Support](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/icon/icon-pump-fan-support.png)
帮浦风扇支援
![Heatsink with 7W/mK Thermal Pad](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/icon/icon-k7.png)
Heatsink with 7W/mK 散热垫
高速传输
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/mag-b650m-mortar-wifi-block03.png)
![2.5G Network Solution](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/icon/icon-2_5G-super-LAN.png)
2.5G 网路解决方案
![Wi-Fi 6E](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/icon/icon-wifi-6e.png)
Wi-Fi 6E
![Memory Boost](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/icon/icon-memory-boost.png)
Memory Boost
![Lightning Gen 4](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/icon/icon-lightning-gen4.png)
Lightning Gen 4
硬件
- 散热
- 供电解决方案
- 友善设计
- 完善风扇控制
- cooling overview
- 水冷散热
完善风扇控制
MSI主板可让您管理所有系统和CPU风扇的速度和温度。 Total Fan Control让您在直觉式的介面中检查主要系统项目。您还可以为CPU和主板设置最多4个温度标准,系统也将依照这温度标准自动调整风扇速度。
![msi fully control software](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-fully-control-software.jpg)
使用MSI AI 引擎可检测CPU 和GPU 温度并自动将系统风扇负载调整为适当的值。
![msi ai cooling feature](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-fully-control-ai-cooling-feature.jpg)
MSI 风扇接头可自动检测风扇将以直流或PWM哪种模式运行,视情况随时调整风扇转速和进行降噪。 Hysteresis也能使系统风扇的运转更为流畅,并确保系统随时处于安静的状态之中。
![msi auto detect your fan](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-auto-detect-fan.png)

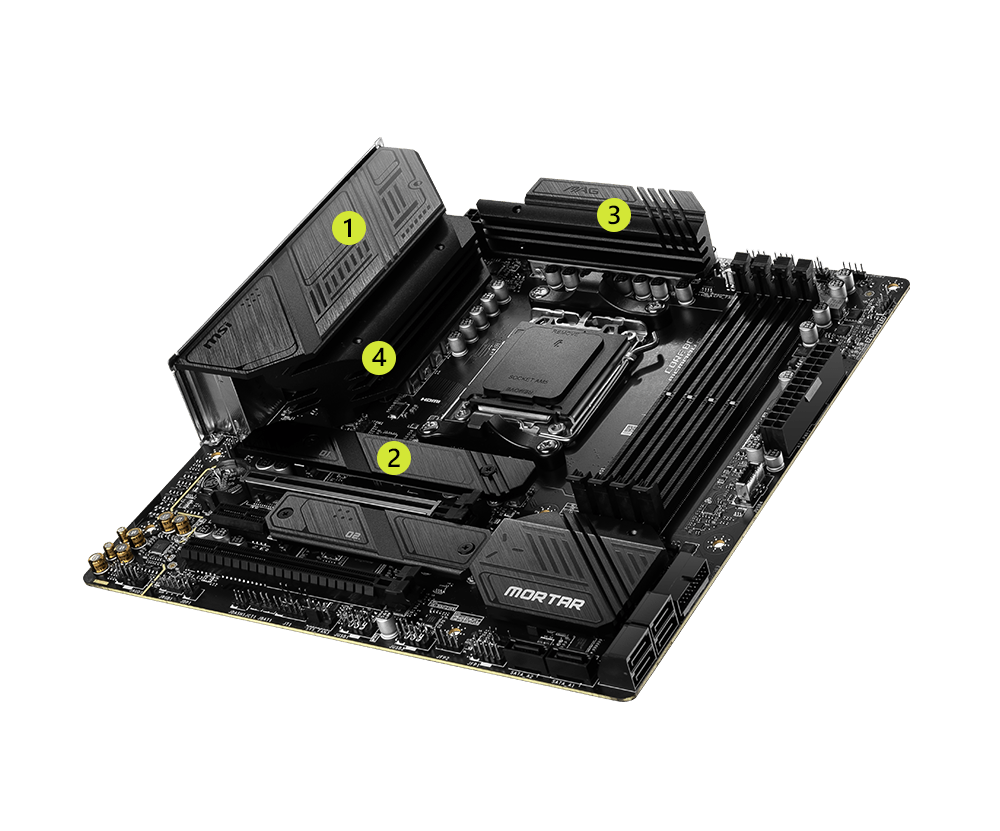

散热总览

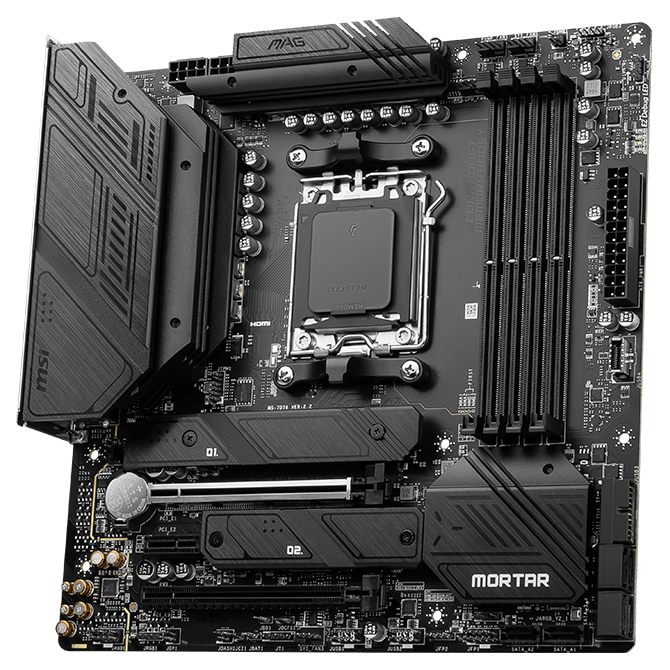

![MAG B650M MORTAR WIFI](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/msi-mag-b650m-mortar-wifi-cooliing-mobile.png)
散热片加大设计
MSI 加大散热片尺寸,确保在高负载环境下仍保有该有的性能表现。
M.2 Shield Frozr
让M.2 SSD 运作更快的时候也不降速,保护资料安全。
厚实VRM 散热片
VRM 散热片覆盖上方MOS ,有助于散热。
7W/mK 散热垫和额外
Choke 散热垫高品质7W/mK MOSFET 散热垫和并附加choke 散热垫,确保所有核心以高性能运行。
优化水冷
支援市场主流一体式和客制化水冷解决方案。专用的水泵供电接头可支援到最大3安培电流输出,让您可以完全控制水泵的速度。清楚标注的“ 禁制区”可以让玩家很简单又很安全地进行水冷设备的安装。
![msi x670 system cooling none atx](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-system-cooling-non-atx.png)
![msi x670 system cooling none atx support branding icons](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-system-cooling-support-branding-icons.png)
- STRUCTURE
- PCB DESIGN
- MORE FOR PERFORMANCE
12+2+1 DUET rAIL 电源系统
构建的高效率的VRM设计,可完全释放并维持最佳性能。结合8 + 4 pin 电源连结器和Core Boost 技术,PRO系列主板随时可以承受繁重的日常工作。
电源
电源
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/STRUCTURE-02.png)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/STRUCTURE-icon-01.jpg)
数位电源设计
采用数位化电源设计可以让传输到CPU的电流更快且减少讯号遗失的风险。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/STRUCTURE-03.png)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/STRUCTURE-icon-02.jpg)

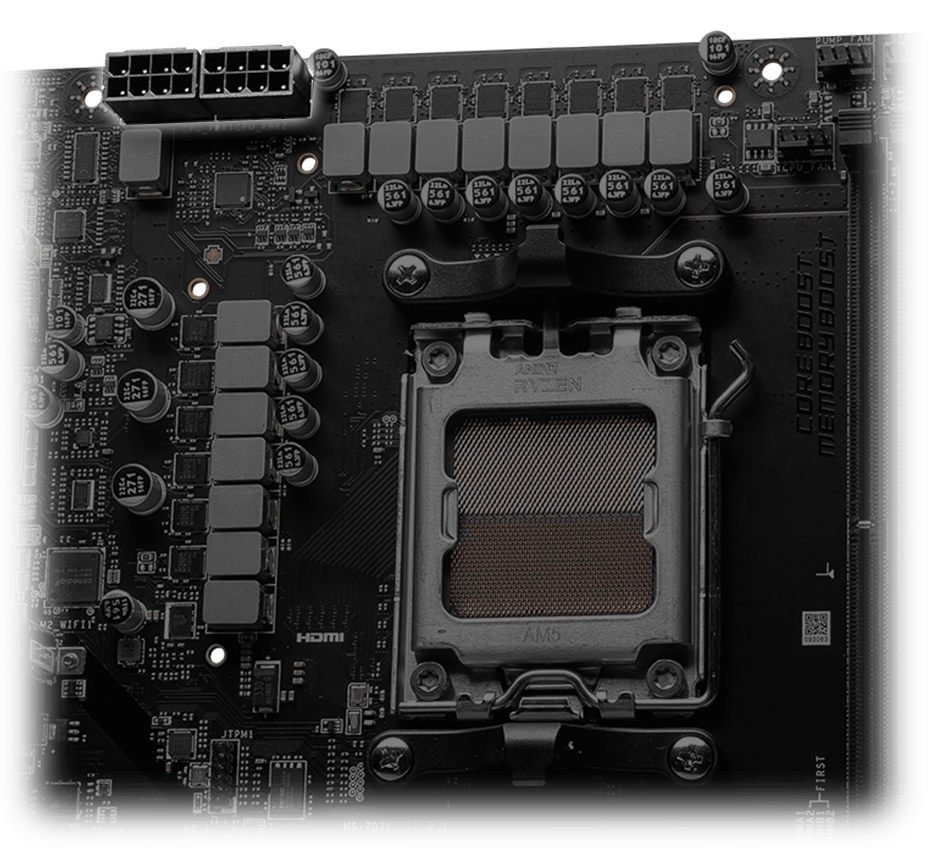

双电源连接埠
双8 pin 连接埠为多核CPU 超频提供充足的电源。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/STRUCTURE-01.png)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/STRUCTURE-icon-03.jpg)
CORE BOOST
优异配置不仅支援多核心处理器,也为您的处理器创造了完美的超频条件。
最佳PCB 解决方案
PCB 设计针对更高频宽与更快传输速度进行优化,让电路讯号传输更可靠稳定。
![OPTIMIZED PCB SOLUTION](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/pcb-img.jpg)
- 6 层PCB
- 2oz 厚度铜
效能优化
![Clear CMOS](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/AMD_600series_GameBoost.jpg)

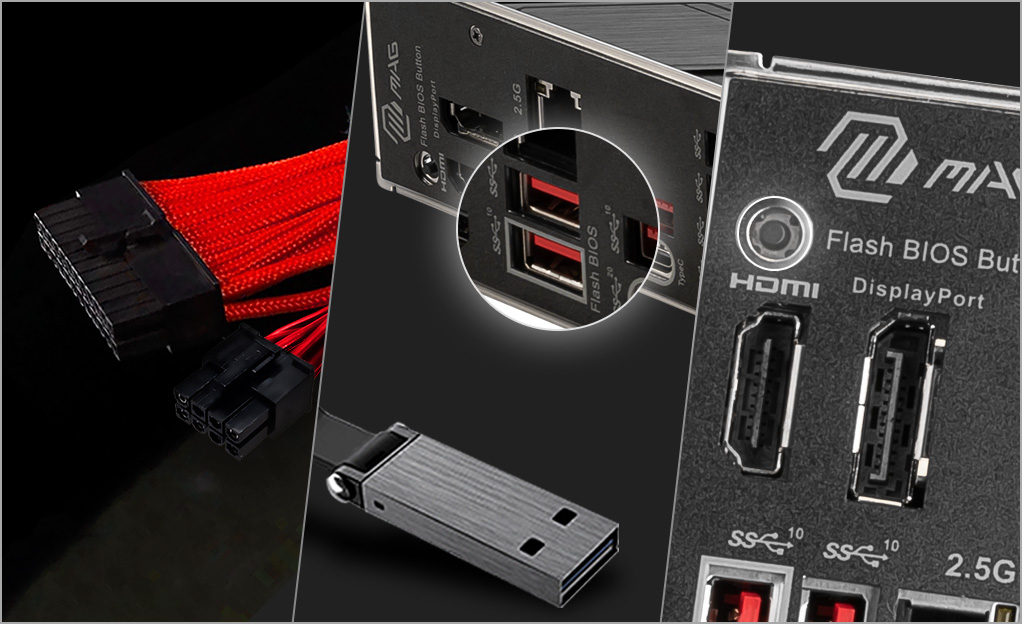

![Flash BIOS Button](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/morePerformance-img02.jpg)
![Dual BIOS](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/morePerformance-img03.jpg)
性能
- 扩充性
- 记忆体
- Bios & 软体
- LIGHTNING GEN 4
- STORAGE

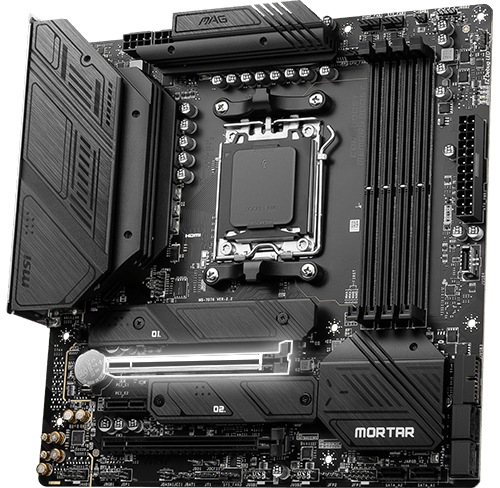

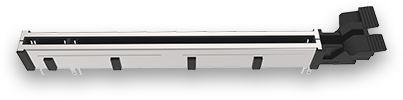

搭载钢铁装甲的Lightning Gen 4 PCI-e
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/PCIe-Gen-4.png)
LIGHTNING GEN 4 PCI-E
提供x16 插槽介面,频宽可达到64 GB/s,是上一代速度的两倍。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/smt-pcie-mb.png)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z690/meg_z690_unify/aw-icon.png)
![MSI STEEL ARMOR](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-steel-armor.png)
MSI PCI-E 插槽上搭载钢铁装甲,增加多处焊点来巩固并提供更强的保护力,以避免高端显示卡重量过重而造成PCI-E插槽的损坏。钢铁装甲还能保护PCI-E插槽的传输讯号免受电磁波的干扰,提供玩家更好的游戏体验。
因应未来的快速储存技术
MSI MPG 主板支援所有最新的储存技术标准,用户可以自由选择极速存储装置。更快速启动游戏、下载,比敌人更具优势。
2x
![lightening gen 4 m2](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/GEN4.png)
6x
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z490/A-Pro/storage-components.png)

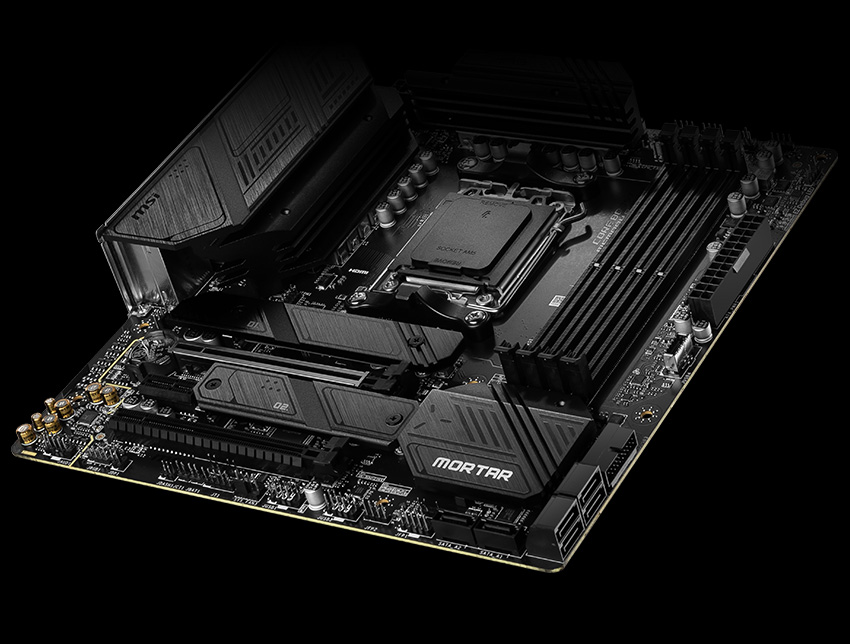

![MAG B650M MORTAR WIFI storage overview](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/storage-overview.jpg)
- DDR5
- EXPO

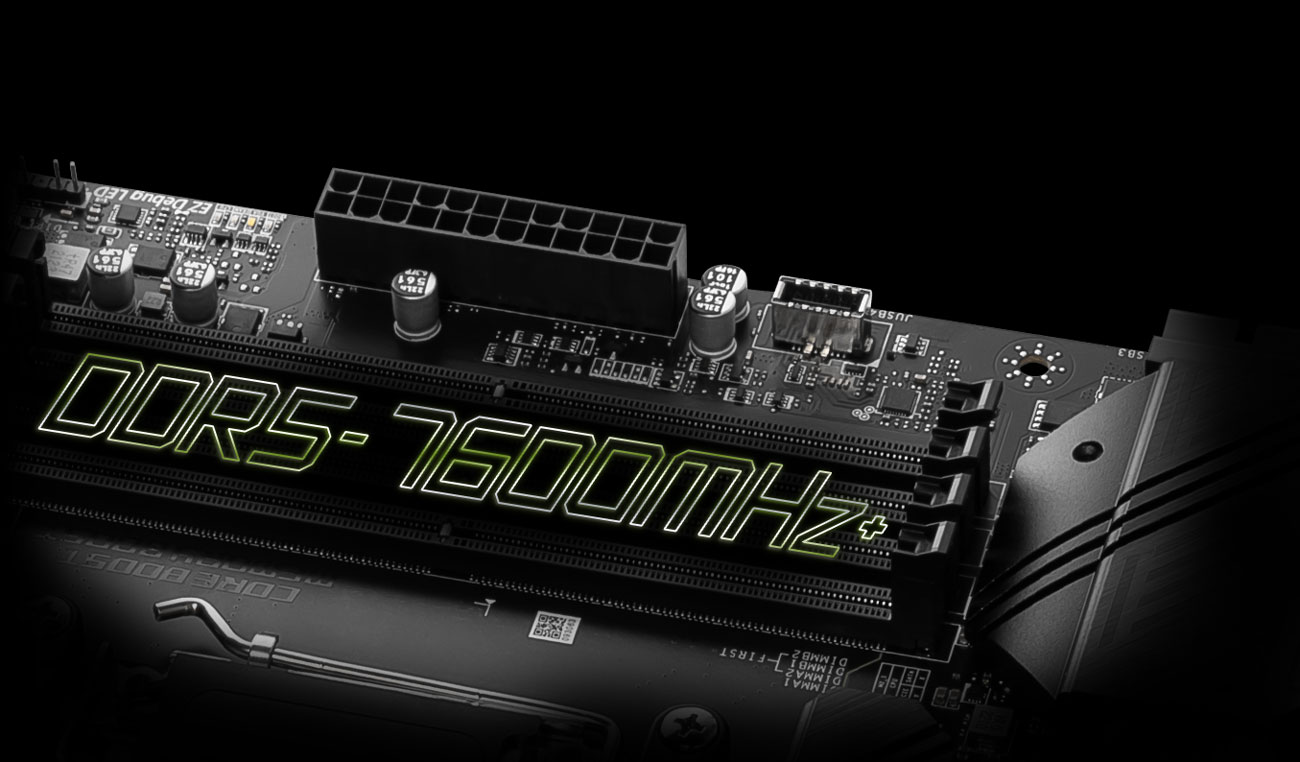

搭载SMT 插槽的DDR5 记忆体支援
最新的DDR5 记忆体支援,为DDR 性能迈进一大步! 结合独家SMT焊接工艺和MSI Memory Boost 技术,MAG B650M MORTAR WIFI 为您激发更强悍的记忆体性能。
先进的SMT焊接工艺(Surface Mount Technology),降低插槽焊点、电磁波和杂讯干扰的不良率,提供DDR5高时脉干净纯净的信号。
![LATEST DDR5 MEMORY WITH SMT SLOT](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/ddr4-ddr5.png)
![LATEST DDR5 MEMORY WITH SMT SLOT](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/ddr5-img.jpg)
使用EXPO 参数设定轻松超频
微星在极端条件下对主流记忆体品牌进行严苛测试,以确保系统在任何情况下都能稳定运作。并透过电源自动设置轻松启用EXPO 设定参数,以获得最佳的记忆体读取速度和稳定性。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B650I/MPG-B650I-EDGE-WIFI/expo-img.jpg)
- CLICK BIOS 5
- MSI CENTER
- AIDA64
- RESIZABLE BAR
CLICK BIOS 5
主机板所搭载的BIOS调整系统,方便使用,可以从中获得游戏性能、优异的使用效率,甚至挑战超频世界纪录!
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/meg/MEG-X670E-ACE/ez-mode.jpg)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/meg/MEG-X670E-ACE/advance-mode.jpg)
EXPO(专为超频设计的EXTENDED PROFILES )
可从预设的EXPO 资料夹中直接选择设定参数,让记忆体轻松自动超频,获得最好的相容性。
Game Boost
单一键即可让CPU快速超频,提高性能。
M-FLASH
从CMOS设定,即可在几分钟内刷新或升级BIOS,轻松方便。
HARDWARE MONITOR
可即时性观看您的主要硬体资讯,包括温度、记忆体容量,时脉速度和电压。
MEMORY TRY IT
从系统记忆体中获得极致速度,以及更高性能。
SEARCH & FAVORITES
右上角的搜寻和收藏选项可让您快速进入BIOS选单
MSI CENTER
MSI 全新的MSI Center 将MSI 所有软体整合到一个应用程序中。进一步控制主机板功能,以释放无限可能性。
![Mystic Light](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-center-msytic-light.png)
![True Color](https://storage-asset.msi.com/global/picture/image/feature/mb/Z590/MPG/gaming-carbon-wifi/msi-center-true-color.jpg)
![User Scenario](https://storage-asset.msi.com/global/picture/image/feature/mb/Z590/MPG/gaming-carbon-wifi/msi-center-user-scenario.jpg)
![Hardware Monitoring](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-center-Hardware-Monitoring.jpg)
![Profile Setting](https://storage-asset.msi.com/global/picture/image/feature/mb/Z590/MPG/gaming-carbon-wifi/msi-center-oc-setting.jpg)
![Fan Center](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-center-total-fan-control.jpg)
![System Diagnosis](https://storage-asset.msi.com/global/picture/image/feature/mb/Z690/meg_z690_unify/msi-center-System-Diagnosis.jpg)
AIDA64 EXTREME 独家版本
微星主机板提供AIDA64 Extreme 独家版本60 天免费试用。 AIDA64 Extreme 是一款电脑软硬体侦测诊断软体。通过该软体,您可以在电脑上监控作业系统、主机板、CPU、BIOS…等相关详细资讯,并可储存CSV、HTML 等多种格式文件。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/aida64-img.jpg)
RESIZABLE BAR
Resizable BAR (Re-Size BAR)是一项进阶PCI Express 功能,可以让CPU一次完整存取GPU的记忆体,减少与GPU的来回沟通,进而改善许多游戏的效能。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/Resizable-BAR-Technology_Other.jpg)
连接性
- 音效
- mystic light
- 网路连线
- Audio Boost 5
audio boost 5
- 高清晰度ALC4080 音频处理器
- 高品质音效电容
- 高品质音效S/PDIF 连接埠
- AUDIO 线路独立区域
- DE-POP 保护机制
- Synchronize
轻松延伸您的RGB体验
利用Mystic Light 扩充插槽,可以增添RGB 灯条或其他RGB装置设备。 Mystic Light 软体直觉式介面,更方便您操作控制,无需再另外单购RGB控制器。
- 2.5G Lan & Wi-Fi 6E

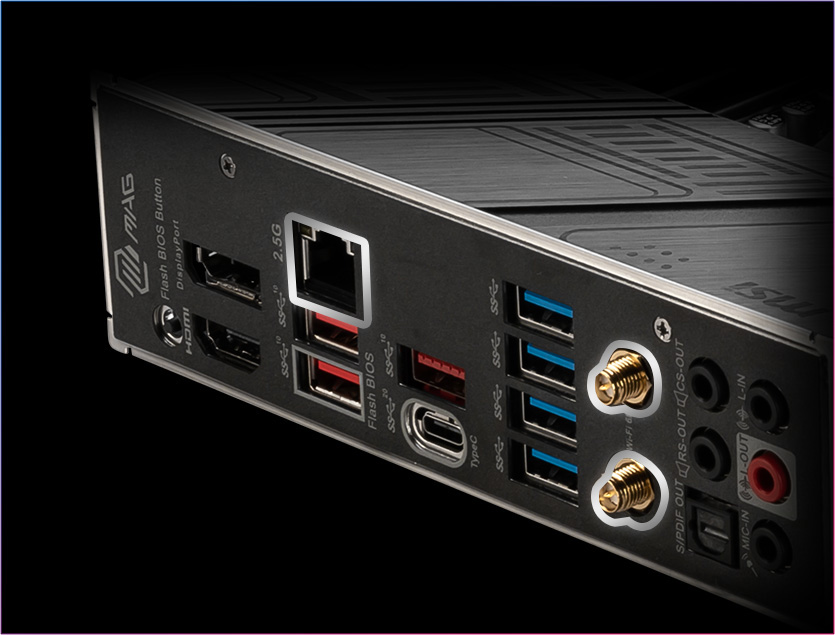

高频宽、低延迟网路连线
MSI 配置优质网路解决方案,更快的惊人传输速度,彻底满足玩家的苛刻要求。
![msi lan 2.5g icon](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/lan-25g-icon.png)
![mai 6E wifi icon](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/lan-6e-wifi-icon.png)
![msi b650m lan 2.5g wifi low-latency network with natenna](https://storage-asset.msi.com/global/picture/image/feature/mb/B650M/MAG-B650M-MORTAR-WIFI/lan-b650m-mb-wifi-high.jpg)
- Wi-Fi 6E
- Bluetooth 5.2
- 2.5G LAN

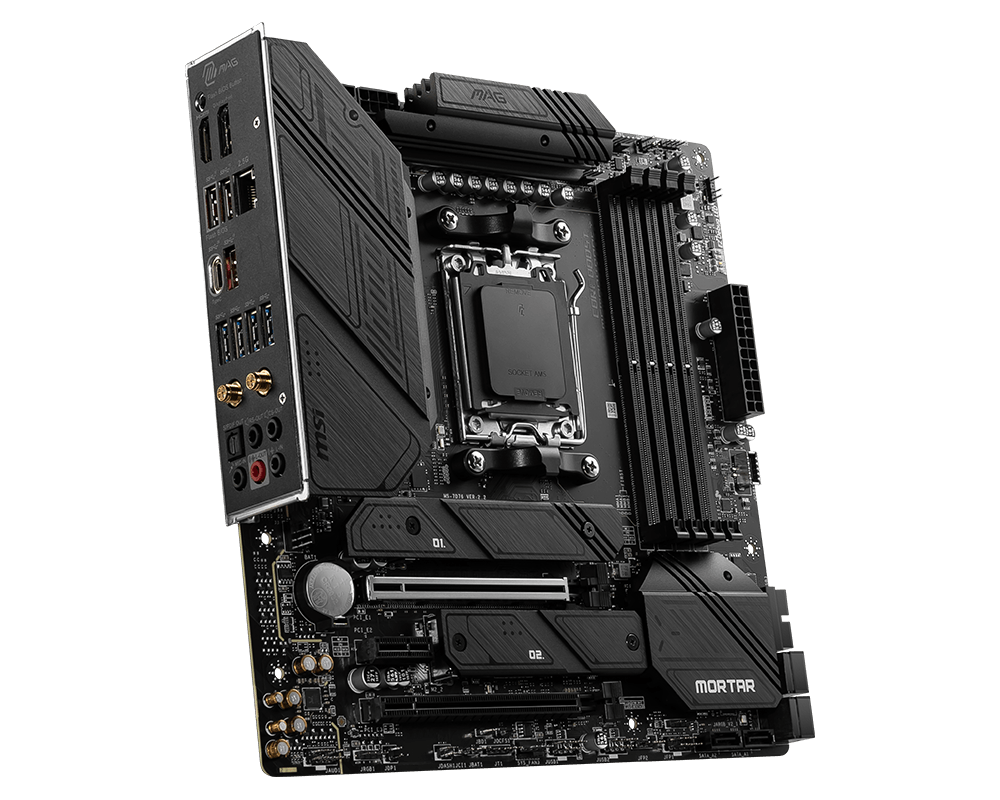

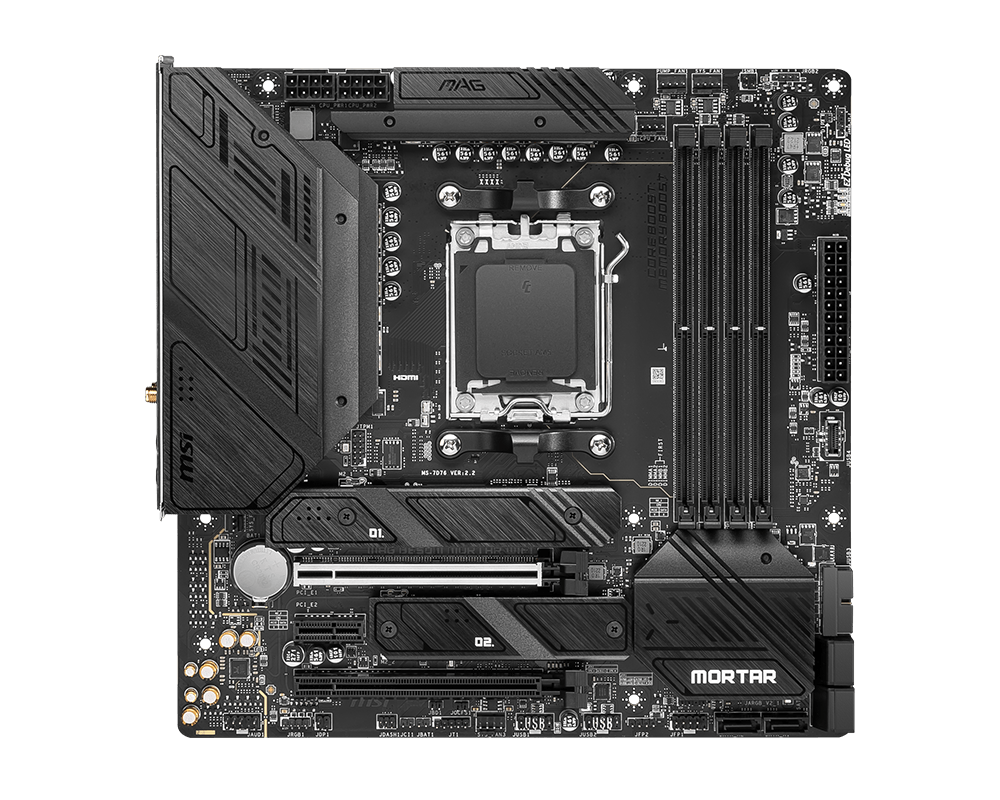

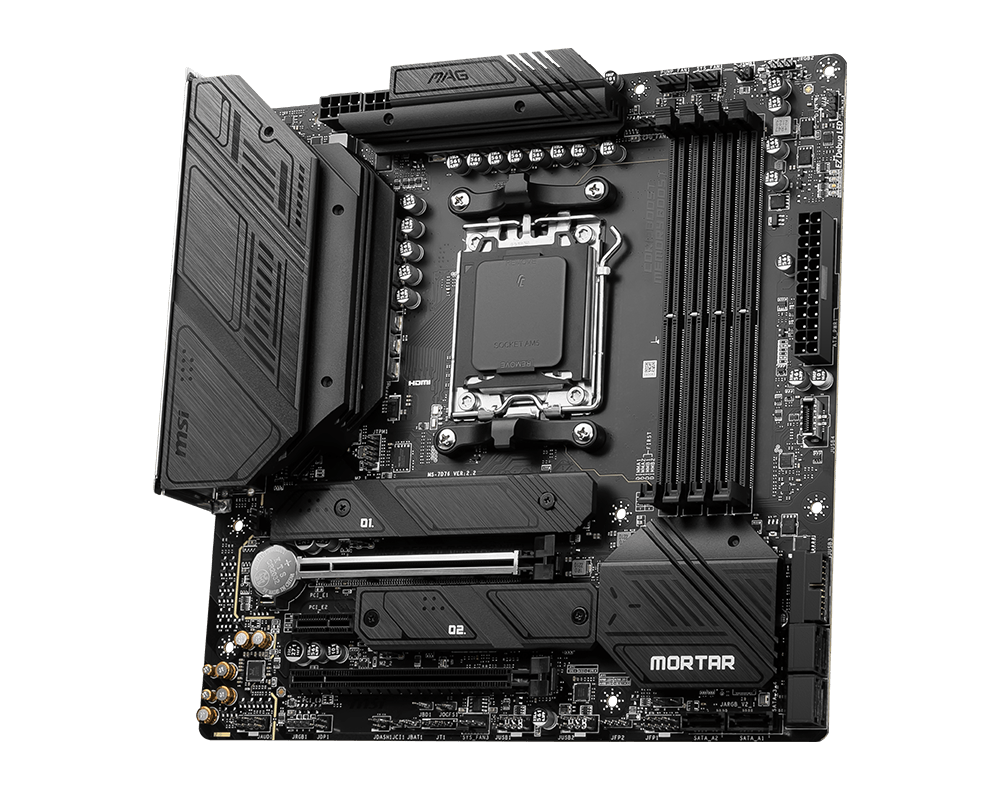

MAG B650M MORTAR WIFI
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 6400+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
