团结合击

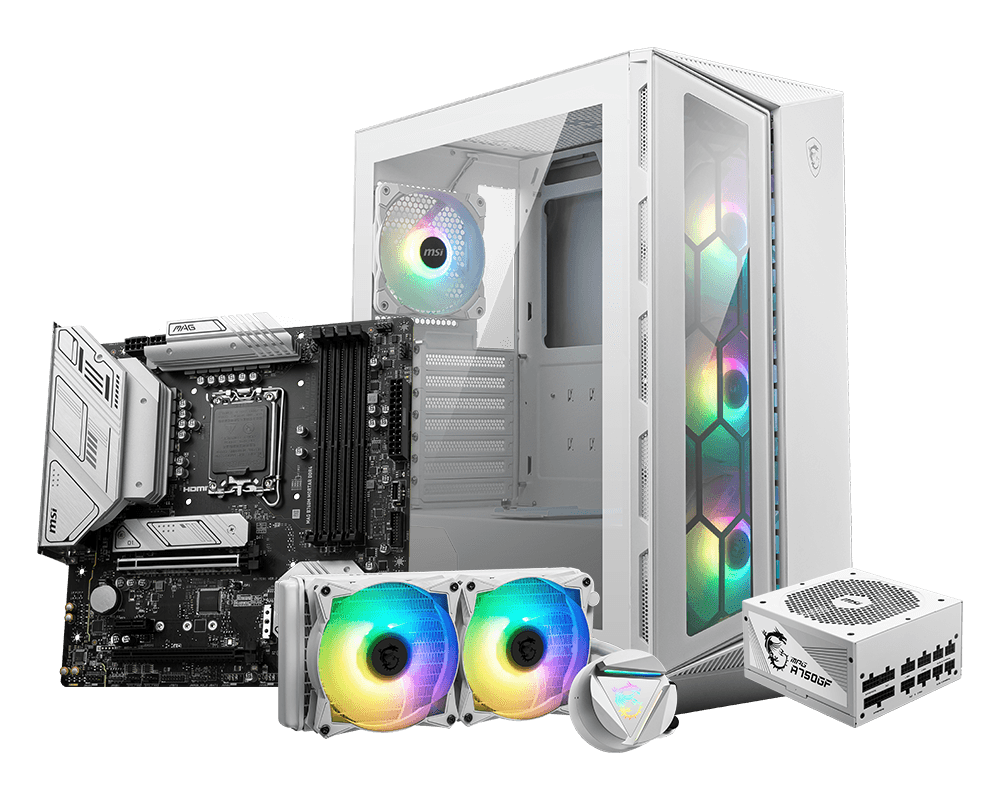

MAG 系列主机板为荣誉而生,与玩家一同并肩作战。 MSI主机板增添浓浓军事元素,提供坚实稳定最佳平台。

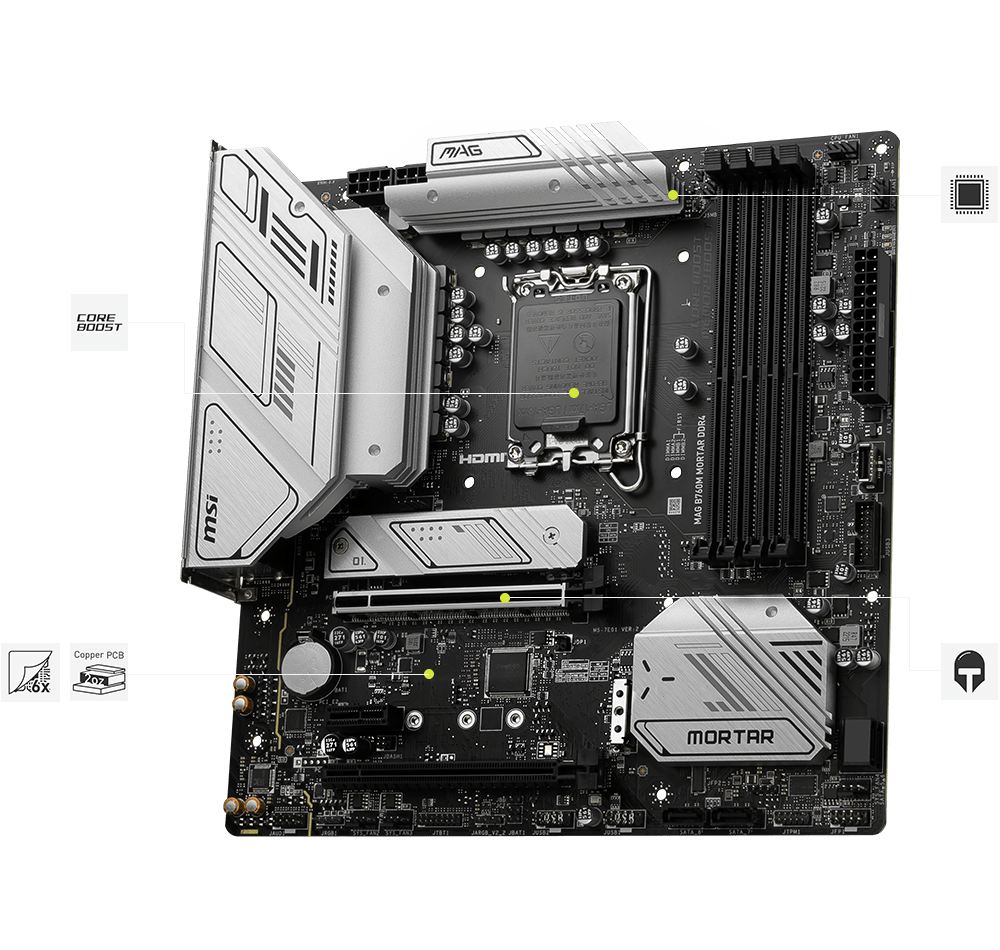

独家技术
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B760M/mag-b760m-mortar-ddr4/mag_b760m_mortar_ddr4-block01.png)
![Core Bost Technology](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_core-boost.png)
Core Boost 技术
![6 Layer PCB with 2oz Thickened Copper](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_6-layer-PCB.png)
![6 Layer PCB with 2oz Thickened Copper](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_2oz_thickened.png)
6 层伺服器等级加入2oz厚度铜
![Digital PWM](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_Digital-PWM.png)
数位PWM
![Steel Armor](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_Steel-Armor-14.png)
钢铁装甲

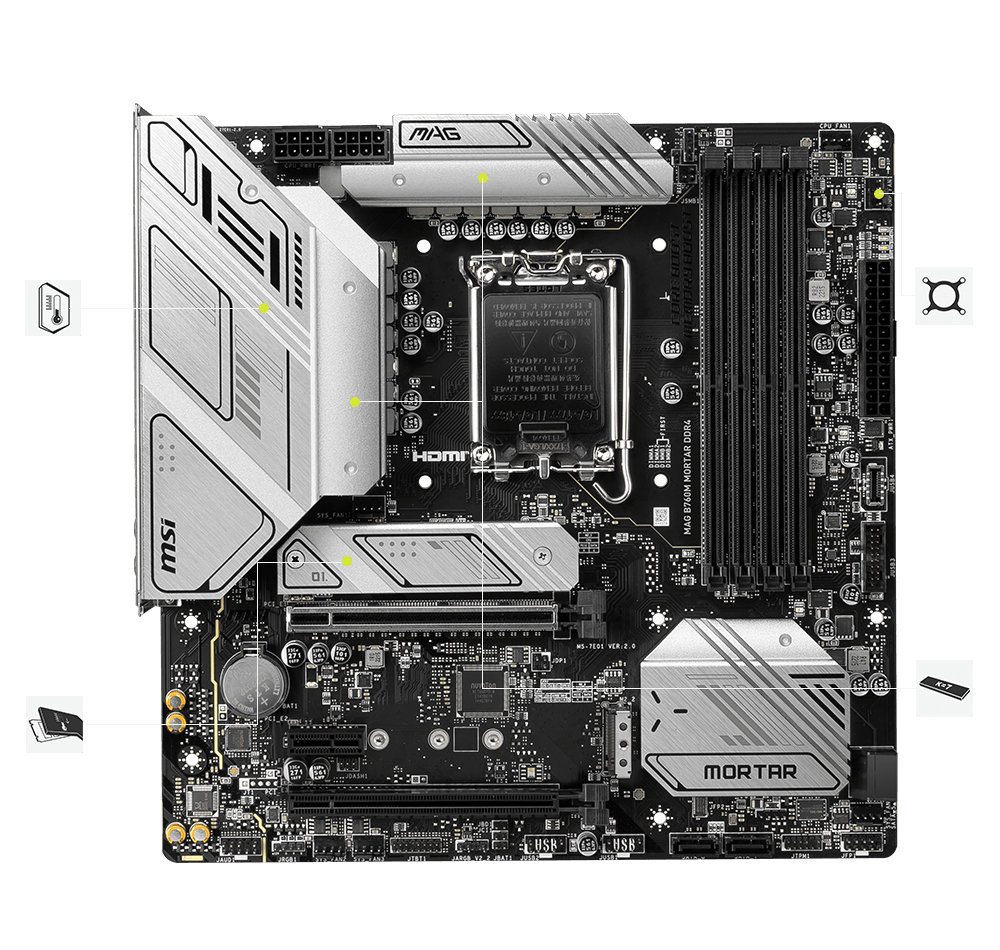

散热解决方案
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B760M/mag-b760m-mortar-ddr4/mag_b760m_mortar_ddr4-block02.png)
![Extended Heatsink](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_extended-heatsink.png)
加大散热片
![M.2 Shield Frozr](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_M_2-Shield-Frozr.png)
M.2 Shield Frozr
![Pump Fan Support](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_pump-fan-support.png)
帮浦风扇支援
![Heatsink with 7W/mK Thermal Pad](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_k7.png)
搭载7W/mK 导热垫的散热片

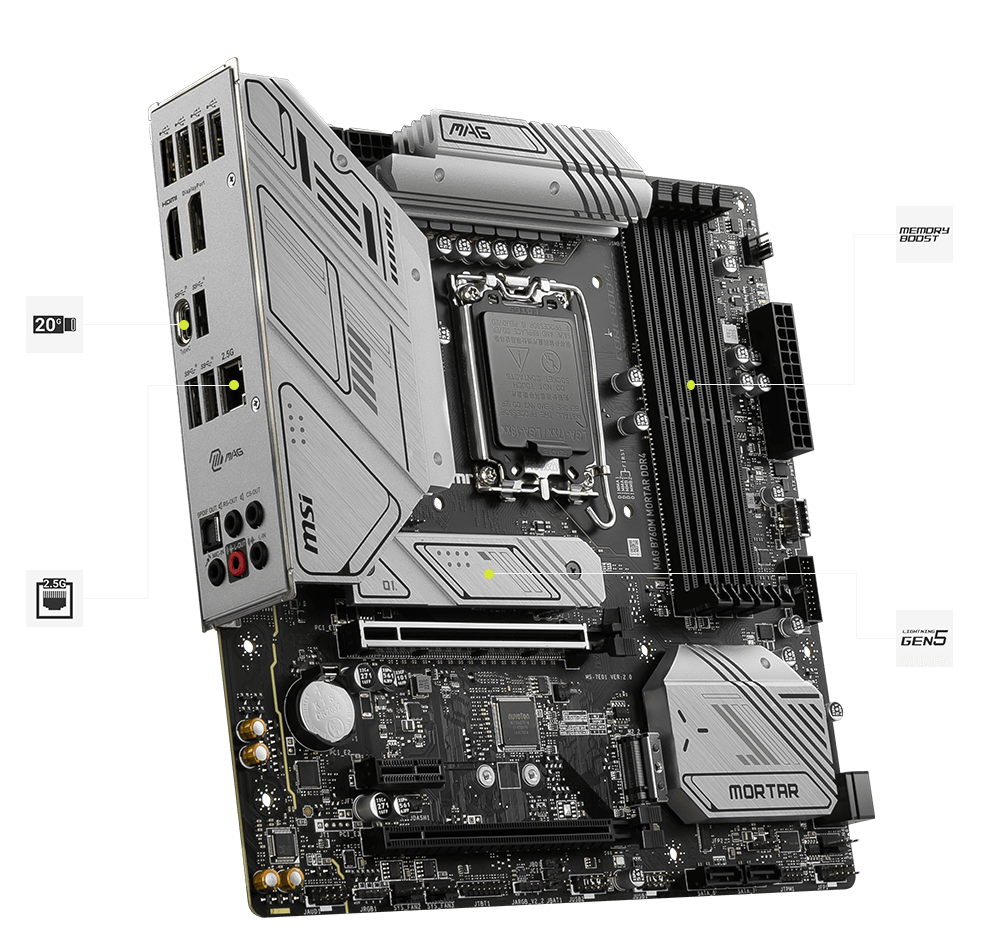

高速传输
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B760M/mag-b760m-mortar-ddr4/mag_b760m_mortar_ddr4-block03.png)
![Lightning USB 20G](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_typec-20G.png)
Lightning USB 20G
![2.5G Network Solution](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_2_5g-lan.png)
2.5G 网路解决方案
![Memory Boost](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_memory_boost.png)
Memory Boost
![Lightning Gen 5](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_lightning_gen_5.png)
Lightning Gen 5
硬件
- 散热
- 供电解决方案
- 友善设计
- 整体散热设计
- 水冷散热

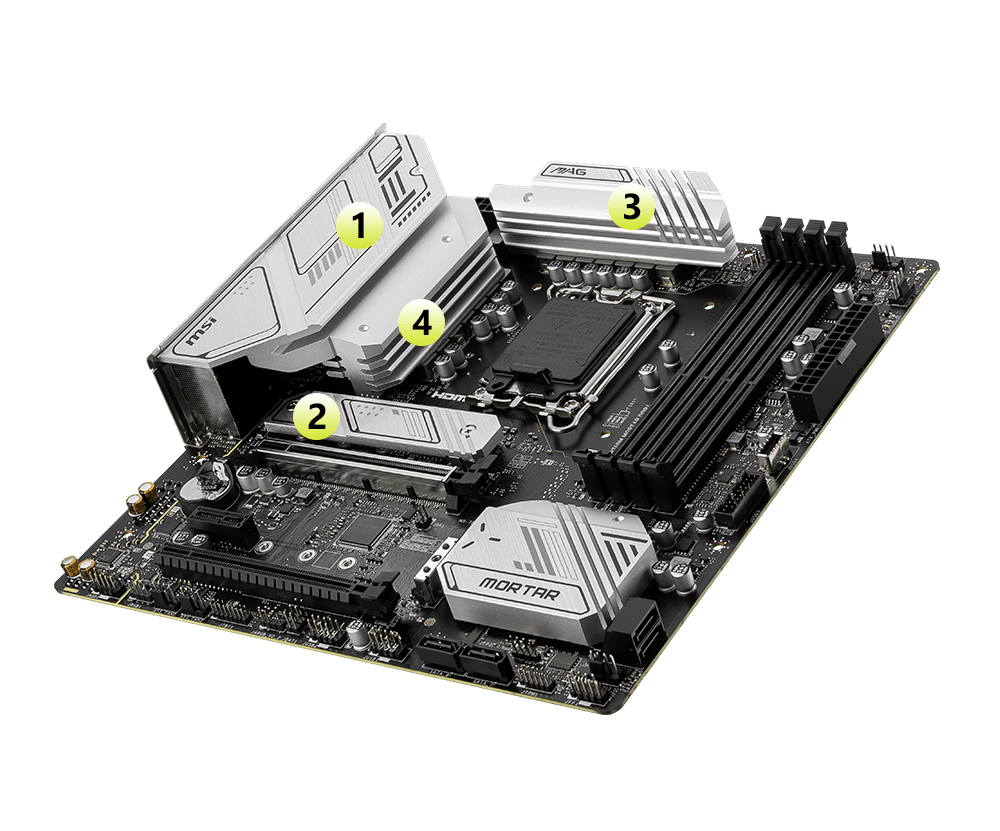

整体散热设计
![msi MAG B760M MORTAR DDR4 cooling overview mobile](https://storage-asset.msi.com/global/picture/image/feature/mb/B760M/mag-b760m-mortar-ddr4/mag_b760m_mortar_ddr4-cooliing-mobile.png)
散热片加大设计
MSI 加大散热片尺寸,确保在高负载环境下仍保有该有的性能表现。
M.2 Shield Frozr
确保M.2 SSD 快速运转时,避免降速,进而确保资料安全保存。
厚实VRM 散热片
VRM 散热片覆盖上方MOS ,有助于散热。7W/mK 散热垫和额外choke 散热垫
高品质7W/mK MOSFET 散热垫和并附加choke 散热垫,确保所有核心以高性能运行。
优化水冷
支援市场主流一体式和客制化水冷解决方案。专用的水泵供电接头可支援到最大3安培电流输出,让您可以完全控制水泵的速度。清楚标注的“ 禁制区”可以让玩家很简单又很安全地进行水冷设备的安装。
![msi x670 system cooling none atx](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-system-cooling-non-atx.png)
![msi x670 system cooling none atx support branding icons](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-system-cooling-support-branding-icons.png)
- PCB 设计
- 效能优化

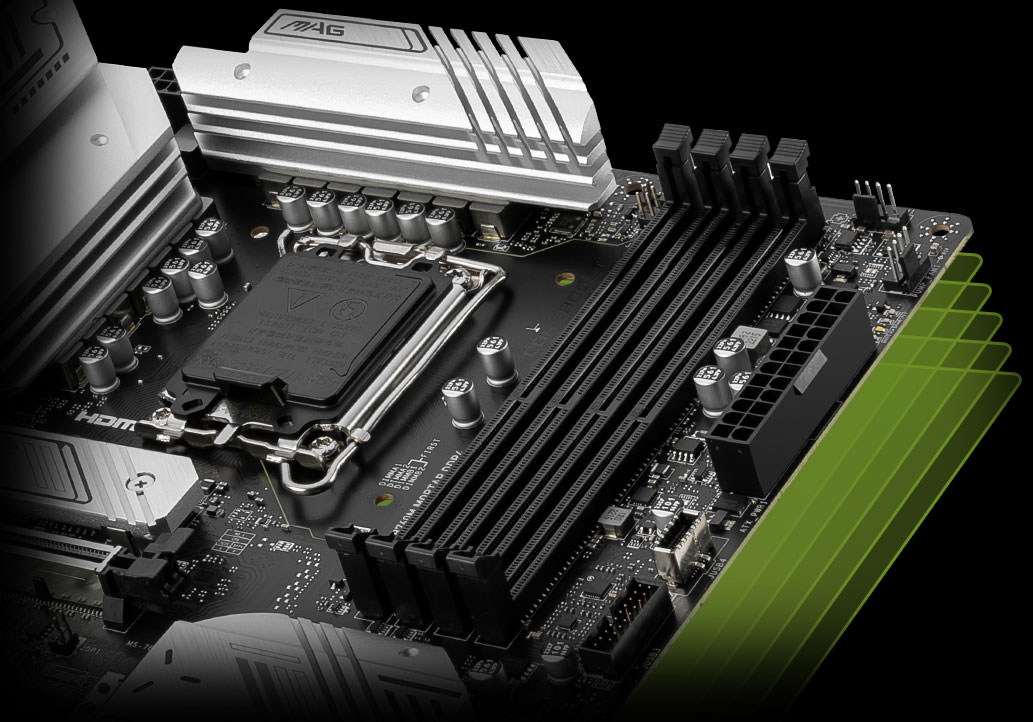

最佳PCB 解决方案
PCB 设计针对更高频宽与更快传输速度进行优化,让电路讯号传输更可靠稳定。
![OPTIMIZED PCB SOLUTION](https://storage-asset.msi.com/global/picture/image/feature/mb/B760M/mag-b760m-mortar-ddr4/pcb-img.jpg)
- 6 层PCB
- IT150GS 伺服器等级PCB 材质
- 2oz 厚度铜
效能优化
![Flash BIOS Button](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/morePerformance-img02.jpg)
![Dual BIOS](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/morePerformance-img03.jpg)
- EZ M.2 CLIP
- 驱动安装
- 更多友善设计
EZ M.2 CLIP
Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.
![EZ M.2 CLIP](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/M2_img03-2.png)
![EZ M.2 CLIP](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/M2_img03.png)
驱动安装
一连接到网路,MSI Driver Utility Installer 将自动检测并显示合适的驱动程序和实用程序,您只需点击几下即可下载和安装了解更多
* 请确保连接到网路,否则Driver Utility Installer 不会自动启动。
* MSI Driver Utility Installer 将会内建在Windows 11 build 22H2 中。
![MSI DRIVER UTILITY INSTALLER (DUI)](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/driver-installer-img.png)
更多友善设计
![WINDOWS 11 CERTIFIED](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/more-Diy-img01.jpg)
![MSI MB](https://storage-asset.msi.com/global/picture/image/feature/mb/B760M/mag-b760m-mortar-ddr4/pre-installed-pd.png)
![PRE-INSTALLED IO background](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/pre-installed-bg.jpg)

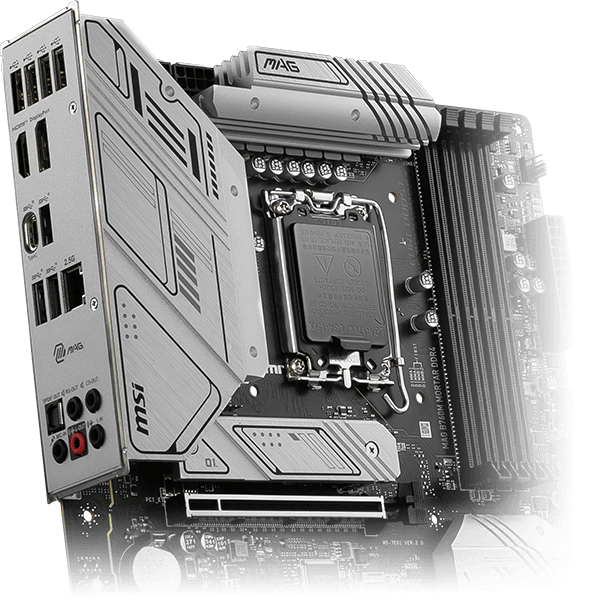

预装好的I / O上盖,使您在安装过程更轻松、更安全。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/more-Diy-img04.jpg)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/more-Diy-img06.jpg)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/more-Diy-img08.jpg)
* 将主机板装入机壳时,请确保移除不必要的安装支架。
性能
- 扩充性
- 记忆体
- Bios & 软体
- LIGHTNING GEN 5 PCI-E
- 储存
- USB
搭载钢铁装甲的Lightning Gen 5 PCI-e
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/PCIe-Gen-5.png)
LIGHTNING GEN 5 PCI-E
提供x16 插槽介面,频宽可达到128 GB/s,是上一代速度的两倍。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z690/meg_z690_unify/SMT-PCIE-5_0-Slot.jpg)

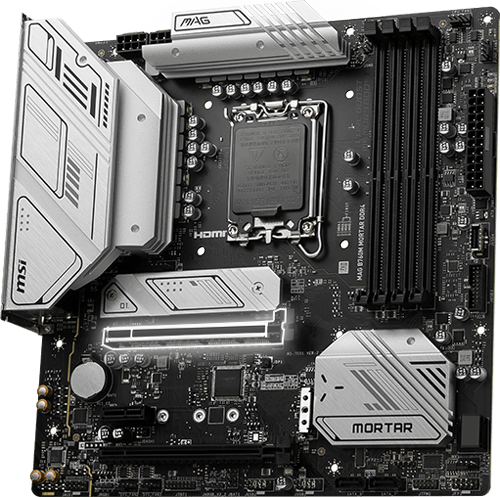

PCIE 5.0 插槽焊接工艺
PCI-E 插槽采用先进的SMT 焊接工艺(Surface Mount Technology),降低杂讯干扰和电噪声、充分支援更高频宽和传输速度的PCI-E 5.0 讯号。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B760M/mag-b760m-mortar-ddr4/smt-pcie-mb.png)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z690/meg_z690_unify/aw-icon.png)
![MSI STEEL ARMOR](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-steel-armor.png)
主机板上增加多处焊点进行强化,以支撑沉重的显示卡重量。

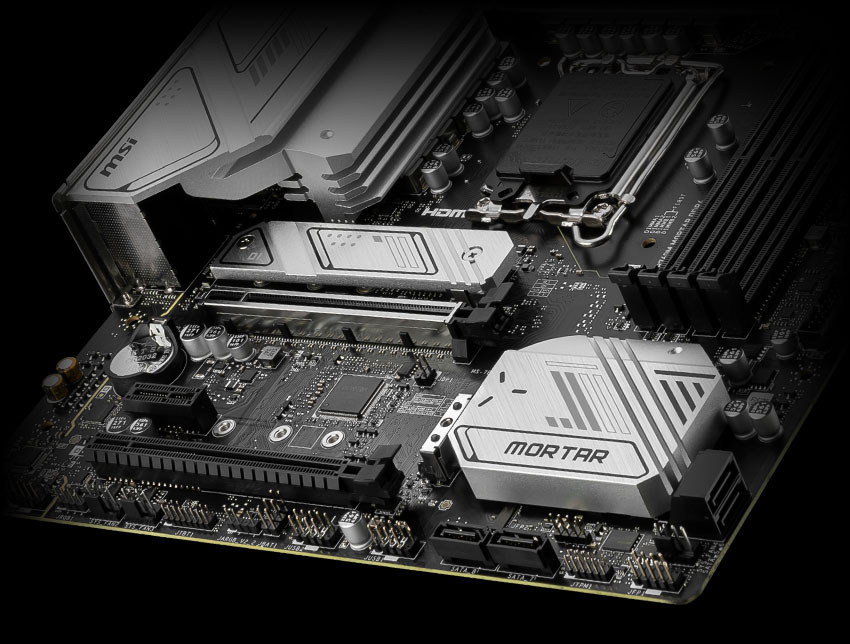

因应未来的快速储存技术
MSI MAG 主板支援所有最新的储存技术标准,用户可以自由选择极速存储装置。更快速启动游戏、下载,比敌人更具优势。
2x
![lightening gen 4 m2](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/GEN4.png)
4x
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z490/A-Pro/storage-components.png)
![storage overview](https://storage-asset.msi.com/global/picture/image/feature/mb/B760M/mag-b760m-mortar-ddr4/storage-overview.jpg)

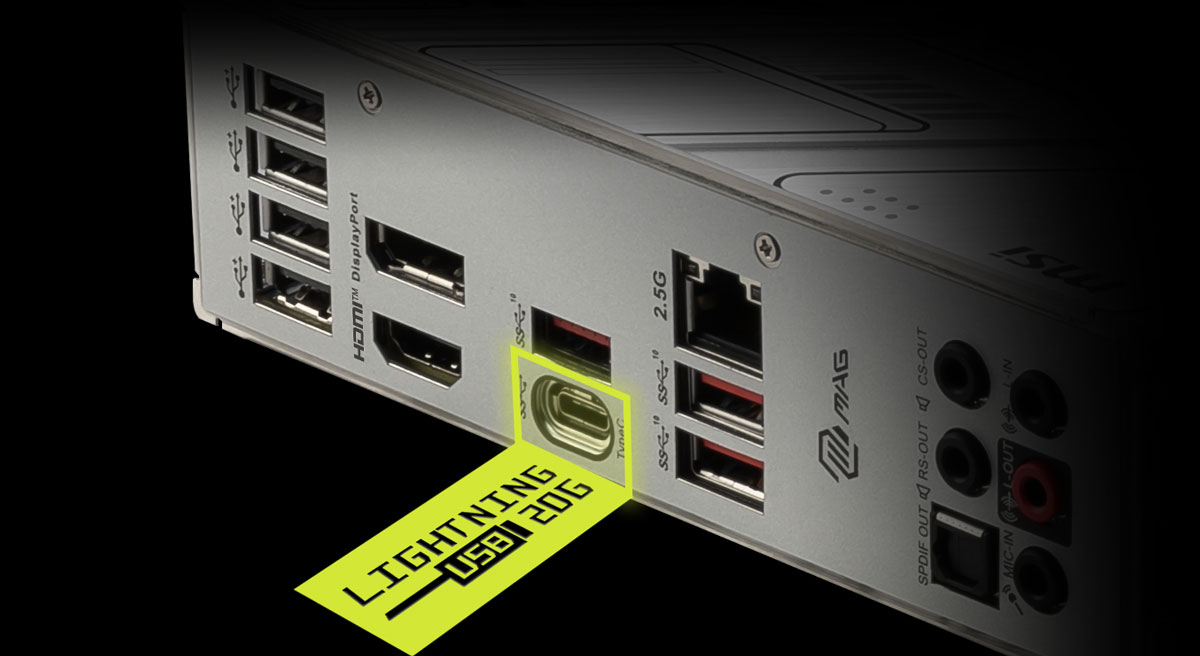

双频宽采用LIGHTNING USB 3.2 GEN 2x2 20G
USB 3.2 前所未有的快速! MAG B760 系列主板提供多种选择可增强USB 装备的传输速度,同时搭载后置USB Type-C,传输速度更高达20Gb/s。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B760M/mag-b760m-mortar-ddr4/lightning-usb-20g-mag.jpg)
USB TYPE-C
MSI 电竞主机板支援前置USB Type-C,相容最新最快速的USB 装备。再搭配微星机壳,更好的整合性,将带给您最方便的使用体验。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/usb-mpg-1.jpg)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/usb-mpg-2.jpg)
- ENHANCEMENT
- XMP

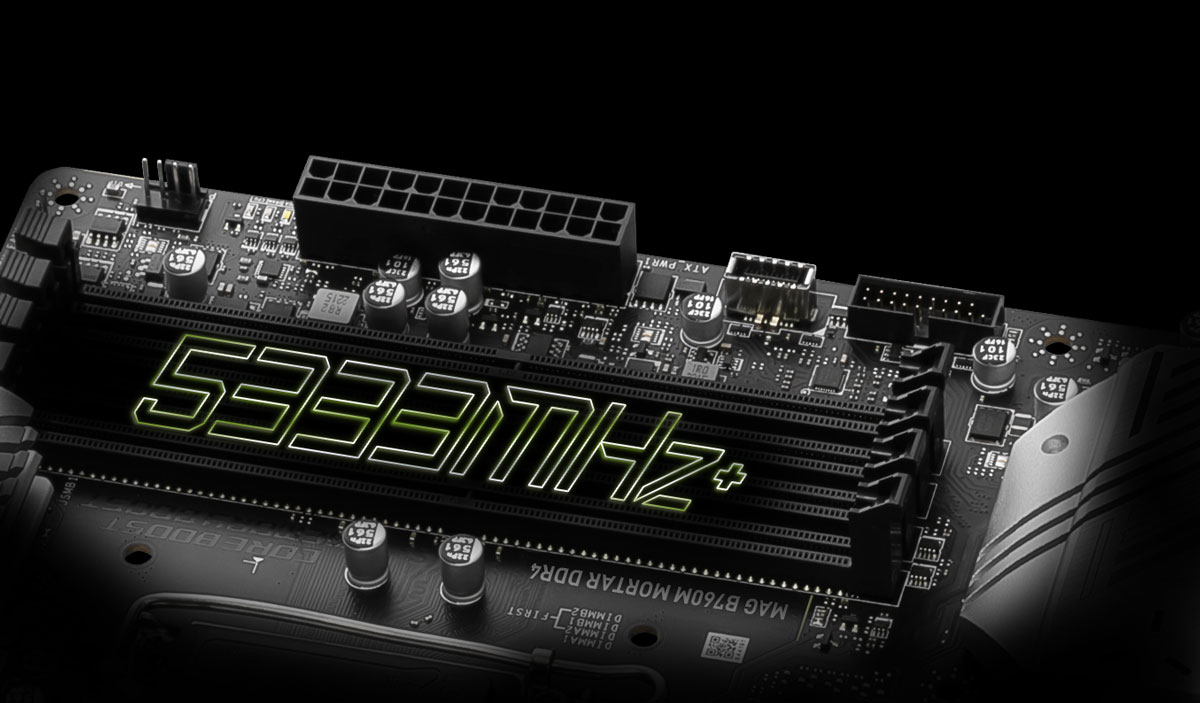

DDR 性能大跃进
MSI OC LAB 致力于极限超频领域不断精进。 XMP记忆体配置在B760性能和效率方面有更长足的进步。轻松透过自动电源设置启动XMP,可获得最佳记忆体速度和稳定度。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B760M/mag-b760m-mortar-ddr4/memory-ddr4.jpg)
XMP PROFILE 简易超频
BIOS里内建EASY XMP (Extreme Memory Profiles) ,经由MSI OC lab 测试认证,更容易自动启用电源设定,以获得最佳的记忆体存取速度和稳定性。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B760M/mag-b760m-mortar-ddr4/XMP-B760_D4.jpg)
- MSI CENTER
- CLICK BIOS 5
- AIDA64
- RESIZABLE BAR
MSI CENTER
MSI 全新的MSI Center 将MSI 所有软体整合到一个应用程序中。进一步控制主机板功能,以释放无限可能性。
![Mystic Light](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-center-msytic-light.png)
![True Color](https://storage-asset.msi.com/global/picture/image/feature/mb/Z590/MPG/gaming-carbon-wifi/msi-center-true-color.jpg)
![User Scenario](https://storage-asset.msi.com/global/picture/image/feature/mb/Z590/MPG/gaming-carbon-wifi/msi-center-user-scenario.jpg)
![Hardware Monitoring](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-center-Hardware-Monitoring.jpg)
![Profile Setting](https://storage-asset.msi.com/global/picture/image/feature/mb/Z590/MPG/gaming-carbon-wifi/msi-center-oc-setting.jpg)
![Fan Center](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-center-total-fan-control.jpg)
![System Diagnosis](https://storage-asset.msi.com/global/picture/image/feature/mb/Z690/meg_z690_unify/msi-center-System-Diagnosis.jpg)
CLICK BIOS 5
主机板所搭载的BIOS调整系统,方便使用,可以从中获得游戏性能、优异的使用效率,甚至挑战超频世界纪录!
![MSI EZ Mode Pro Series](https://storage-asset.msi.com/global/picture/image/feature/mb/B760M/mag-b760m-mortar-ddr4/EZ_Intel-B760-D4.jpg)
![MSI Advanced Mode Pro series](https://storage-asset.msi.com/global/picture/image/feature/mb/B760M/mag-b760m-mortar-ddr4/advanced_Intel-B760-D4.jpg)
XMP
从预设的XMP资料夹中选择,并可自动超频相容的DDR记忆体。
VMD (Volume Management Device)
可透过PCIe汇流排直接控制与管理NVME SSD,而不需额外的硬体交换
M-FLASH
从CMOS设定,即可在几分钟内刷新或升级BIOS,轻松方便。
HARDWARE MONITOR
可即时性观看您的主要硬体资讯,包括温度、记忆体容量,时脉速度和电压。
MEMORY TRY IT
从系统记忆体中获得极致速度,以及更高性能。
SEARCH & FAVORITES
右上角的搜寻和收藏选项可让您快速进入BIOS选单。
AIDA64 EXTREME 独家版本
微星主机板提供AIDA64 Extreme 独家版本60 天免费试用。 AIDA64 Extreme 是一款电脑软硬体侦测诊断软体。通过该软体,您可以在电脑上监控作业系统、主机板、CPU、BIOS…等相关详细资讯,并可储存CSV、HTML 等多种格式文件。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/aida64-img.jpg)
RESIZABLE BAR
Resizable BAR (Re-Size BAR)是一项进阶PCI Express 功能,可以让CPU一次完整存取GPU的记忆体,减少与GPU的来回沟通,进而改善许多游戏的效能。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/Resizable-BAR-Technology_Other.jpg)
连接性
- 音效
- mystic light
- 网路连线
- Audio Boost
Audio boost
- 高清晰度音频处理器
- 高品质音效电容
- 高品质音效连接埠
- AUDIO 线路独立区域
- DE-POP 保护机
- Synchronize
轻松延伸您的RGB体验
利用Mystic Light 扩充插槽,可以增添RGB 灯条或其他RGB装置设备。 Mystic Light 软体直觉式介面,更方便您操作控制,无需再另外单购RGB控制器。
- 2.5G LAN

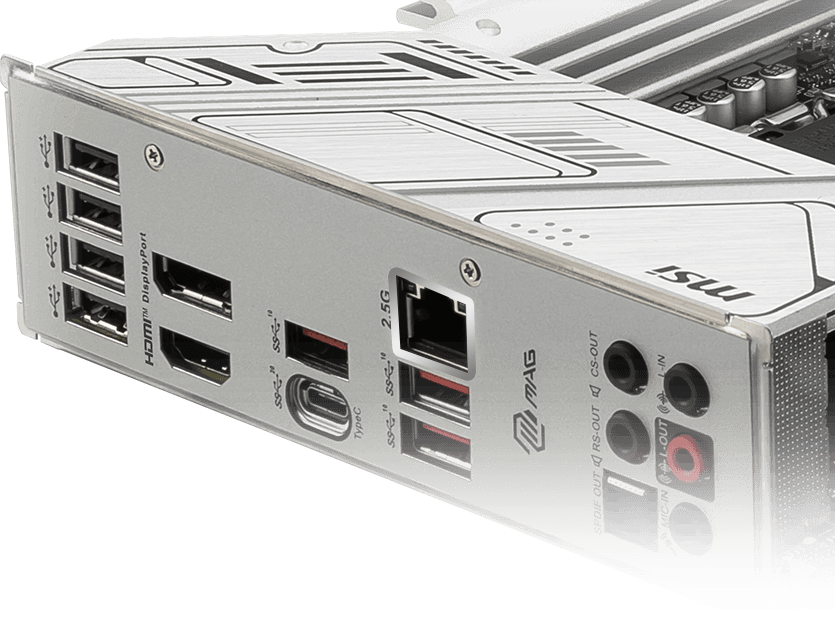

高频宽、低延迟网路连线
MSI 配置优质网路解决方案,更快的惊人传输速度,彻底满足玩家的苛刻要求。
![msi lan 2.5g icon](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/lan-25g-icon.png)
![lan 2.5g wifi low-latency network](https://storage-asset.msi.com/global/picture/image/feature/mb/B760M/mag-b760m-mortar-ddr4/lan-b760-mb-wifi-low.png)
- 2.5G LAN

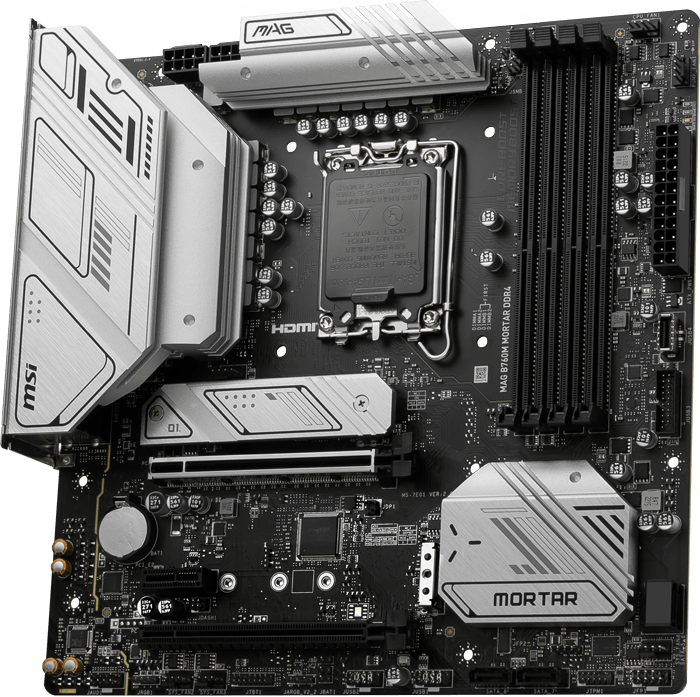

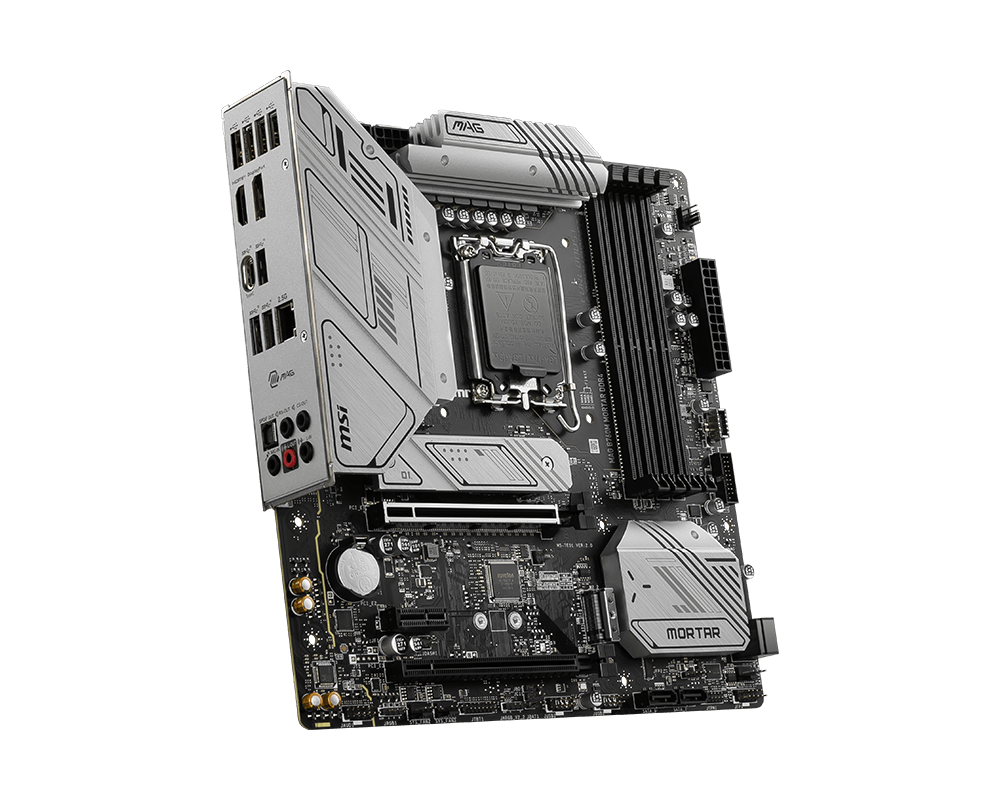

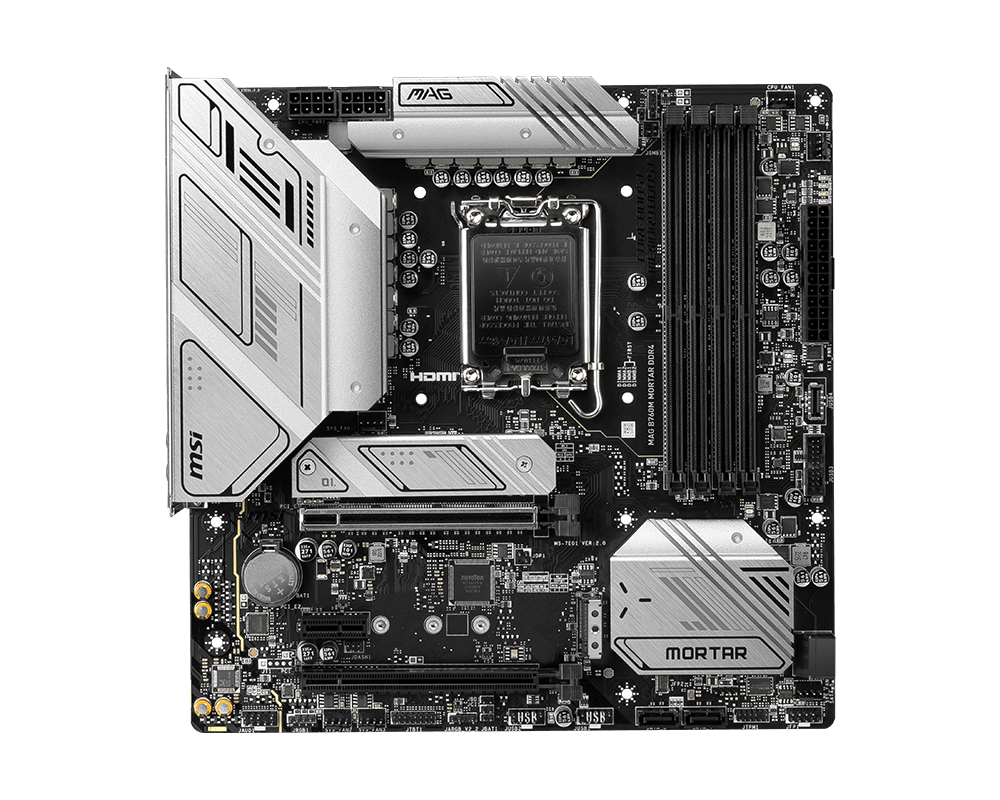

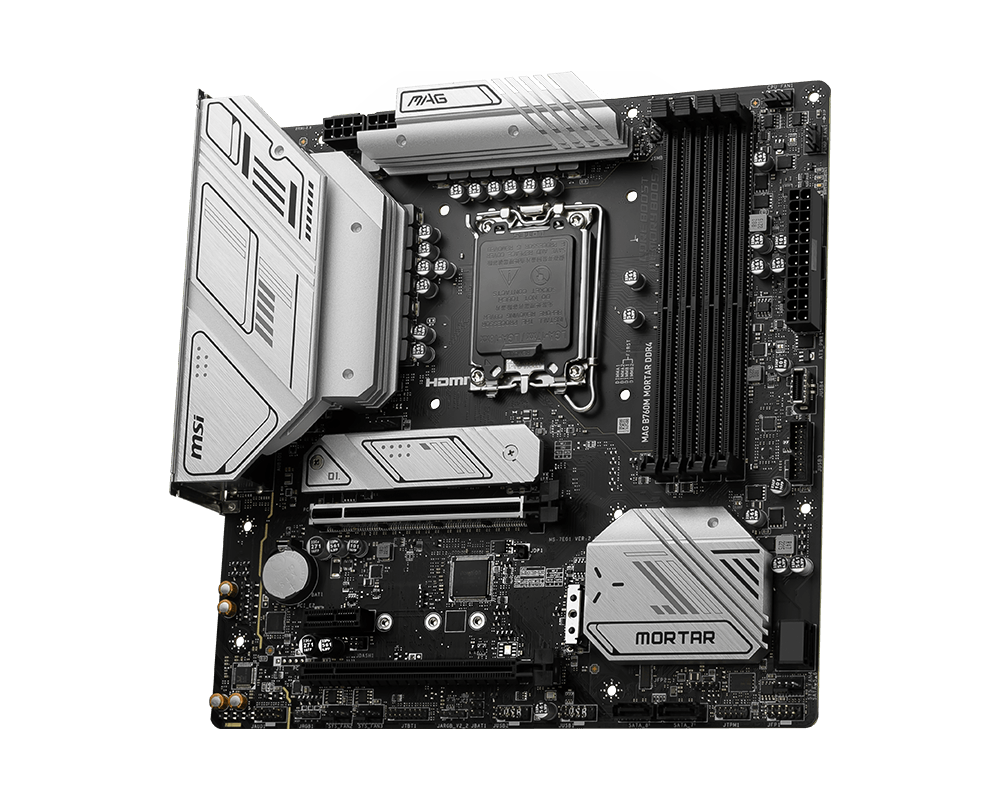

MAG B760M MORTAR DDR4
- 支援LGA 1700 脚位的第12 代/第13 代Intel ® Core™, Pentium ® Gold 和Celeron ®处理器
- 支援DDR4 记忆体,高达5333+(OC) MHz
- 强化供电设计: 12+1+1 Duet Rail 电源系统、dual 8-pin CPU 供电连接埠、Core Boost、Memory Boost
- 闪电极速游戏体验:PCIe 5.0 插槽、Lightning Gen 4 x4 M.2、USB 3.2 Gen 2x2
- 优质散热解决方案: 加大散热片设计和M.2 Shield Frozr,提供不间断的高性能体验
- AUDIO BOOST :让您的耳朵沉浸在录音室等级的音效品质。
- 高品质PCB : 6 层PCB 采用2oz 厚度铜和伺服器等级料件。
