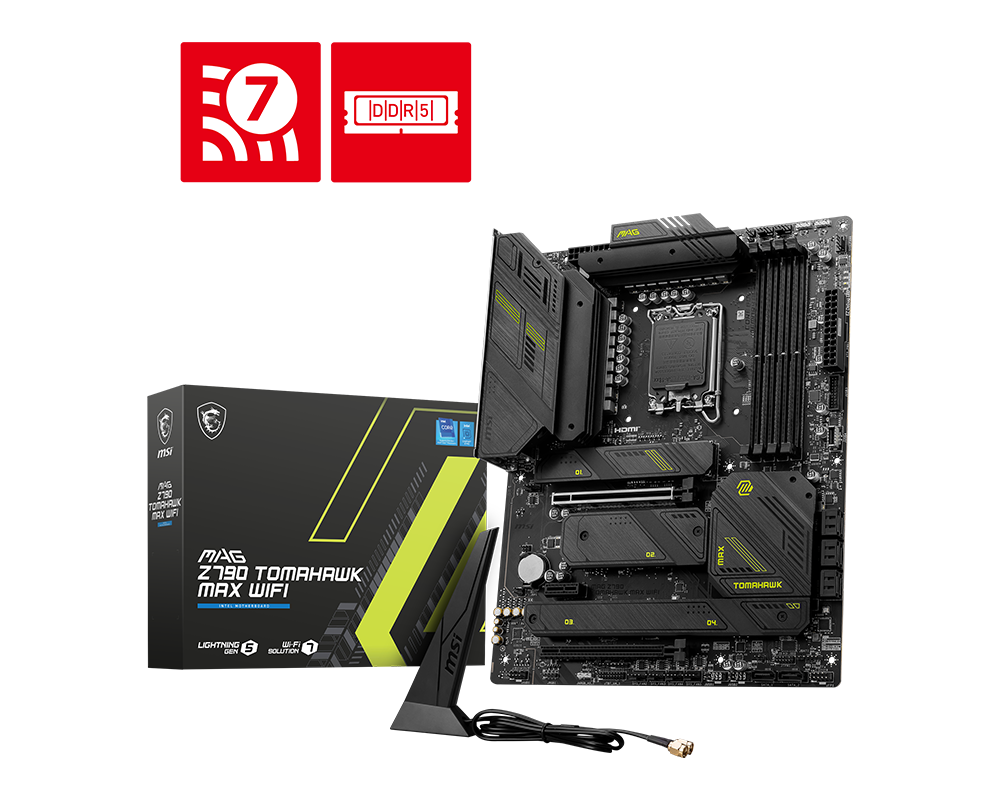

![MAG Z790 TOMAHAWK MAX WIFI](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/mag-z790-tomahawk-max-wifi/kv-mag_z790_tomahawk_max_wifi.png)

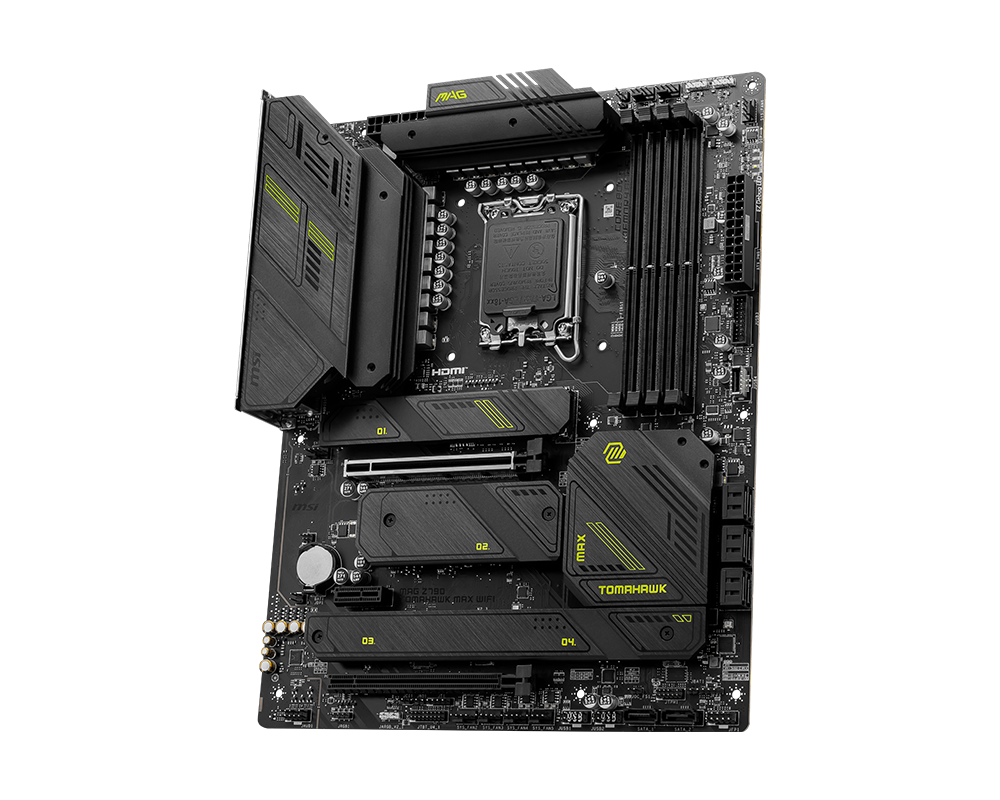

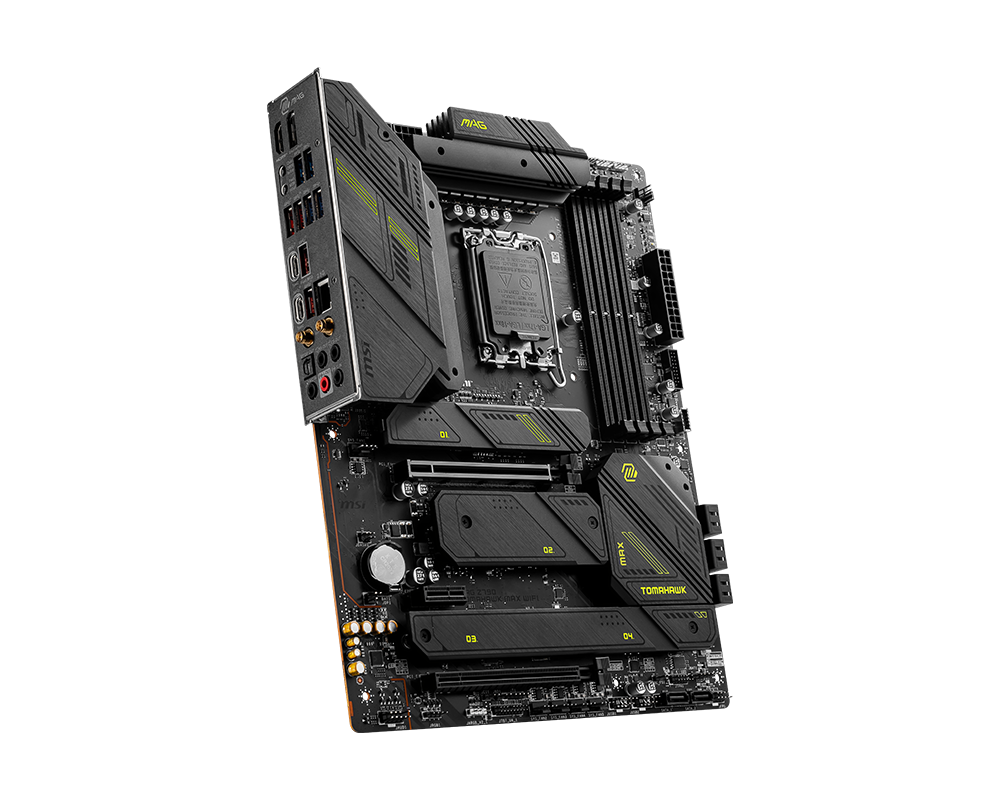

MAG Z790 TOMAHAWK MAX WIFI 专为游戏玩家设计,为主机打造稳定、坚固耐用的基础。其搭载Wi-Fi 7 网路解决方案、2.5G LAN、DDR5、PCIe 5.0 和独家M.2 Shield Frozr,为Intel® 下一代和第13 代酷睿处理器做好准备。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/mag_z790_tomahawk_wifi_ddr4/kv-hdmi_13th_z790.png)

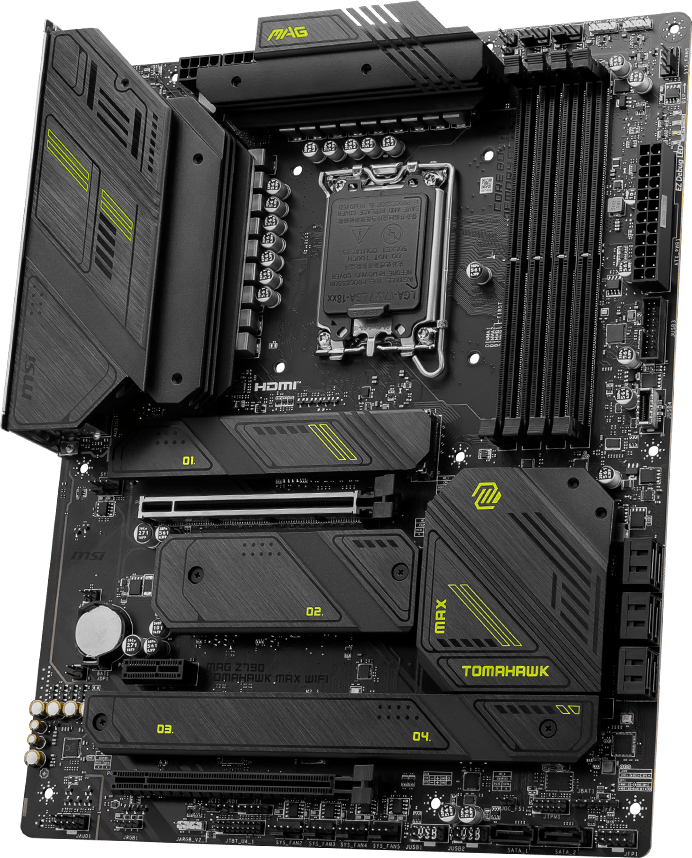

![MAG Z790 TOMAHAWK MAX WIFI](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/mag-z790-tomahawk-max-wifi/kv-pd.png)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/story-textin-mag.png)

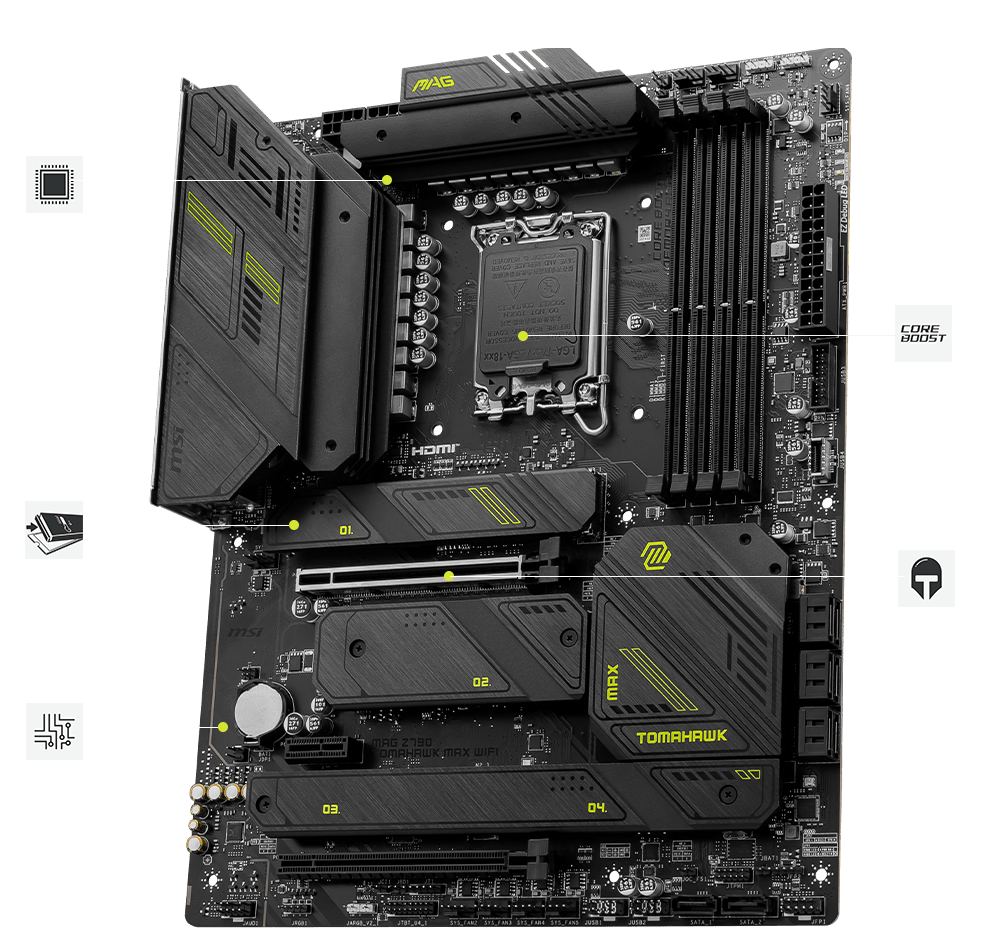

独家技术
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/mag-z790-tomahawk-max-wifi/mag_z790_tomahawk_max_wifi-block01.png)
![Direct 16+1+_1 Power Phases with 90A SPS](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_Digital-PWM.png)
16 镜像式电源管理采用90A SPS
![Screwless M.2 Shield Frozr](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_screwless_m2_shield_frozr.png)
免螺丝拆卸M.2 Shield Frozr
![Server Grade PCB](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_server-grade-pcb.png)
伺服器等级PCB
![Core Bost Technology](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_core-boost.png)
Core Boost 技术
![Steel Armor](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_Steel-Armor-14.png)
钢铁装甲

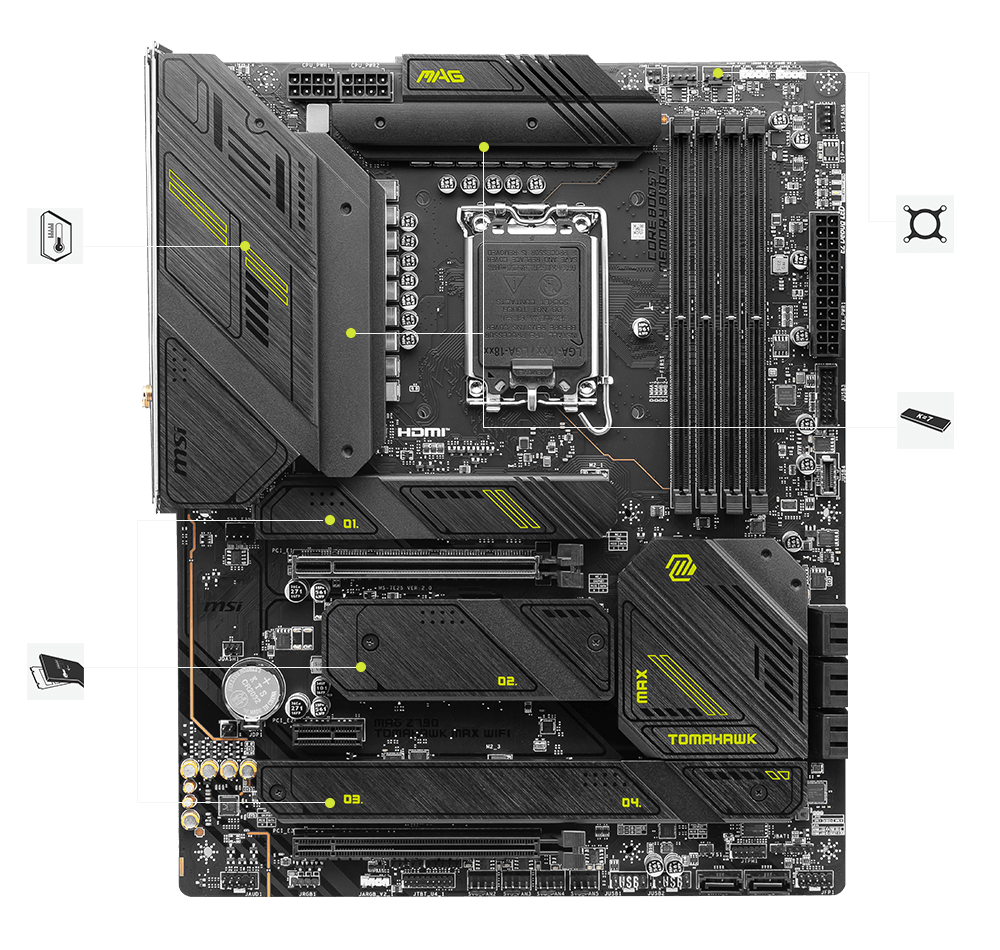

优异散热解决方案
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/mag-z790-tomahawk-max-wifi/mag_z790_tomahawk_max_wifi-block02.png)
![Extended Heatsink](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_extended-heatsink.png)
加大散热片
![M.2 Shield Frozr](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_M_2-Shield-Frozr.png)
M.2 Shield Frozr
![Pump Fan Support](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_pump-fan-support.png)
帮浦风扇支援
![Heatsink with 7W/mK Thermal Pad](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_k7.png)
搭载7W / mK 导热垫的散热片

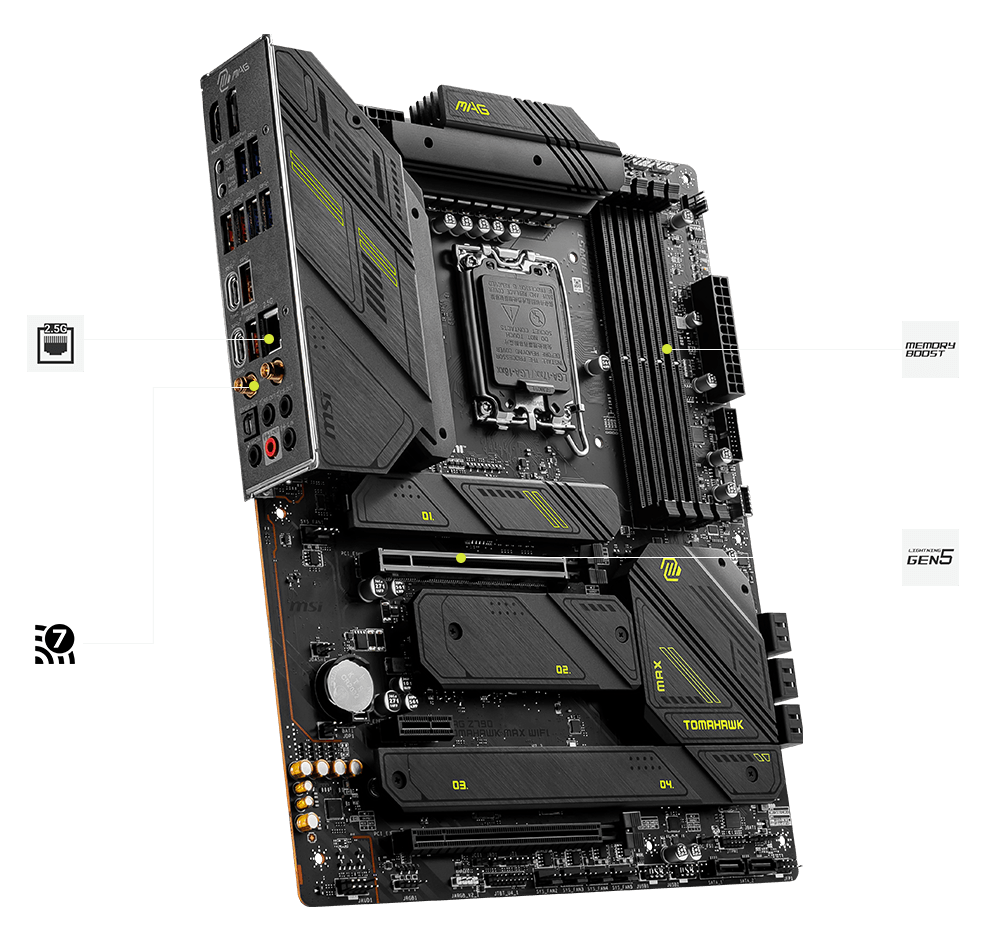

高速传输
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/mag-z790-tomahawk-max-wifi/mag_z790_tomahawk_max_wifi-block03.png)
![2.5G Network Solution](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_2_5g-lan.png)
2.5G 网路解决方案
![Wi-Fi 7](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray-wifi7.png)
Wi-Fi 7
![Memory Boost](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_memory_boost.png)
Memory Boost
![Lightning Gen 5](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_lightning_gen_5.png)
Lightning Gen 5
硬件
- 散热
- 供电解决方案
- 保护装置
- 完善风扇控制
- 水冷散热
完善风扇控制
MSI主板可让您管理所有系统和CPU风扇的速度和温度。 Total Fan Control让您在直觉式的介面中检查主要系统项目。您还可以为CPU和主板设置最多4个温度标准,系统也将依照这温度标准自动调整风扇速度。
![msi fully control software](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-fully-control-software.jpg)
使用MSI AI 引擎可检测CPU 和GPU 温度并自动将系统风扇负载调整为适当的值。
![msi ai cooling feature](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-fully-control-ai-cooling-feature.jpg)
MSI 风扇接头可自动检测风扇将以直流或PWM哪种模式运行,视情况随时调整风扇转速和进行降噪。 Hysteresis也能使系统风扇的运转更为流畅,并确保系统随时处于安静的状态之中。
![msi auto detect your fan](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-auto-detect-fan.png)
优化水冷
支援市场主流一体式和客制化水冷解决方案。专用的水泵供电接头可支援到最大3安培电流输出,让您可以完全控制水泵的速度。清楚标注的“ 禁制区”可以让玩家很简单又很安全地进行水冷设备的安装。
![msi x670 system cooling none atx](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-system-cooling-non-atx.png)
![msi x670 system cooling none atx support branding icons](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-system-cooling-support-branding-icons.png)
- 效能优化
效能优化

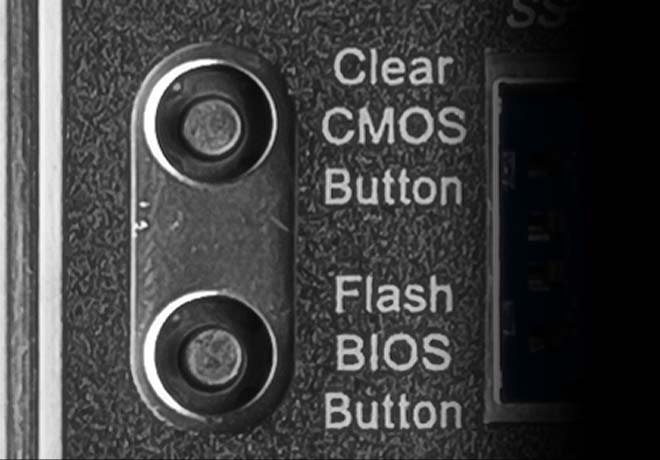

![Clear CMOS](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/AMD_600series_GameBoost.jpg)
![Flash BIOS Button](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/morePerformance-img02.jpg)
![Dual BIOS](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/morePerformance-img03.jpg)
- 实心针脚设计
- STAINLESS STEEL IO
- GROUNDING STRUCTURE
- OCP Protection
- TVS
实心针脚设计
微星主机板4-pin、8-pin、24-pin 电源连接埠均采用实心针脚设计。在处理高负载电流时,实心针脚设计可以更稳定地将12V 供电传输到处理器。
实心针脚电源连接埠优势
- 提高稳定性: 更大接触面积,强化供电稳定性。
- 低阻抗: 实心针脚拥有低阻抗优势,让电流更有效率。
- 更耐用: 实心针脚高耐用度,对严苛环境具有高度承受力。
- 可以应付高电流的需求。
![solid pin design](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/meg-z790-godlike-max/images/solid-pin-design-pd.png)

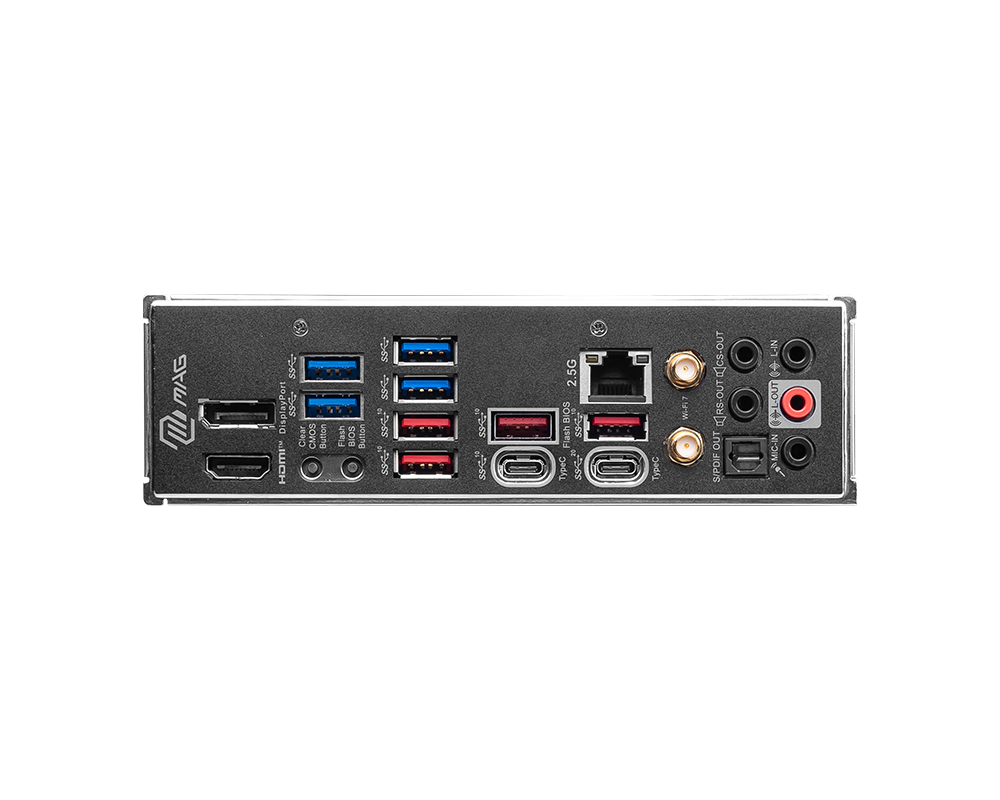

防锈不锈钢IO 保护盖
加上额外一层海绵和防锈不锈钢IO 保护盖,减少静电和系统的电磁辐射噪音,与传统IO 保护盖相较, 更耐用。
![Stainless Steel IO](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/meg-z790-godlike-max/images/hardware-protection-anti-corrosive-gaming-pd.png)
* The image above is an illustrative reference. Please refer to specification pages for more details.
电源相位的接地架构
电源相位的接地架构是微星独家设计。这项专利设计能够抑制电源相位所产生的电磁干扰(EMI),并有助于有效地将热能传导到具有接地特性的铜平面。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B760/mag-b760m-mortar-2/msi-z790-grounding-circle01.png)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B760/mag-b760m-mortar-2/msi-z790-grounding-circle02.png)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B760/mag-b760m-mortar-2/msi-z790-grounding-circle03.png)
![Z790 Grounding Board](https://storage-asset.msi.com/global/picture/image/feature/mb/B760/mag-b760m-mortar-2/msi-z790-grounding-board.jpg)
过电流保护
MSI 主机板内建过电流保护(OCP) 优先考虑安全性,确保USB 连接埠、DDR 记忆体、PWM IC 和CPU 等关键组件免受过电流影响。这种主动防御机制可降低因过多电流突然涌入而造成损坏或故障的风险,从而促进系统的长期稳定性。让MSI 玩家使用的更安心。
![MSI CPU and PWN IC](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/common-features/images/msi-z790-over-current-protection-img01-new.jpg)
![MSI DDR Memory Slots](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/common-features/images/msi-z790-over-current-protection-img02-new.jpg)
![MSI Rear and Front USB ports](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/common-features/images/msi-z790-over-current-protection-img03-new.jpg)
瞬态电压抑制器(TVS)
瞬态电压抑制器(TVS) 是用于防止电压过高的安全装置。微星所有主机板均配置TVS。当电压异常升高时,TVS从高阻状态切换到低阻状态,将过高的电压转移到地上,有助于防止高电压引起的电路损坏。
![Transient Voltage Suppressors](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/meg-z790-godlike-max/images/tvs-img.png)
性能
- 扩充性
- 记忆体
- Bios & 软体
- MSI CENTER
- CLICK BIOS 5
- AIDA64
- RESIZABLE BAR
MSI CENTER
MSI 全新的MSI Center 将MSI 所有软体整合到一个应用程序中。进一步控制主机板功能,以释放无限可能性。
![Mystic Light](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-center-msytic-light.png)
![True Color](https://storage-asset.msi.com/global/picture/image/feature/mb/Z590/MPG/gaming-carbon-wifi/msi-center-true-color.jpg)
![User Scenario](https://storage-asset.msi.com/global/picture/image/feature/mb/Z590/MPG/gaming-carbon-wifi/msi-center-user-scenario.jpg)
![Hardware Monitoring](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-center-Hardware-Monitoring.jpg)
![Profile Setting](https://storage-asset.msi.com/global/picture/image/feature/mb/Z590/MPG/gaming-carbon-wifi/msi-center-oc-setting.jpg)
![Fan Center](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-center-total-fan-control.jpg)
![System Diagnosis](https://storage-asset.msi.com/global/picture/image/feature/mb/Z690/meg_z690_unify/msi-center-System-Diagnosis.jpg)
CLICK BIOS 5
主机板所搭载的BIOS调整系统,方便使用,可以从中获得游戏性能、优异的使用效率,甚至挑战超频世界纪录!
![MSI EZ Mode Pro Series](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/mag_z790_tomahawk_wifi/EZ_Intel-Z790.jpg)
![MSI Advanced Mode Pro series](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/mag_z790_tomahawk_wifi/Advanced_Intel-Z790.jpg)
XMP
从预设的XMP资料夹中选择,并可自动超频相容的DDR记忆体。
VMD (Volume Management Device)
可透过PCIe汇流排直接控制与管理NVME SSD,而不需额外的硬体交换。
M-FLASH
从CMOS设定,即可在几分钟内刷新或升级BIOS,轻松方便。
HARDWARE MONITOR
可即时性观看您的主要硬体资讯,包括温度、记忆体容量,时脉速度和电压。
MEMORY TRY IT
从系统记忆体中获得极致速度,以及更高性能。
SEARCH & FAVORITES
右上角的搜寻和收藏选项可让您快速进入BIOS选单。
AIDA64 EXTREME 独家版本
微星主机板提供AIDA64 Extreme 独家版本60 天免费试用。 AIDA64 Extreme 是一款电脑软硬体侦测诊断软体。通过该软体,您可以在电脑上监控作业系统、主机板、CPU、BIOS…等相关详细资讯,并可储存CSV、HTML 等多种格式文件。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/aida64-img.jpg)
RESIZABLE BAR
Resizable BAR (Re-Size BAR)是一项进阶PCI Express 功能,可以让CPU一次完整存取GPU的记忆体,减少与GPU的来回沟通,进而改善许多游戏的效能。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/Resizable-BAR-Technology_Other.jpg)
连接性
- 音效
- mystic light
- 网路连线
- Audio Boost 5
- Isolated Analogy Structure
audio boost 5
- 高清晰度ALC4080 音频处理器
- 高品质音效电容
- 高品质音效S/PDIF 连接埠
- AUDIO 线路独立区域
- DE-POP 保护机制
音效连接埠的隔离架构设计
为了提供清晰的语音,微星设计独特的——隔离结构设计。音效连接埠加上金属框架,与内部构造完全隔离,让音质更新清脆无杂讯。
![isolated on](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/common-features/images/audio/msi-isolated-07-case-on.jpg)
![MSI Isolated Analogy Structure for Audio Connectors](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/common-features/images/audio/msi-isolated-07-base.jpg)
* The image above is an illustrative reference. Please refer to specification pages for more details.
- Synchronize
轻松延伸您的RGB体验
利用Mystic Light 扩充插槽,可以增添RGB 灯条或其他RGB装置设备。 Mystic Light 软体直觉式介面,更方便您操作控制,无需再另外单购RGB控制器。
- WIFI 7 解决方案
最新的无线解决方案WI-FI 7
最新的无线解决方案Wi-Fi 7 ,新世代大跃进,多项改进技术,满足时下越来越多无线装备对庞大频宽的渴望。
*Windows 11 compatibility only
与Wi-Fi 6 (802.11ax) 相较,Wi-Fi 7 (802.11be)提供更高的速度、更大的频宽,大幅降低延迟问题,拥有更好的连线效率。并提供更长的电池使用寿命,在拥挤环境中也能提供更佳性能。
Wi-Fi 7 连线速度高达5.8 Gbps !比之前的Wi-Fi 6/6E 标准快2.4 倍, Wi-Fi 7 将成为未来的连线主流。
前几代Wi-Fi 频宽为160MHz 。 Wi-Fi 7 将频宽提升至320MHz(6GHz )——确保在最大速度传输时,也能同时拥有高稳定性。
更高的正交振幅调变(QAM,Quadrature Amplitude Modulation),每个封包可以携带的数据就越多。 Wi-Fi 7 将调变方案从1024-QAM 增至4096-QAM,进而提高峰值传输速率和网路流量。
Wi-Fi 7 可使设备能够跨多个频段和通道同时发送和接收数据,满足未来扩充无线设备时,也能应付庞大的流量需求。

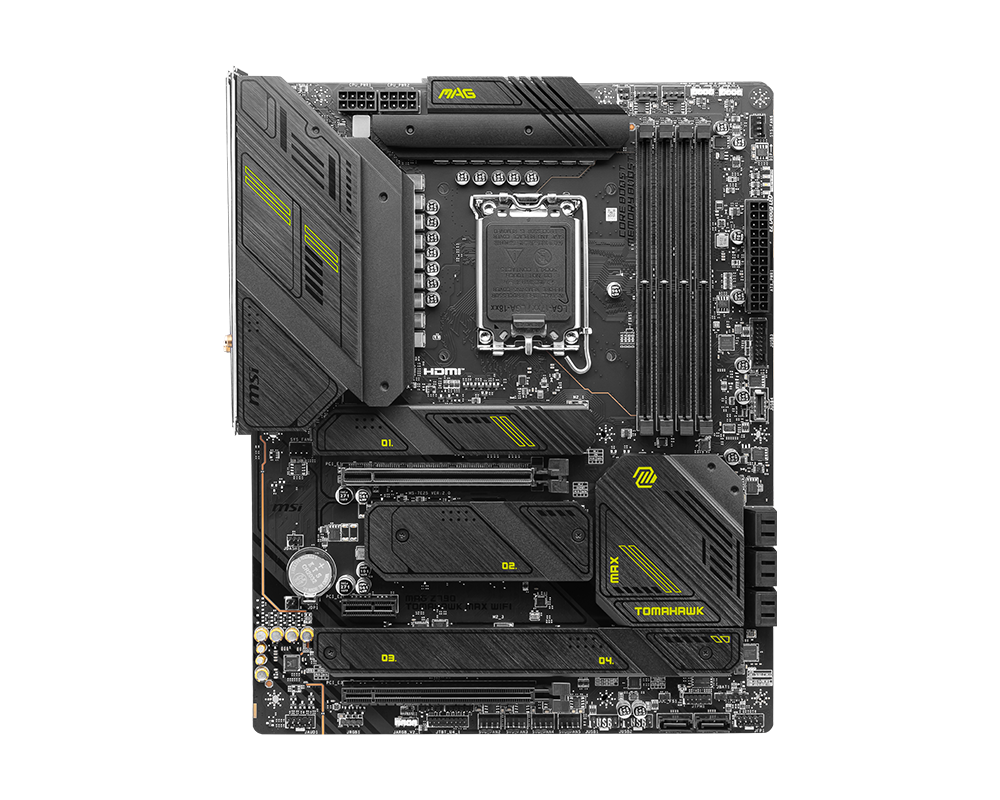

MAG Z790 TOMAHAWK MAX WIFI
- 支援LGA 1700 脚位的第12 代/第13 代Intel ® Core™ / Pentium ® Gold 和Celeron ®处理器
- 支援DDR5 记忆体,高达7800+(OC) MHz
- 强化供电设计: 16+1+1 镜像式电源管理、双8-pin CPU 供电连接埠、Core Boost、Memory Boost
- 闪电极速游戏体验: PCIe 5.0 插槽、Lightning Gen 5 M.2、USB 3.2 Gen 2x2
- 优质散热解决方案: 加大散热片设计和M.2 Shield Frozr,提供不间断的高性能体验
- AUDIO BOOST 5: 让您的耳朵沉浸在录音室等级的音效品质,提供最身临其境的游戏体验。
- 高品质PCB : 6 层2oz 厚度铜PCB,采用伺服器等级用料。
