MEG X670E GODLIKE 超神

MEG X670E GODLIKE(超神)

Chipset	AMD X670
CPU	Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 256GB Memory 支持 DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Audio	Realtek^® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Storage	4x M.2 (Qty) M.2_1 源 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 源 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 源 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 源 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 8x SATA 6G (Qty)
LAN	Marvell^® AQC113CS-B1-C 10Gbps LAN Intel^® I225V 2.5Gbps LAN
Slot	3x PCI-E x16 插槽（数量） • Supports x16/x0/x4 or x8/x8/x4 (For Ryzen™ 7000 Series processors) • Supports x8/x0/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4/x0/x2 (For Ryzen™ 5 8500G processor) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) * This rear USB 3.2 Gen 2x2 20Gbps Type-C port and PCI_E3 slot share the same bandwidth. When installing a device in the PCI_E3 slot, the port would be unavailable by default. You can go to BIOS > Setting > Advanced > PCIe/PCI Subsystem Setting > PCI_E3/Rear USB-C 20 Switch to select the available device.
Multi-GPU	AMD MULTI-GPU 支持
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices * SATA_A1_A2, SATA_B1_B2 and SATA_B3_B4 do not support RAID function.
USB	4x USB 2.0 (前置) 4x USB 2.0 接口（前部） 4x USB 5Gbps Type A (Front) 7x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 2x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
WIRELESS LAN & BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 4pin or 6 pin) 1x 前置 Type-C 快充支持(PD_PWR1) 1x CPU Fan 2x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x 水冷连接器 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 接口 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports 1x USB 20Gbps Type C ports
LED FEATURE	1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED

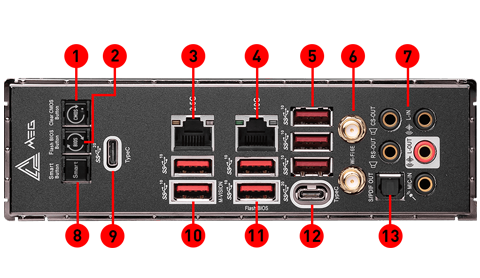

BACK PANEL PORTS	Clear CMOS Button Flash BIOS Button 2.5G LAN 10G Super LAN USB 3.2 Gen 2 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors Smart Button USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
PCB Info	E-ATX 288mmx304.8mm
BOX CONTENT

Processor

Supports 12th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors ¹
Processor socket LGA1700

Please go to www.msi.com to get the newest support status as new processors are released.

See supported processors

Chipset

Intel^® Z690 Chipset

Memory

4x DDR5 memory slots, supporting up to 128GB ¹
Supports 1R 4800 MHz (by JEDEC & POR)
Max. overclocking frequency:
- 1DPC 1R Max speed up to 6666+ MHz
- 1DPC 2R Max speed up to 5600+ MHz > 6000+ MHz
- 2DPC 1R Max speed up to 4000+ MHz > 5600+ MHz
- 2DPC 2R Max speed up to 4000+ MHz > 5600+ MHz
Supports Intel^® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Please refer to www.msi.com for more information on compatible memory.

See supported memory

Expansion Slots

3x PCIe x16 slots
- Supports x16/x0/x4, x8/x8/x4
- PCI_E1 supports PCIe 5.0 x16 (From CPU) ¹
- PCI_E2 supports PCIe 5.0 x8 (From CPU)²
- PCI_E3 supports PCIe 4.0 x4 (From Z690 chipset)²

PCI_E1 will run at x8 speed when install M.2 PCIe SSD in the M2_3 slot
M2_3 will be unavailable when installing device in the PCI_E2 slot
PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously

Multi-GPU

Supports AMD^® CrossFire™ Technology
Supports NVIDIA^® SLI™ Technology

Thunderbolt 4

Intel^®JHL8540 Thunderbolt™ 4 Controller

2x Thunderbolt™ 4 (USB-C) ports on the back panel
- Supports up to 40Gbps transfer rate with Thunderbolt devices
- Supports up to 20Gbps transfer rate with USB4 devices
- Supports up to 10Gbps transfer rate with USB 3.2 devices
- Supports up to 5V/3A ,15W power charging
- Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
- Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)

Storage

6x SATA 6Gb/s ports (From Z690 chipset)
- SATA5~8 (From Z690 chipset)
- SATAA~B (From ASM1061)
6x M.2 slots (Key M)
- M2_1 slot (From CPU)
  - Supports up to PCIe 4.0 x4
  - Supports 2260/ 2280/ 22110 storage devices
- M2_2 slot (From Z690 chipset)
  - Supports up to PCIe 4.0 x4
  - Supports 2260/ 2280 storage devices
- M2_3 slot (From CPU) ²
  - Supports up to PCIe 5.0 x4
  - Supports 2260/ 2280/ 22110 storage devices
- M2_4 slot (From Z690 chipset) ³
  - Supports up to PCIe 4.0 x4
  - Supports SATA 6Gb/s
  - Supports 2260/ 2280 storage devices
- M2_5 slot (From Z690 chipset) ¹
  - Supports up to PCIe 4.0 x4
  - Supports SATA 6Gb/s
  - Supports 2260/ 2280 storage devices
- M2_6 slot (From Z690 chipset)
  - Supports up to PCIe 3.0 x4
  - Supports 2260/ 2280/ 22110 storage devices
- M2_2, M2_4, M2_5 and M2_6 slots support Intel^® Optane™ Memory
Supports Intel^® Smart Response Technology for Intel Core™ processors

SATA7 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.
M2_3 will be unavailable when installing device in the PCI_E2 slot.
PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices ¹
Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices

SATAA & SATAB do not support RAID function.

USB

Intel^® Z690 Chipset
- 2x USB 3.2 Gen 2x2 20Gbps Type-C internal connectors
- 4x USB 3.2 Gen 2 10Gbps ports on the back panel
Hub-GL3590
- 4x USB 3.2 Gen 2 10Gbps ports on the back panel
ASM1074
- 4x USB 3.2 Gen 1 5Gbps ports through internal USB connectors
Hub-GL850G
- 4x USB 2.0 ports through internal USB connectors

Audio

Realtek^® ALC4082 Codec + ES9218PQ Combo DAC/HPA
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1x Aquantia^® AQC113CS 10Gbps LAN controller
1x Intel^® I225-V 2.5Gbps LAN controller

Wireless LAN & Bluetooth

Intel^® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz ¹ (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2 ², FIPS, FISMA

Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

Internal connectors

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
6x M.2 slots (M-Key)
2x USB 3.2 Gen 2x2 20Gbps Type-C ports
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
8x 4-pin system fan connectors
1x Water Flow meter connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
2x 2-pin Thermal Sensors connectors
1xTPM module connector
1x Tuning Controller connector

LED Feature

1x 2-Digit Debug Code LED
4x EZ Debug LED
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR LED connector

Back panel ports

Clear CMOS Button
2.5G LAN
10G Super LAN
Thunderbolt 4 40Gbps (Type-C)
Wi-Fi / Bluetooth
HD Audio Connectors
Flash BIOS Button
USB 3.2 Gen2 10Gbps (Type-A)
M-VISION Dashboard Port
Mini DisplayPort Input (for Thunderbolt passthrough)
Optical S/PDIF-Out

Dimensions

12 in. x 12 in. (30.5 cm x 31.0 cm)
E-ATX Form Factor

Mounting

9 mounting holes

Box content

MSI^® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.
