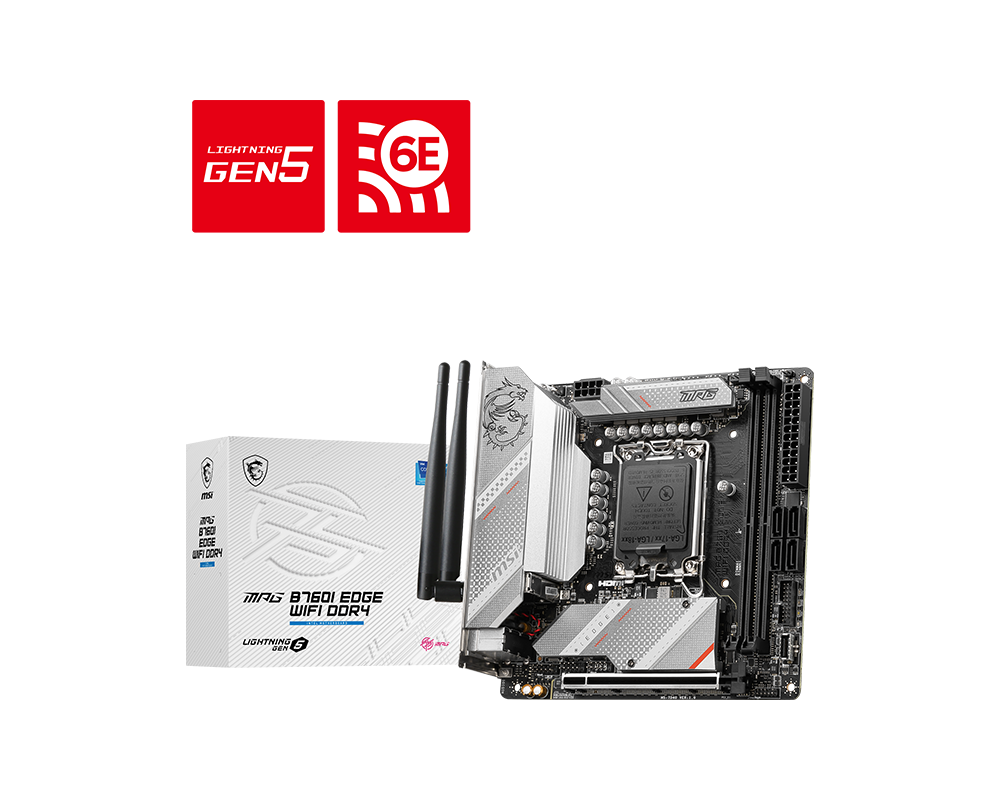

MPG B760I EDGE WIFI DDR4

Chipset INTEL B760
CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory 2x DDR4, Maximum Memory Capacity 64GB
Memory 支持 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Audio Realtek® ALC897 Codec
7.1-Channel High Performance Audio
Storage 2x M.2 (Qty)
M.2_1 源 (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 源 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
4x SATA 6G (Qty)
LAN Realtek® RTL8125BG 2.5Gbps LAN
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 插槽（数量）
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (后置)
2x USB 2.0 (前置)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 接口
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
LED FEATURE 4x EZ Debug LED

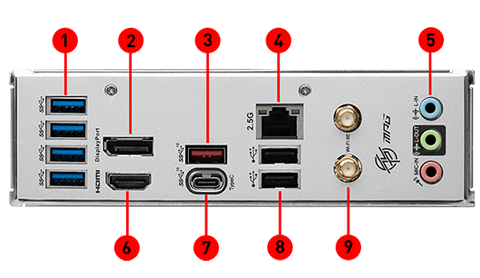

BACK PANEL PORTS
  1. USB 5Gbps
  2. Display Port
  3. USB 10Gbps
  4. 2.5G LAN
  5. Audio Connectors
  6. HDMI™
  7. USB 10Gbps (Type-C)
  8. USB 2.0
  9. Wi-Fi / Bluetooth
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info Mini-ITX
170mmx170mm

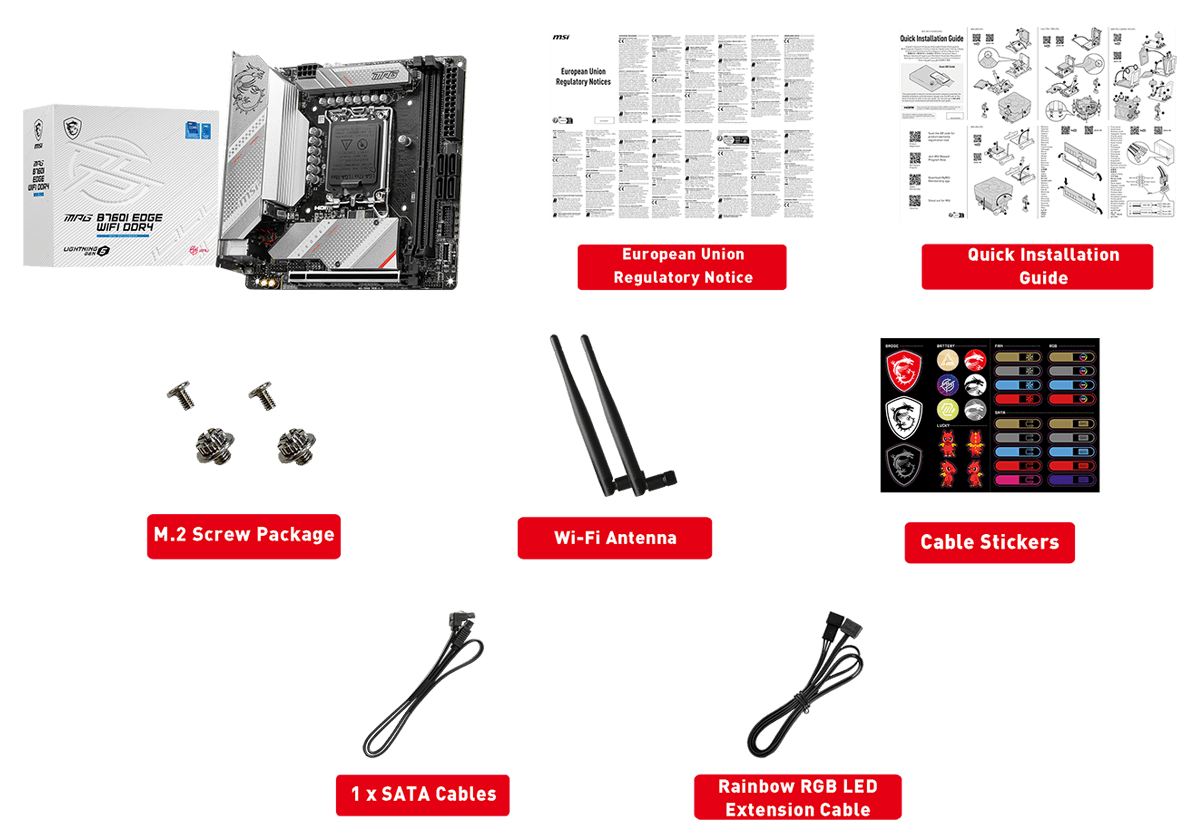

BOX CONTENT
