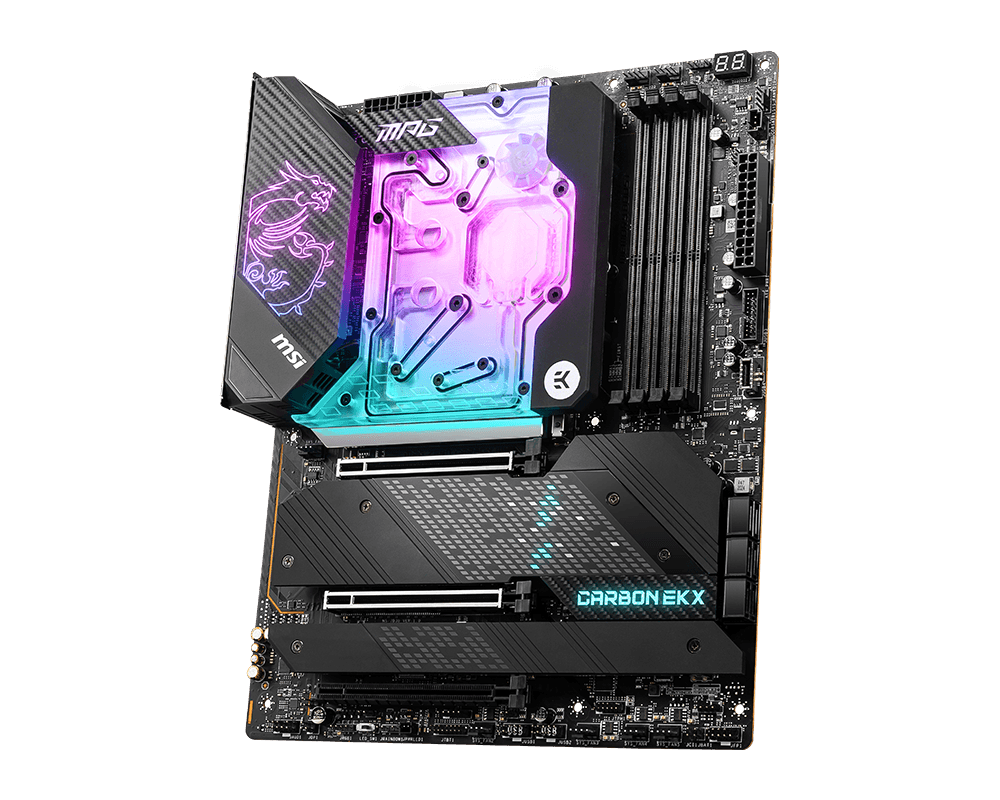

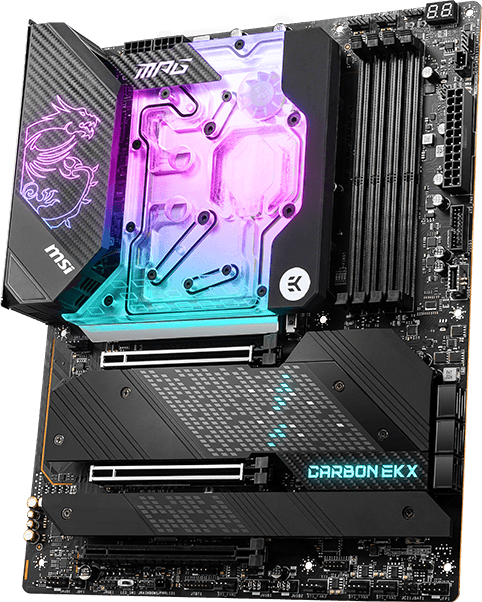

MPG Z690 CARBON EK X
EXCLUSIVE FEATURE

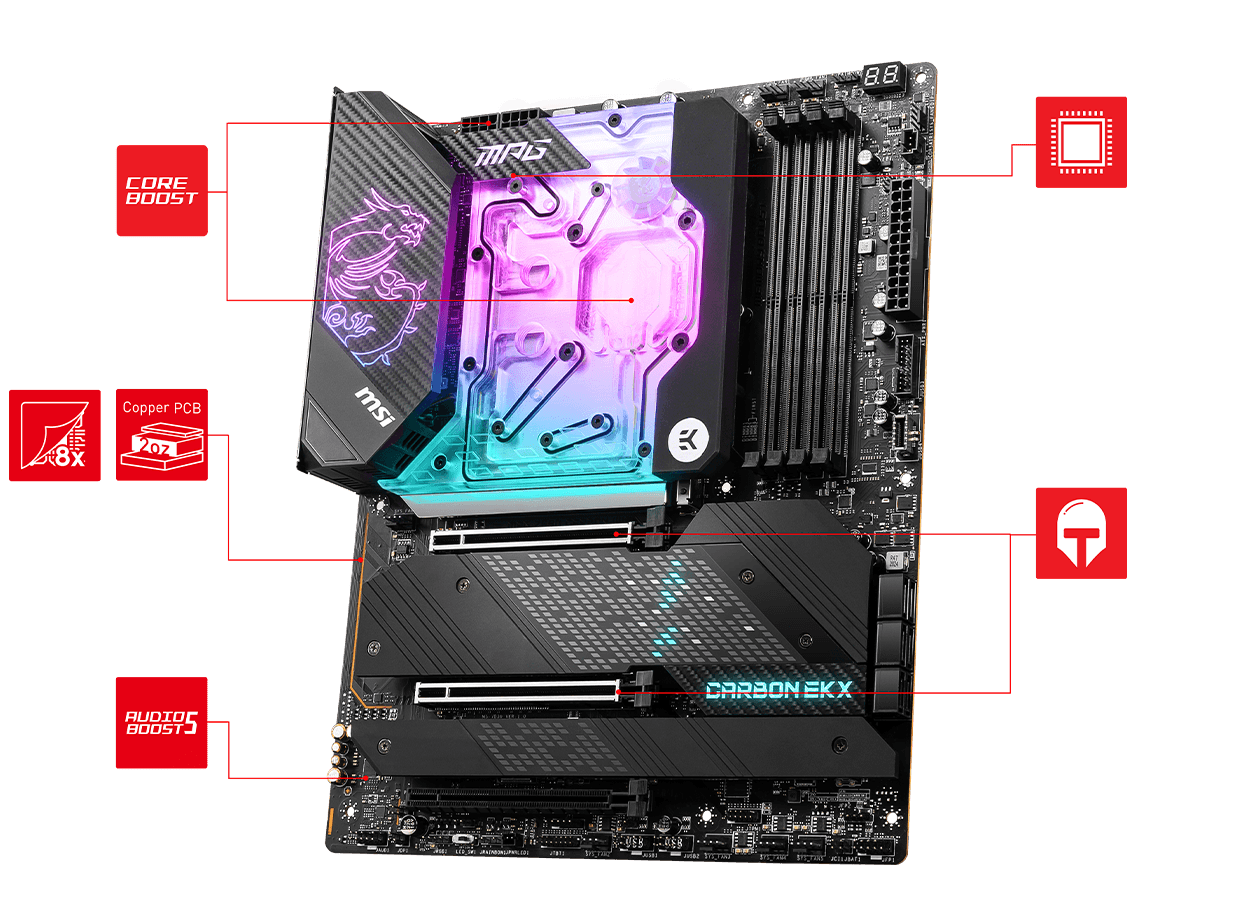

Core Boost Technology
Combining 2x 8-pin power connectors and premium layout design, that is ready for unleashing the maximum performance.
Premium PCB Material
8 layer PCB with the use of server grade material and 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5
Isolated audio with high quality audio processor & amp for the most immersive gaming experience.

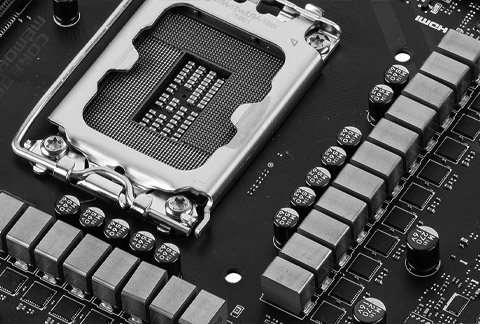

Direct 18+1+1 Power Design with Digital PWM
An aggressive digital VRM power design with digital PWM IC and direct 18 phases power system with 75A Smart Power Stage, make sure your system runs smoothly under the most extreme conditions.

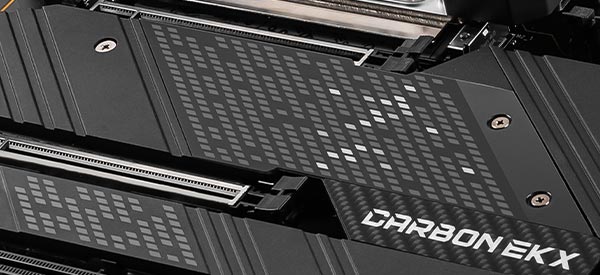

PCI-E Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

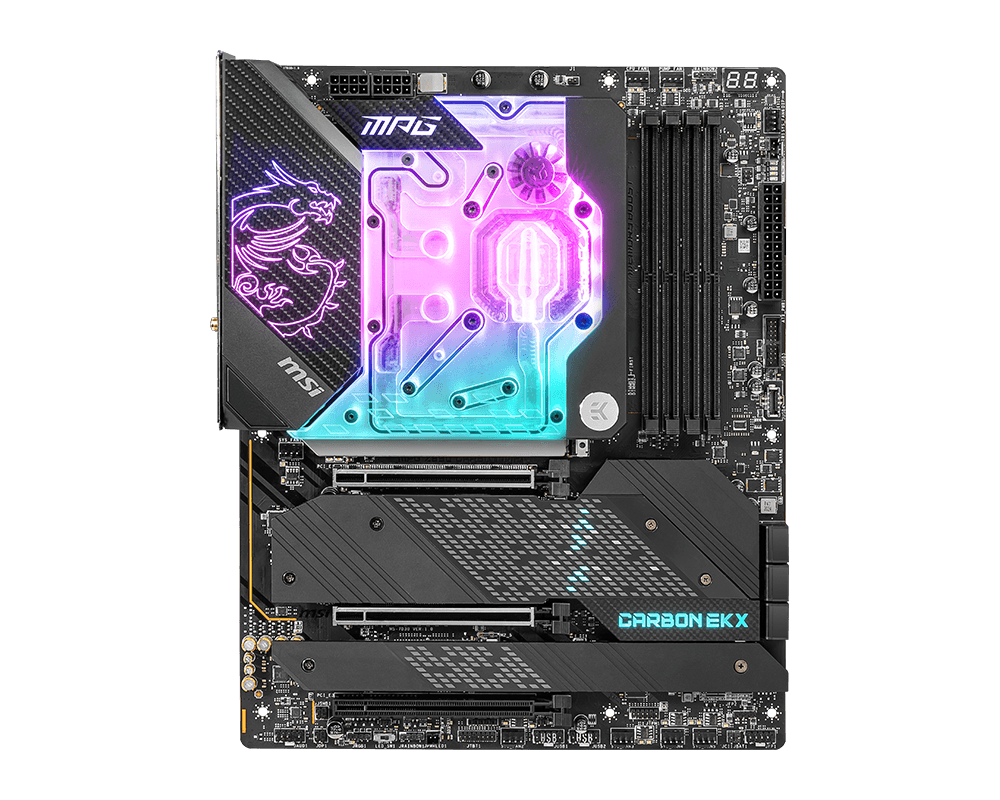

MPG Z690 CARBON EK X

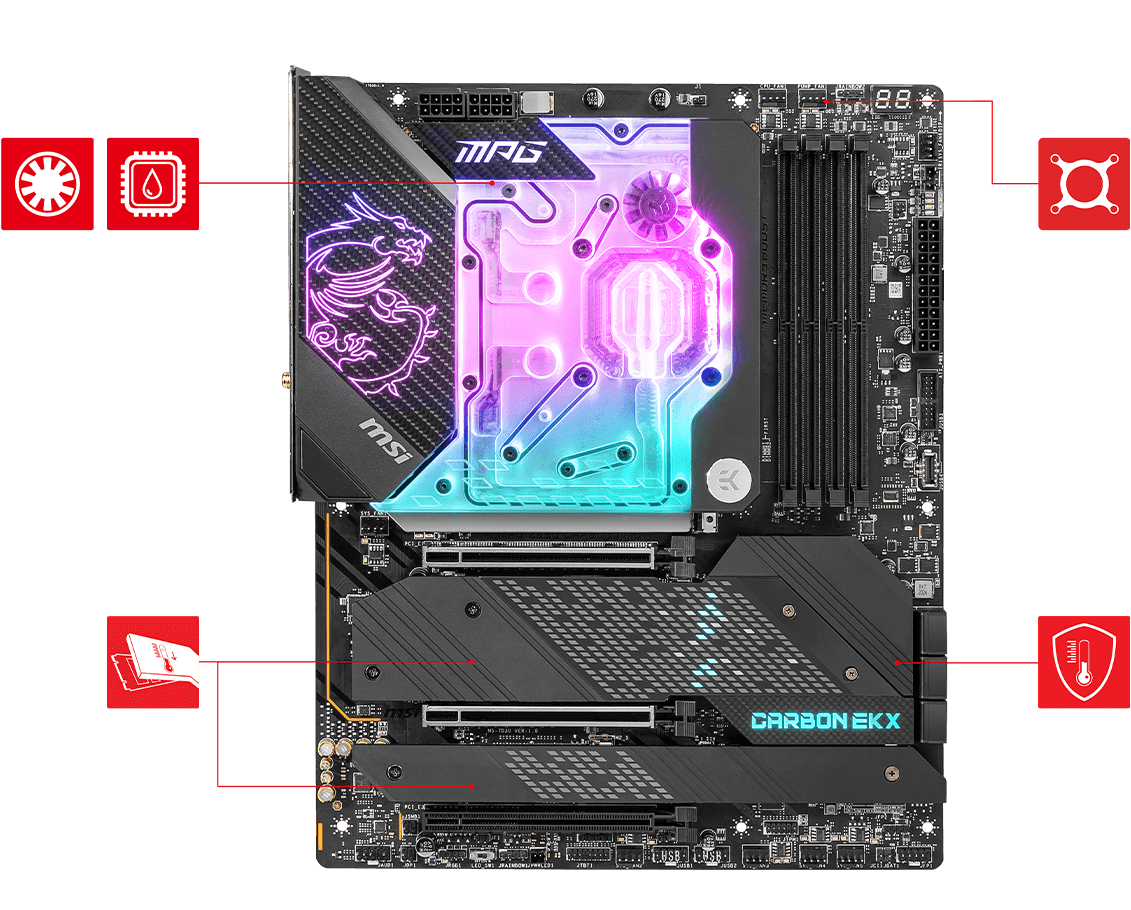

premium thermal solution

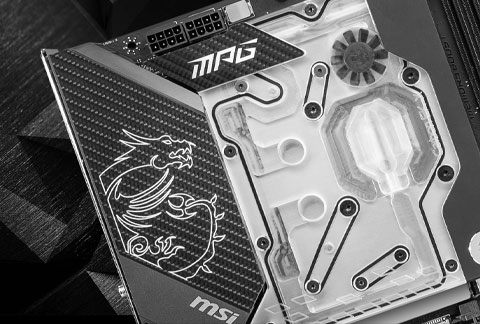

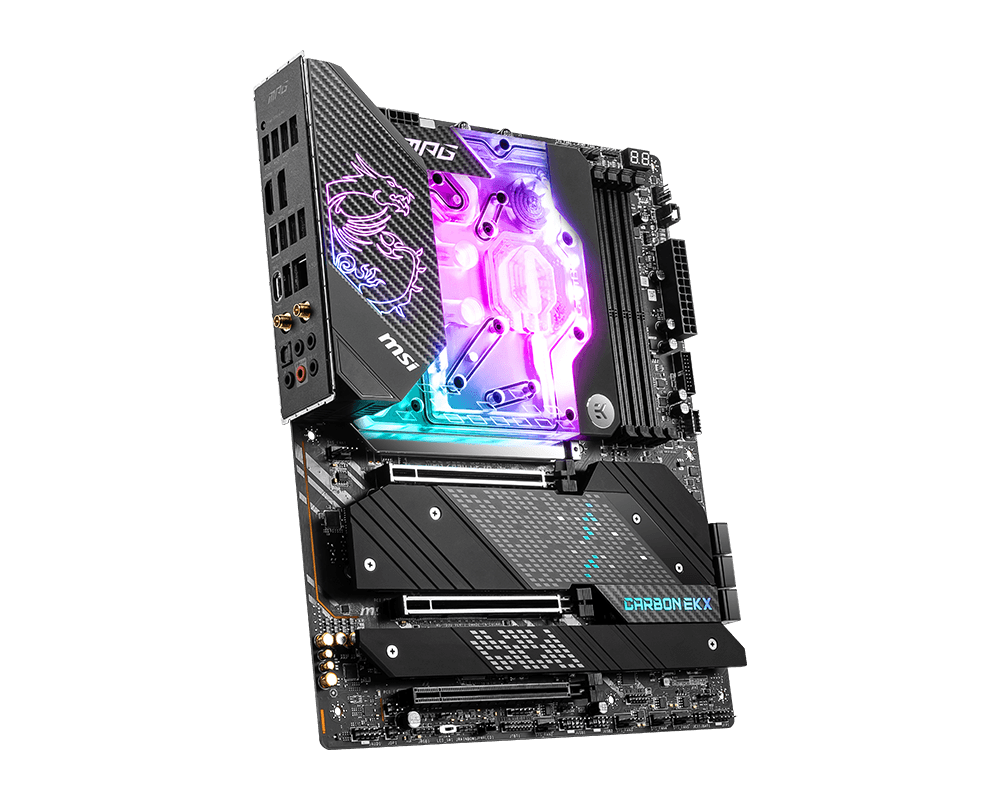

EK CUSTOM-DESIGNED MONOBLOCK
A custom-designed EK-Quantum Monoblock that aesthetically blends with the motherboard with features an integrated flow indicator. It offers pristine cooling for CPU, VRM and M.2.
M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
Enlarged Chipset Heatsink
Larger heatsink for chipset ensures better heat dissipation and cooling effects.
MPG Z690 CARBON EK X
HIGH-SPEED TRANSMISSION

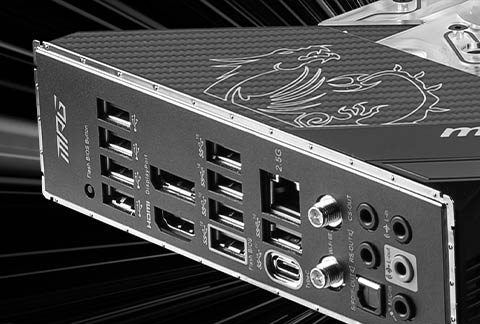

2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager delivers better network experience.

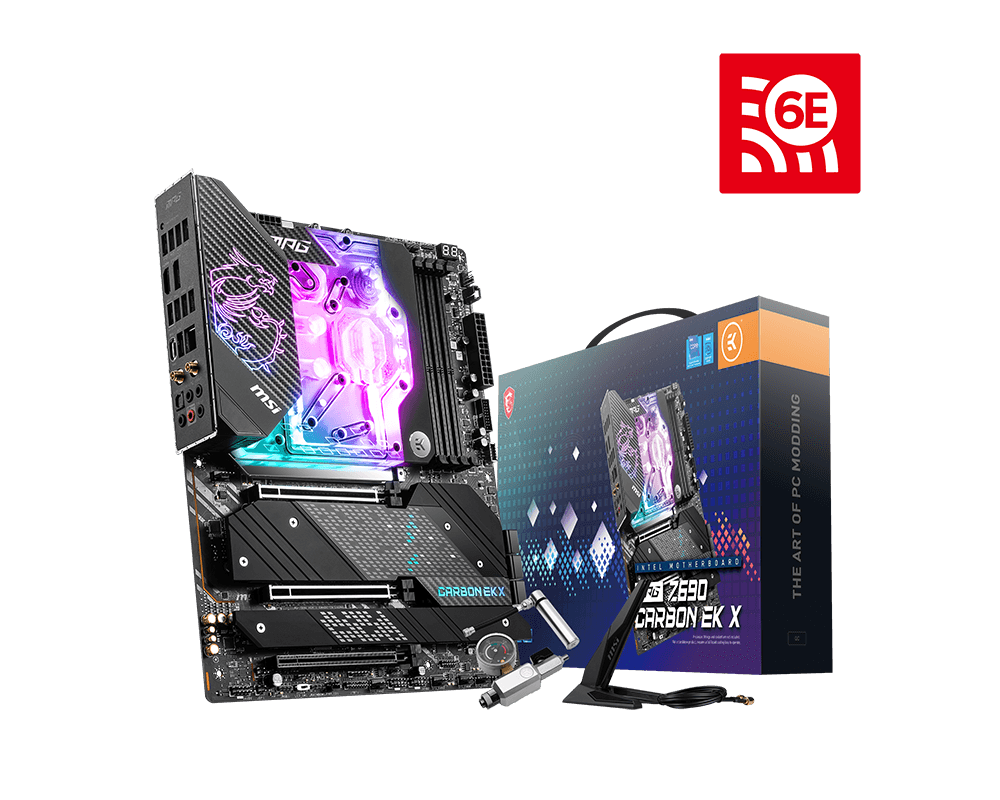

Intel Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology and delivering speeds up to 2400Mbps.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

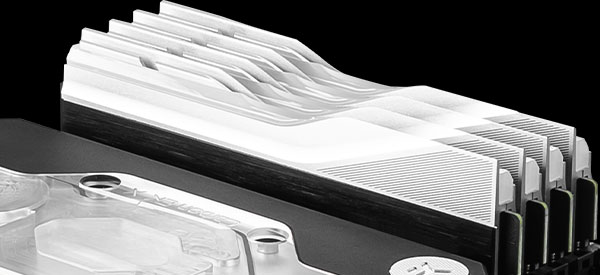

Memory Boost
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
Lightning Gen 5 Solution
The latest Gen 5 PCI-E slots with up to 128GB/s bandwidth for maximum transfer speed.

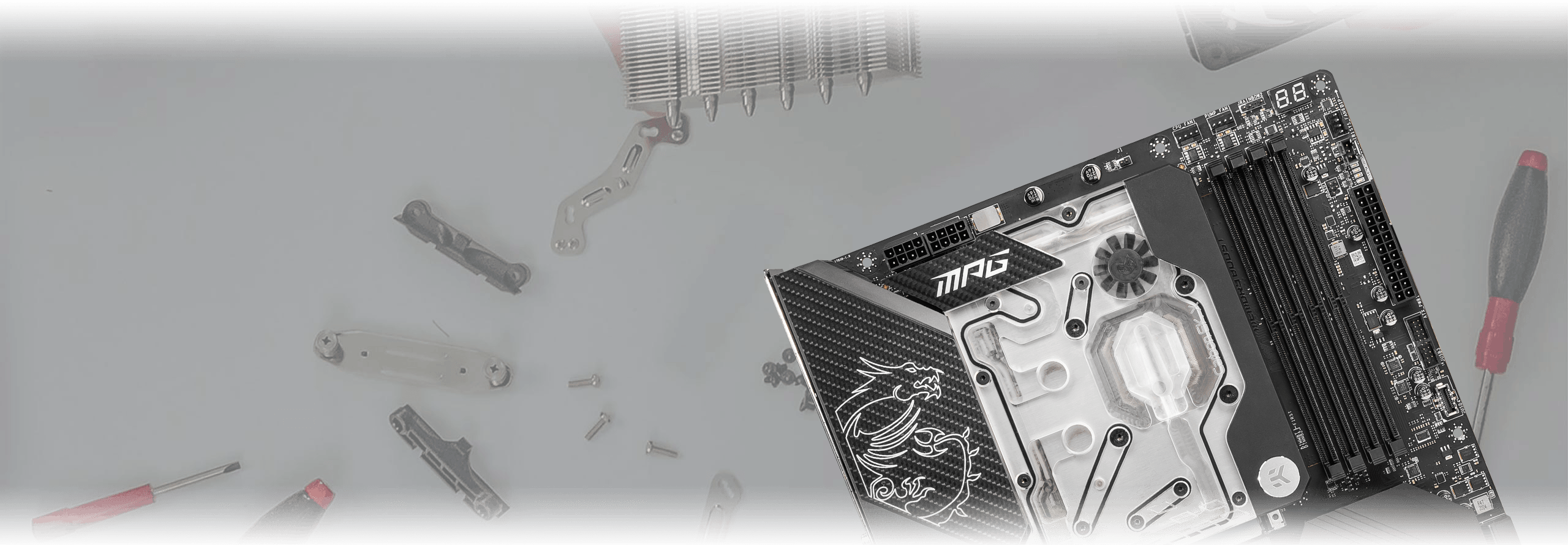

PREMIUM
HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
ENHANCED
PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
MPG Z690 CARBON EK X
- 支持第 12 代英特尔® Core™ / Pentium® Celeron® LGA 1700 插槽处理器
- 支持 DDR5 内存，可达 6666+(OC) MHz
- CPU + VRM + M.2 水冷：定制设计的 EK 单体，内置流入指示器，可为 CPU、VRM 和主 M.2 部分提供原始冷却
- Lightning Fast 游戏体验：PCIe 5.0 插槽、Lightning Gen 4 x4 M.2、USB 3.2 Gen 2x2
- 增强型电源设计：直接 18+1+1 相电源、双 8 针 CPU 电源连接器、核心加速引擎、内存加速引擎
- M.2 冰霜铠甲：所有 M.2 插槽均采用 冰霜铠甲，专为高性能系统和不间断游戏体验而打造
- 神秘之光：一键控制 1680 万种颜色/奇特的灯光效果。 MYSTIC LIGHT SYNC 支持 RGB、RAINBOW(ARGB)、Corsair LED 灯条和环境设备。

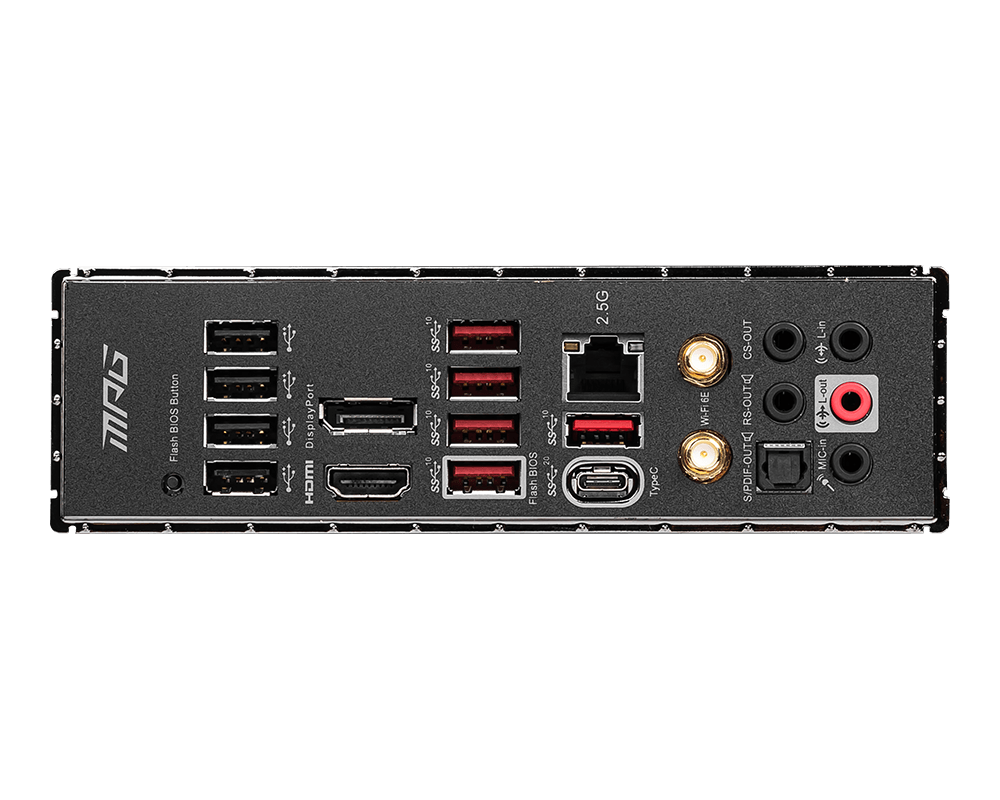

- 具有 LAN Manager 和 Intel Wi-Fi 6E 解决方案的 2.5G LAN：为专业和多媒体使用升级的网络解决方案。提供安全、稳定和快速的网络连接
- 第五代电竞音效组件：以录音室级音质为您带来最身临其境的游戏体验
- 高品质 PCB：由 2oz 加厚铜和服务器级材料制成的 8 层 PCB
- 预装 I/O Shield：更好的 EMI 保护和更方便的安装
