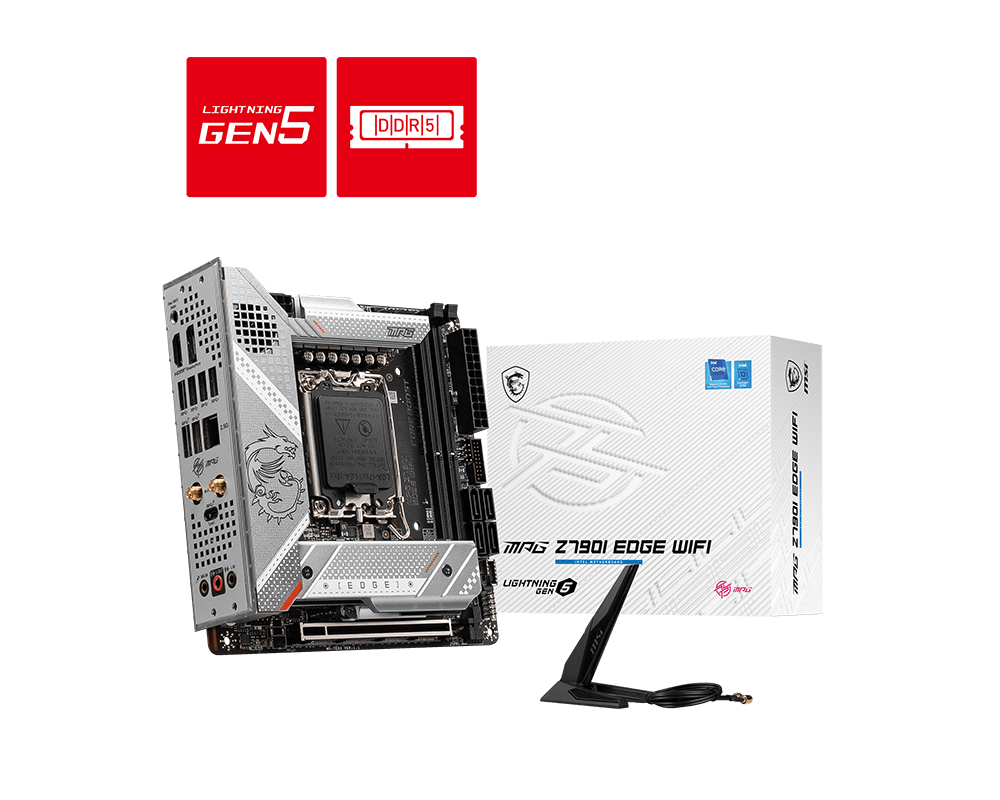

![MPG Z790I EDGE WIFI](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/icon-mpg-z790i-edge-wifi.png)

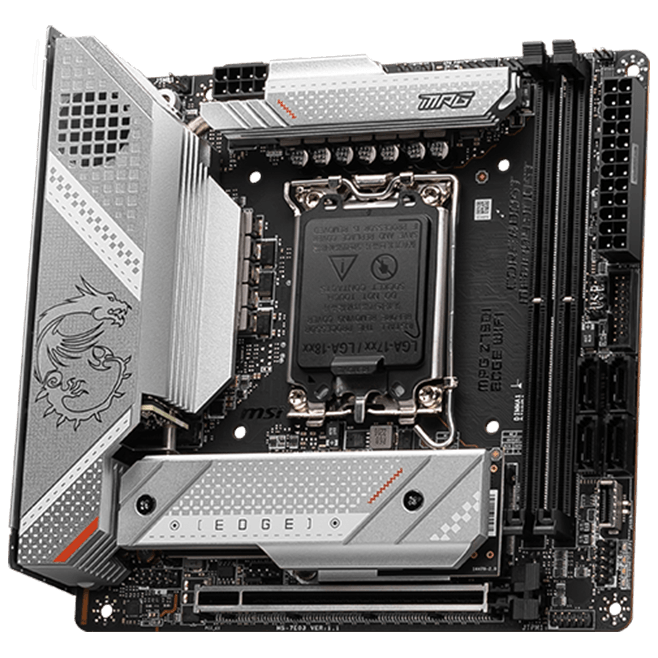

MPG Z790I EDGE WIFI 采用银白色配色,独特、个性、时尚。 .
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/awards-hdmi_12th_intelz790.png)
![MPG Z790I EDGE WIFI](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/mpg-z790i-edge-wifi.png)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/story-textin-mpg.png)

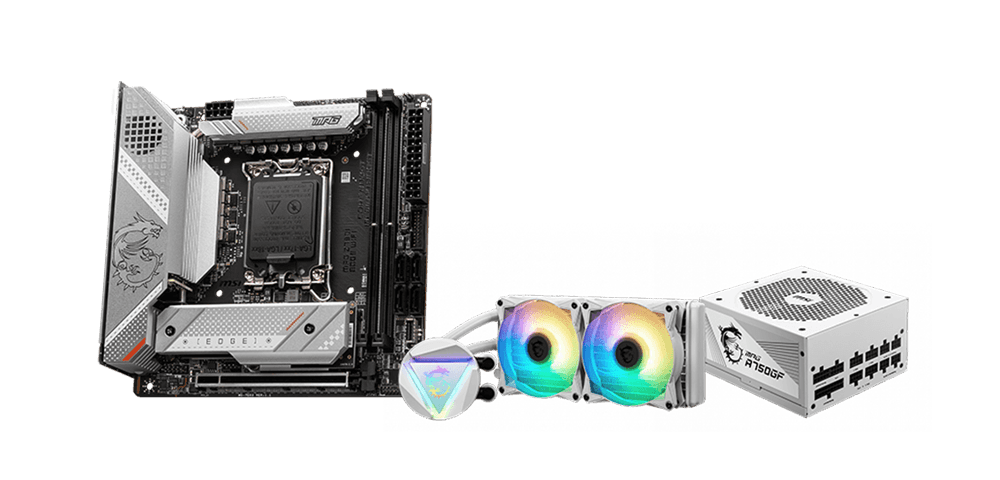

![MSI MPG Z790I EDGE WIFI with MIS Products](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/story-model-mpg.png)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/story-mpg-icon.png)
引领潮流
MPG 系列主机板拥有独特风格设计,充分展现您的态度,电竞,可以很不一样。

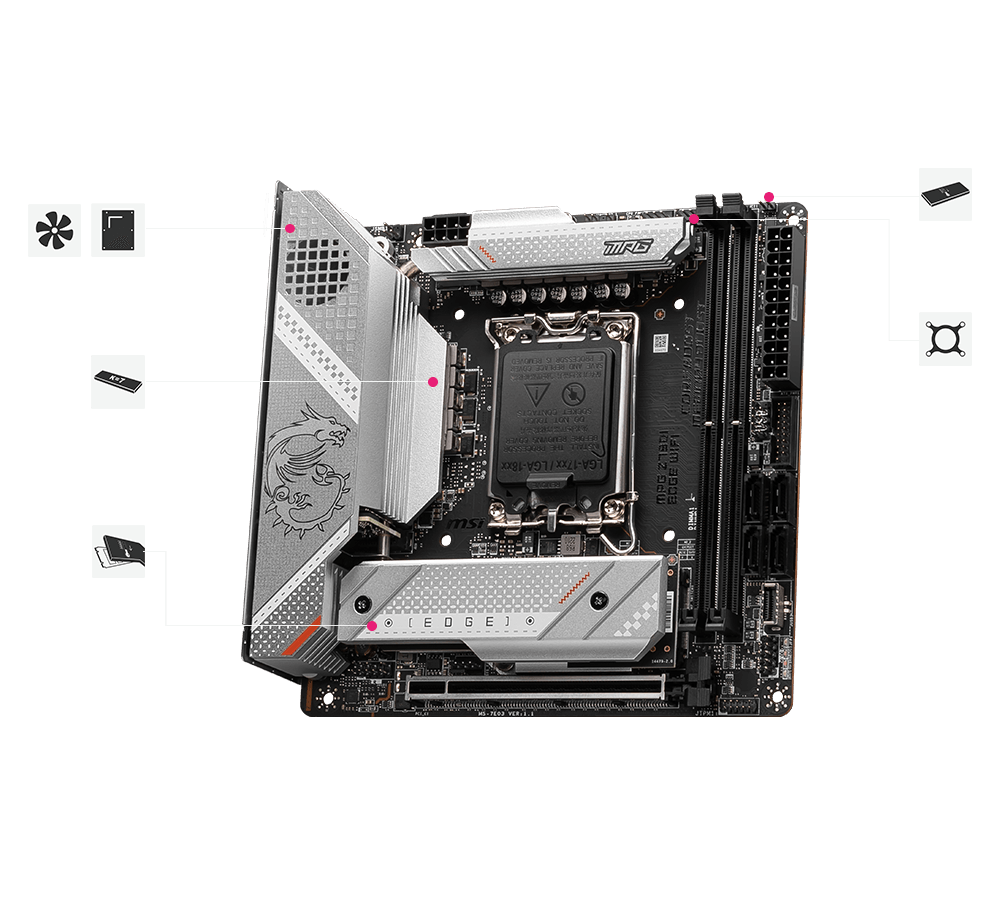

优异散热解决方案
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/mpg_z790i_edge_wifi-hero-block01.png)
![Frozr Heatsink and Heat-pipe](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/icon-frozr-heatsink.png)
![Frozr Heatsink and Heat-pipe](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/icon-heat-pipe.png)
Frozr 散热片和导热管
![7W/mK MOSFET Thermal Pads](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/icon-k7.png)
7W/mK MOSFET 散热垫
![Double-sided M.2 Shield Frozr](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_M_2-Shield-Frozr.png)
M.2 Shield Frozr
![MOSFET Baseplate](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_base_plate.png)
MOSFET 背板
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/icon-pump-fan-support.png)
帮浦风扇支援

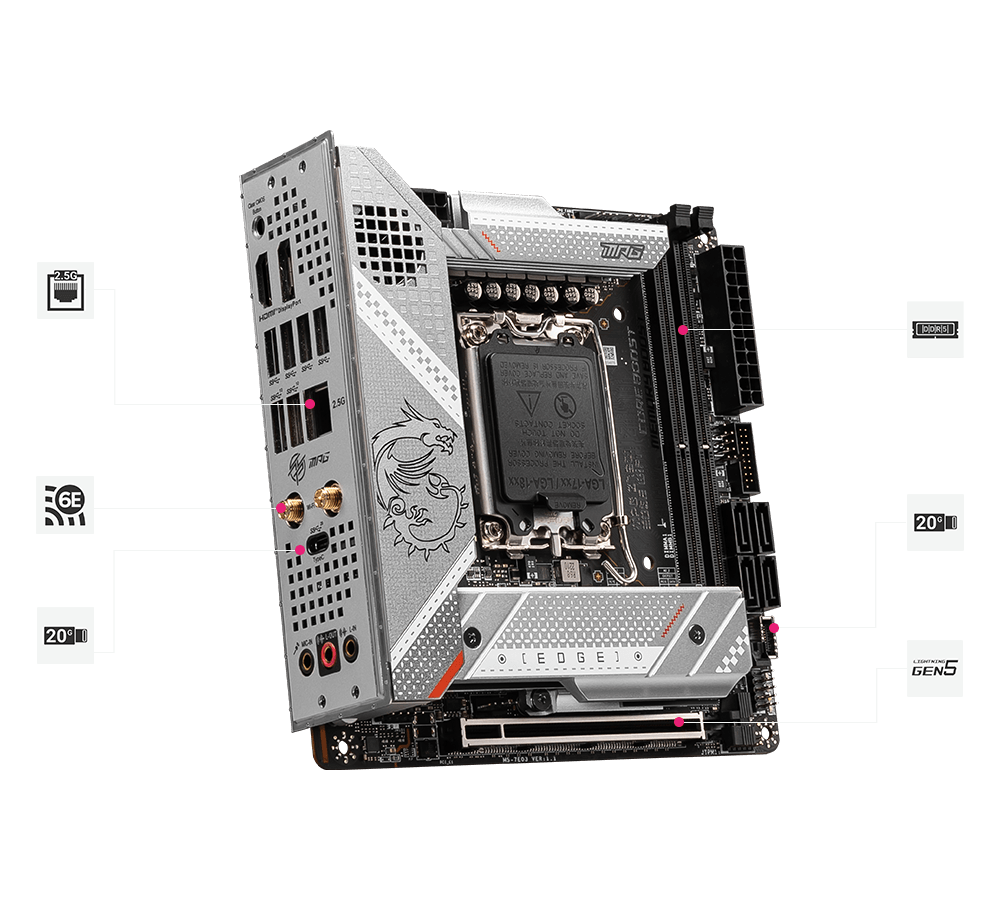

高速传输
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/mpg_z790i_edge_wifi-hero-block02.png)
![2.5G LAN](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/icon-lan.png)
2.5G LAN
![Latest Wi-Fi 6E](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_wifi_6e.png)
全新一代Wi-Fi 6E
![Front USB 20G Type-C with 60W Charging](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_typec-20G.png)
Lightning USB 20G
![Latest DDR5 Memory](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_ddr5_memory.png)
支援最新DDR5 记忆体
![Front USB 20G Type-C](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_typec-20G.png)
前置USB 20G Type-C
![Lightning Gen 5 PCI-E](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_lightning_gen_5.png)
Lightning Gen 5 PCI-E

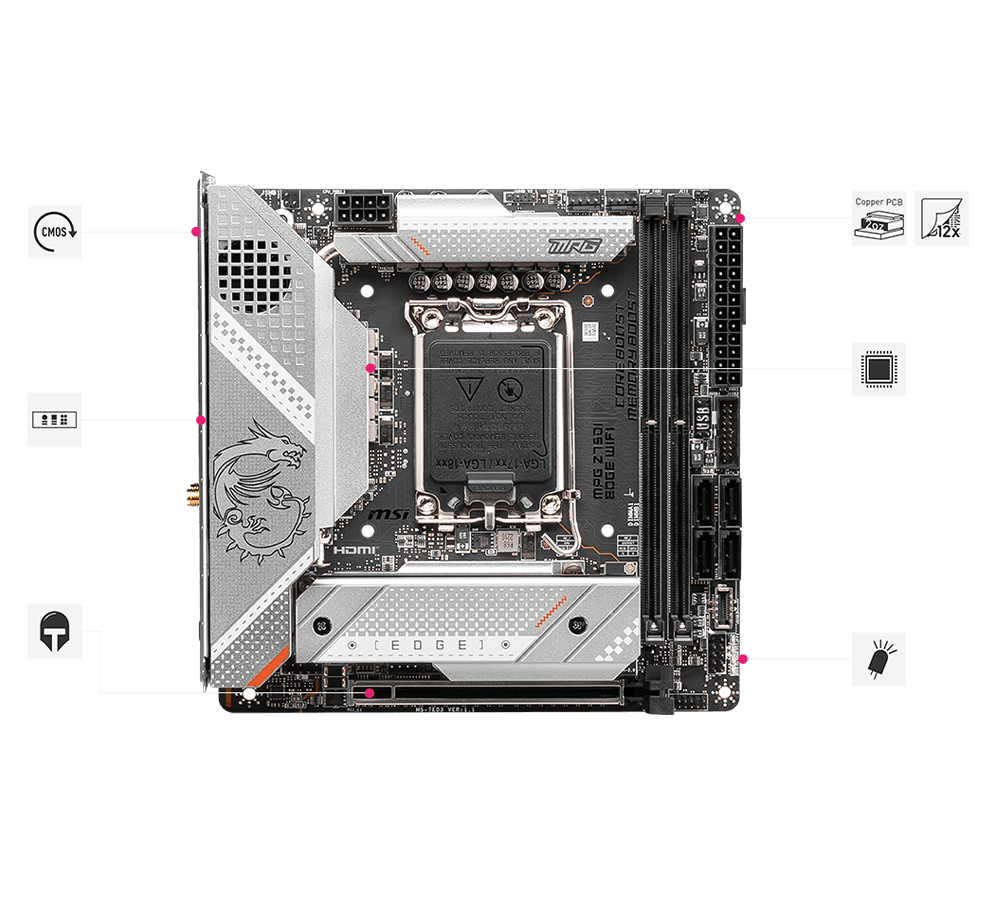

便利、稳定耐久
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/mpg_z790i_edge_wifi-hero-block03.png)
![Clear CMOS Button](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/icon-cmos.png)
清除CMOS 按钮
![Pre-installed I/O Shield](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_Pre-installed-io-shieding.png)
预装I / O上盖
![PCIe Steel Armor](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_Steel-Armor-14.png)
钢铁装甲
![12-Layer Server Grade PCB with 2oz Thickened Copper](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_2oz_thickened.png)
![12-Layer Server Grade PCB with 2oz Thickened Copper](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/icon-12x.png)
12 层伺服器等级PCB
![Direct 10+1+1 VRM Power](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_Digital-PWM.png)
直出10+1+1 VRM 供电
![EZ Debug LED](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/icon-ez-debug-led.png)
EZ Debug LED
硬件
- 散热
- 供电解决方案
- 友善设计
- 整体散热设计
- 完善风扇控制
- 水冷散热

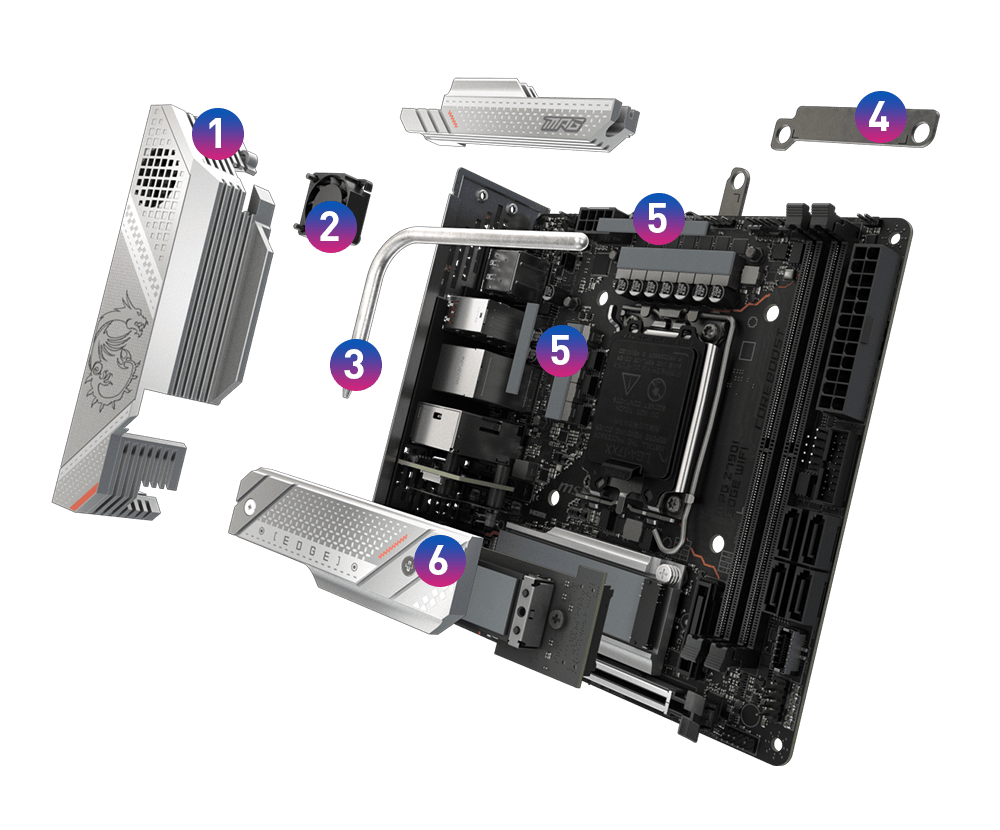

散热总览
![msi Z790I EDGE WIFI cooling overview mobile](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/msi-z790i-edge-wifi-cooliing-mobile.png)
散热片加大设计
MSI 加大散热片尺寸,确保在高负载环境下仍保有该有的性能表现。
Frozr 散热片
主动式散热解决方案,为释放最大性能做好准备。
导热管
连结两片MOS散热片,加大散热面积。
MOSFET 背板
底板采用坚固的金属设计,有助于降低MOSFET 温度。
7W/mK 散热垫
高品质7W/mK MOSFET 散热垫和并附加choke 散热垫,确保所有核心以高性能运行。
搭载晶片组散热片的M.2 Shield Frozr
确保M.2 SSD 快速运转时,避免降速,进而确保资料安全保存。
完善风扇控制
MSI主板可让您管理所有系统和CPU风扇的速度和温度。 Total Fan Control让您在直觉式的介面中检查主要系统项目。您还可以为CPU和主板设置最多4个温度标准,系统也将依照这温度标准自动调整风扇速度。
![msi fully control software](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-fully-control-software.jpg)
使用MSI AI 引擎可检测CPU 和GPU 温度并自动将系统风扇负载调整为适当的值。
![msi ai cooling feature](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-fully-control-ai-cooling-feature.jpg)
MSI 风扇接头可自动检测风扇将以直流或PWM哪种模式运行,视情况随时调整风扇转速和进行降噪。 Hysteresis也能使系统风扇的运转更为流畅,并确保系统随时处于安静的状态之中。
![msi auto detect your fan](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-auto-detect-fan.png)
优化水冷
支援市场主流一体式和客制化水冷解决方案。专用的水泵供电接头可支援到最大3安培电流输出,让您可以完全控制水泵的速度。清楚标注的“ 禁制区”可以让玩家很简单又很安全地进行水冷设备的安装。
![msi x670 system cooling none atx](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-system-cooling-non-atx.png)
![msi x670 system cooling none atx support branding icons](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-system-cooling-support-branding-icons.png)
- STRUCTURE
- PCB 设计
- 效能优化
直出10+1+1 供电设计
采用10+1+1 数位供电架构的旗舰VRM 设计,可释放并维持最佳性能。 MPG Z790I EDGE WIFI 结合双电源连接器和105A Power Stage,为INTEL 新一代处理器做好准备。
电源
电源
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/STRUCTURE-01.jpg)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/STRUCTURE-icon-01.jpg)

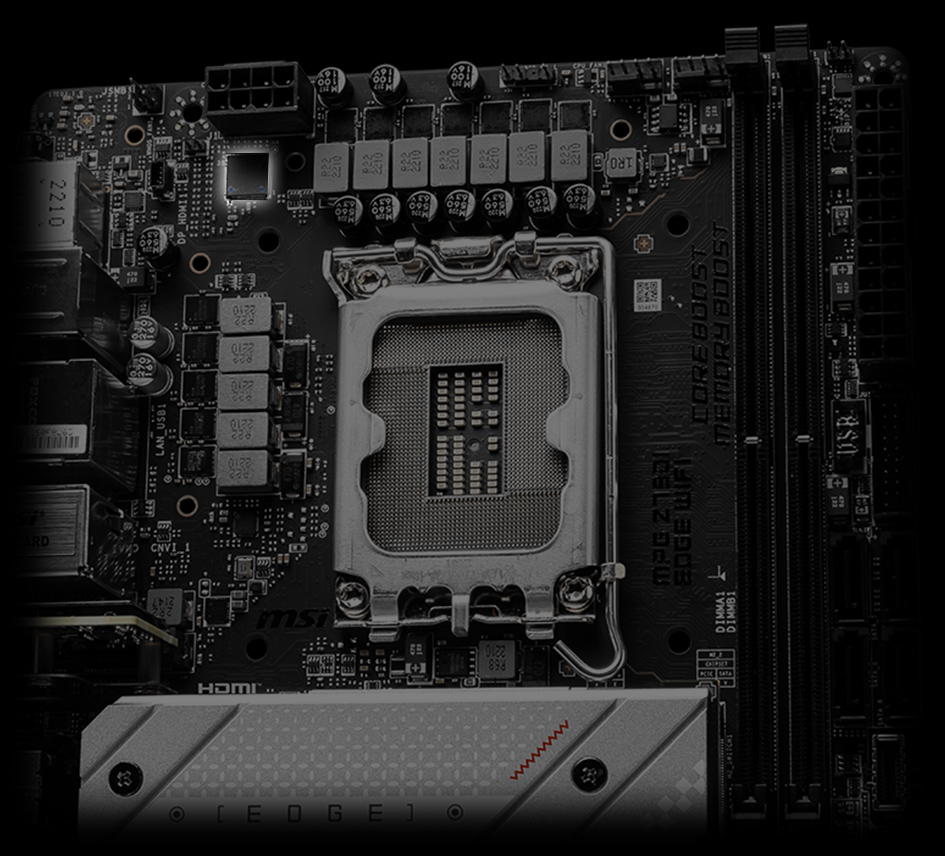

数位电源设计
采用数位化电源设计可以让传输到CPU的电流更快且减少讯号遗失的风险。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/STRUCTURE-02.jpg)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/STRUCTURE-icon-03.jpg)

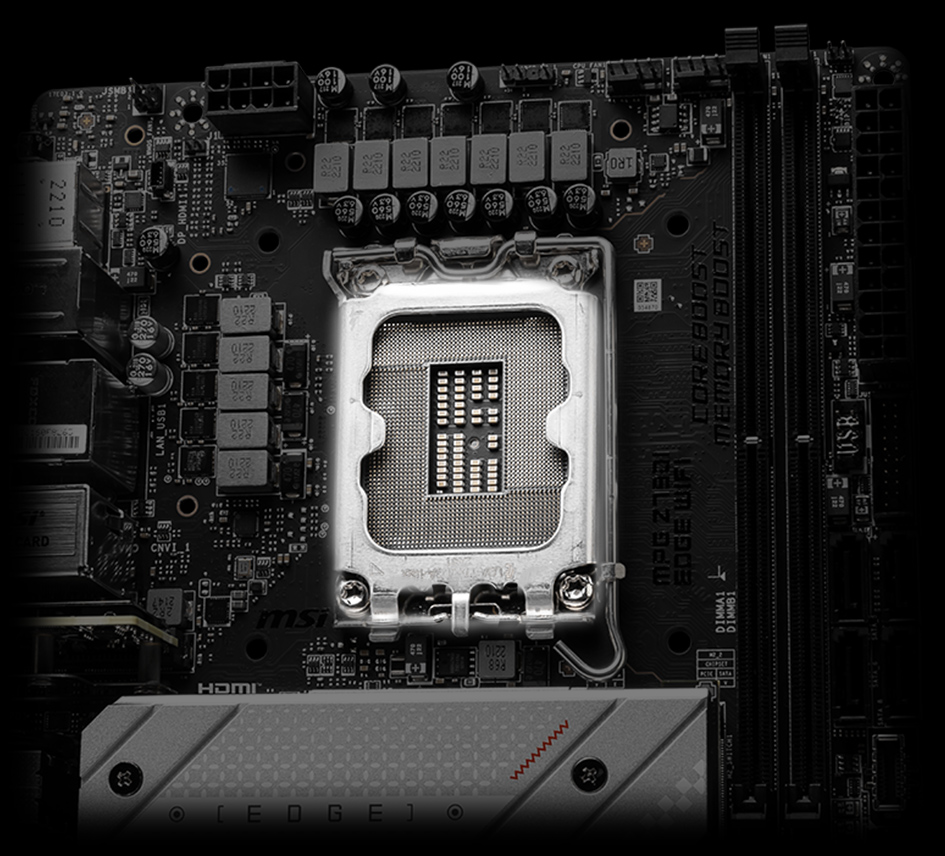

CORE BOOST
优异配置不仅支援多核心处理器,也为您的处理器创造了完美的超频条件。

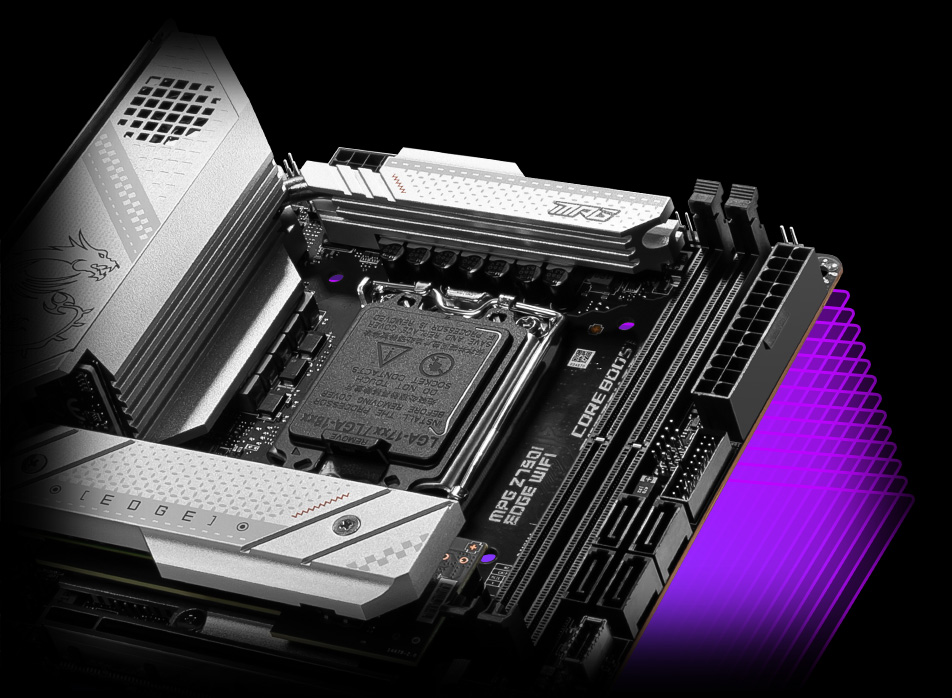

最佳PCB 解决方案
PCB 设计针对更高频宽与更快传输速度进行优化,让电路讯号传输更可靠稳定。 .
![OPTIMIZED PCB SOLUTION](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/pcb-img.jpg)
- 12 层PCB
- IT-170 伺服器等级PCB 材质
MORE FOR PERFORMANCE
![Clear CMOS](https://storage-asset.msi.com/global/picture/image/feature/mb/Z690_Carbon_Wifi/msi-z690-carbon-wifi-overclocking.jpg)
![Flash BIOS Button](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/morePerformance-img02.jpg)
![Dual BIOS](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/morePerformance-img03.jpg)
- 更多友善设计
MORE FOR DIY FRIENDLY
![WINDOWS 11 CERTIFIED](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/more-Diy-img01.jpg)
![MSI MB](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/pre-installed-pd.png)
![PRE-INSTALLED IO background](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/pre-installed-bg.jpg)

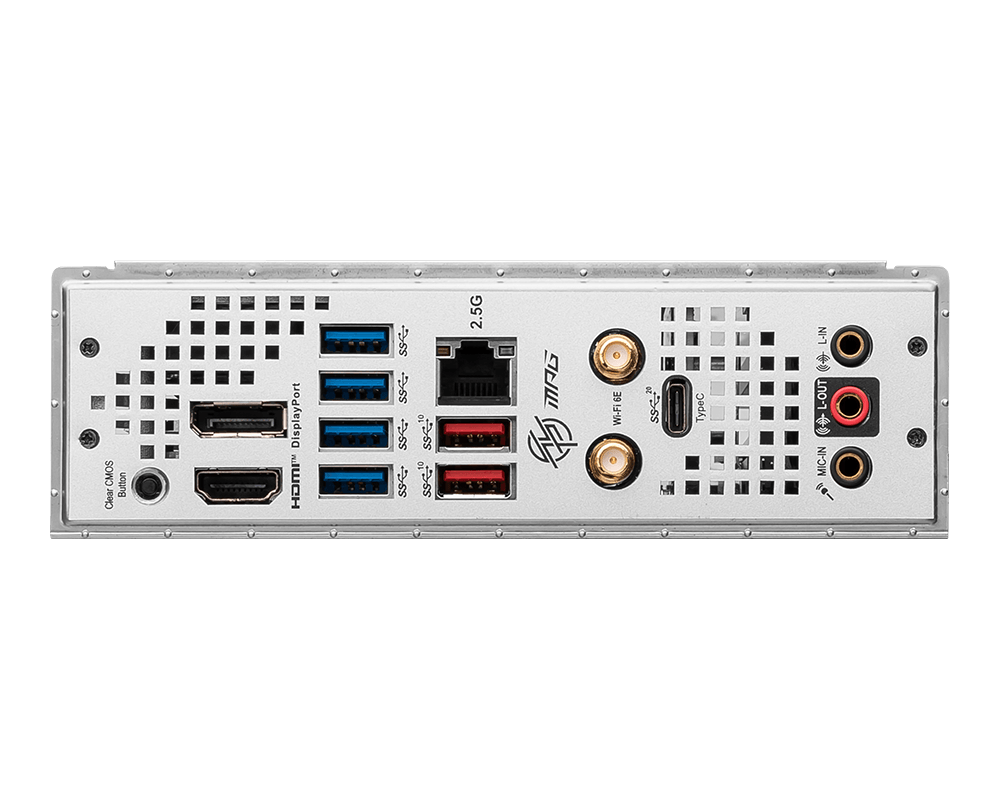

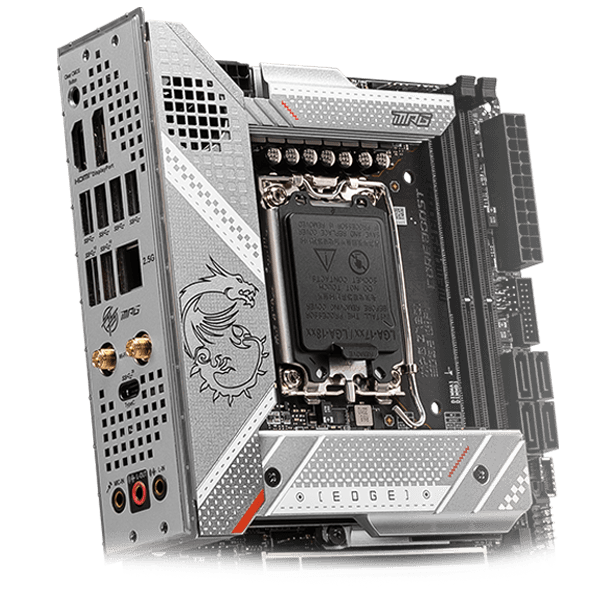

预装好的I / O上盖,使您在安装过程更轻松、更安全。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/more-Diy-img04.jpg)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/more-Diy-img06.jpg)
性能
- 扩充性
- 记忆体
- LIGHTNING GEN 5 PCI-E
- USB
搭载钢铁装甲的Lightning Gen 5 PCI-e
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/PCIe-Gen-5.png)
LIGHTNING GEN 5 PCI-E
提供x16 插槽介面,频宽可达到128 GB/s,是上一代速度的两倍。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z690/meg_z690_unify/SMT-PCIE-5_0-Slot.jpg)

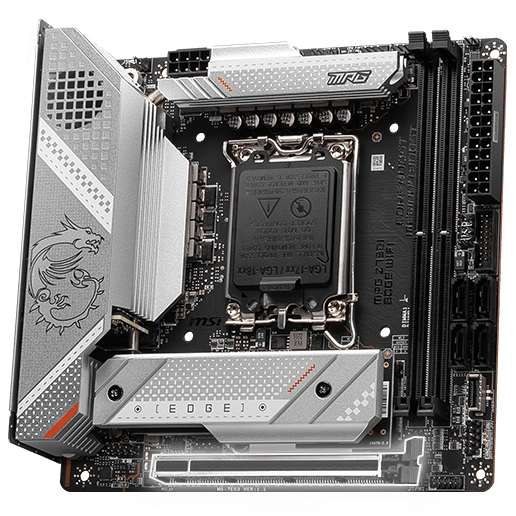

PCIE 5.0 插槽焊接工艺
PCI-E 插槽采用先进的SMT 焊接工艺(Surface Mount Technology),降低杂讯干扰和电噪声、充分支援更高频宽和传输速度的PCI-E 5.0 讯号。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/smt-pcie-mb.png)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z690/meg_z690_unify/aw-icon.png)
![MSI STEEL ARMOR](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-steel-armor.png)
主机板上增加多处焊点进行强化,以支撑沉重的显示卡重量。

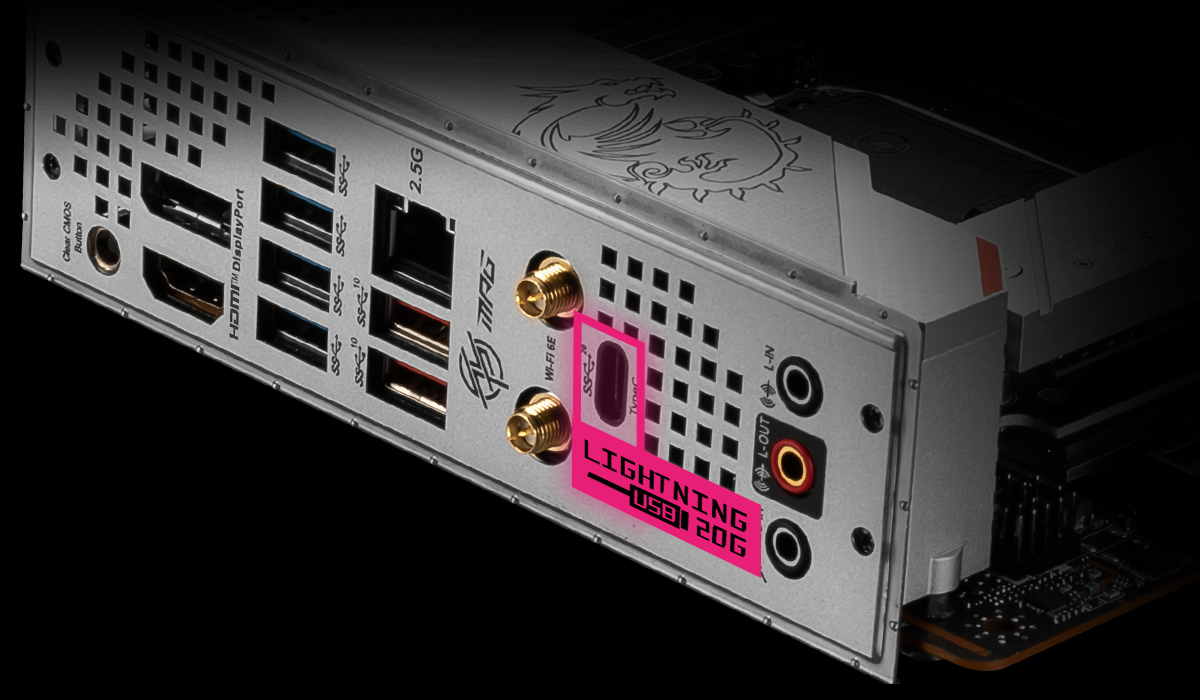

双频宽采用LIGHTNING USB 3.2 GEN 2x2 20G
USB 3.2 前所未有的快速! MPG Z790I EDGE WIFI 主板提供多种选择可增强USB 装备的传输速度,同时搭载后置USB Type-C ,传输速度更高达20Gb/s。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/lightning-usb-20g-mpg.jpg)
前置USB TYPE-C
MSI gaming 主板支援前置USB Type-C介面,使游戏玩家可以连接最新的USB 装置。并可配合MSI 机壳一起建构系统主机,可获得最便捷的体验。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/usb-mpg-1.jpg)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/usb-mpg-2.jpg)
- DDR5

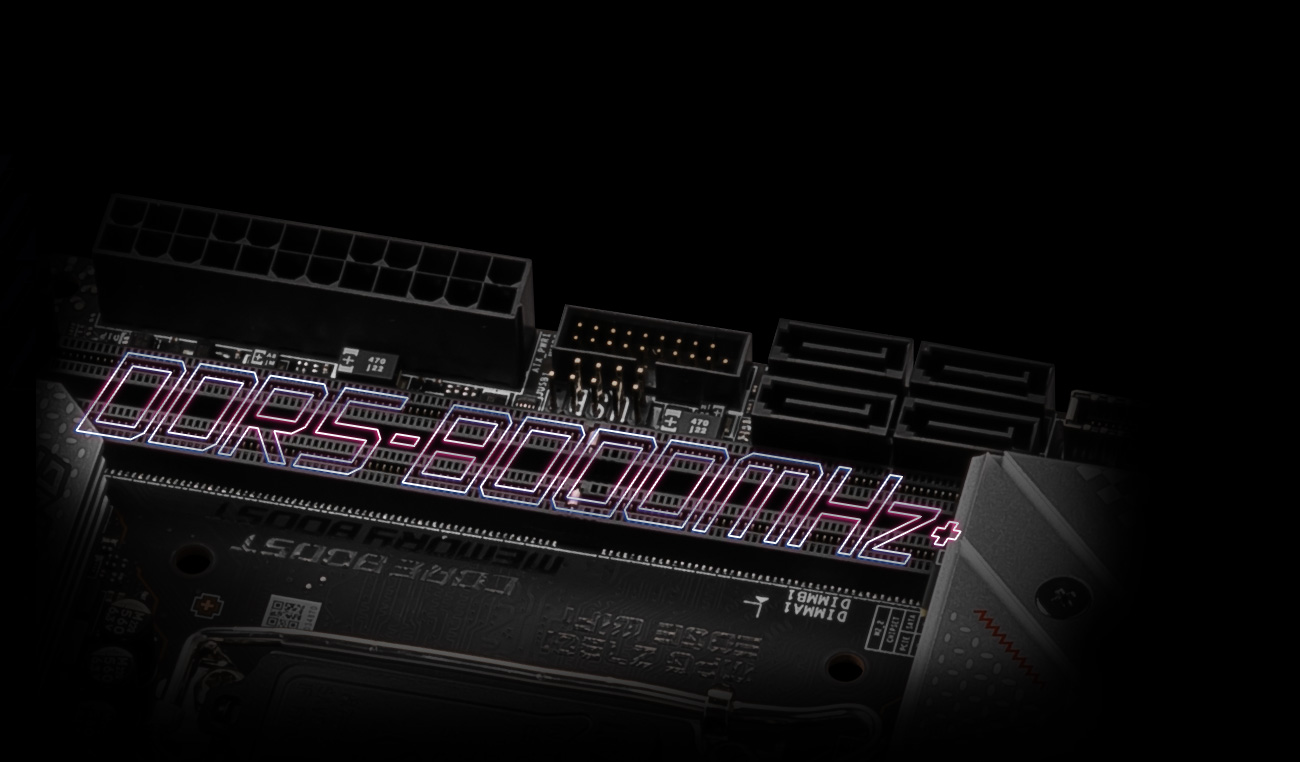

搭载SMT 插槽的DDR5 记忆体支援
最新的DDR5 记忆体支援,为DDR 性能迈进一大步! 结合独家SMT焊接工艺和MSI Memory Boost 技术,MPG Z790I EDGE WIFI 为您激发更强悍的记忆体性能。
先进的SMT焊接工艺(Surface Mount Technology),降低插槽焊点、电磁波和杂讯干扰的不良率,提供DDR5高时脉干净纯净的信号。
![LATEST DDR5 MEMORY WITH SMT SLOT](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/ddr4-ddr5.png)
![LATEST DDR5 MEMORY WITH SMT SLOT](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/ddr5-img.jpg)
连接性
- 音效
- mystic light
- 网路连线
- Audio Boost 5
audio boost 5
- 高清晰度ALC4080 音频处理器
- 高品质音效电容
- 高品质音效S/PDIF 连接埠
- 耳机功率扩大晶片
- AUDIO 线路独立区域
- DE-POP 保护机制
- Synchronize
轻松延伸您的RGB体验
利用Mystic Light 扩充插槽,可以增添RGB 灯条或其他RGB装置设备。 Mystic Light 软体直觉式介面,更方便您操作控制,无需再另外单购RGB控制器。

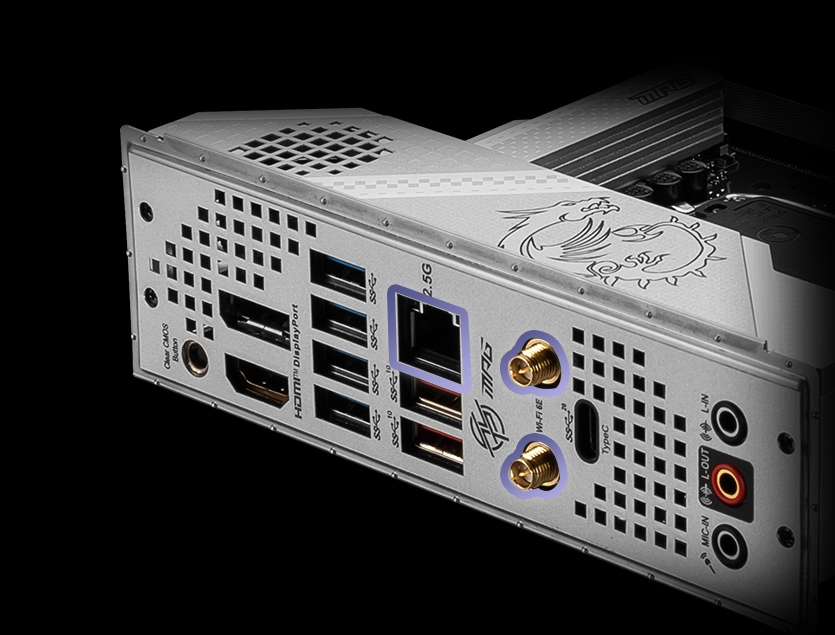

- 2.5G Lan & Wi-Fi 6E
高频宽、低延迟网路连线
MSI 配置优质网路解决方案,更快的惊人传输速度,彻底满足玩家的苛刻要求。
![msi lan 2.5g icon](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/lan-25g-icon.png)
![mai 6E wifi icon](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/lan-6e-wifi-icon.png)
![HIGH-BANDWIDTH AND LOW-LATENCY NETWORK](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790I/mpg_z790i_edge_wifi/lan.jpg)
- Wi-Fi 6E
- Bluetooth 5.3
- 2.5G LAN
- 独家磁吸式天线
![Msi wifi low latency](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-wifi-low-latency.png)

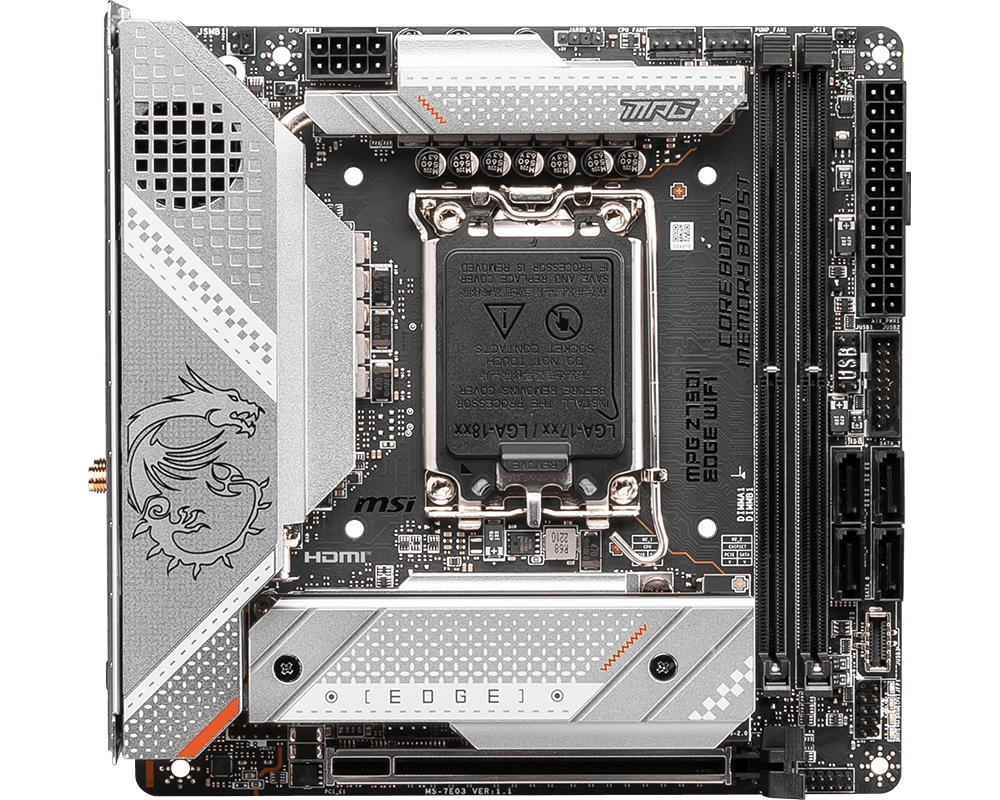

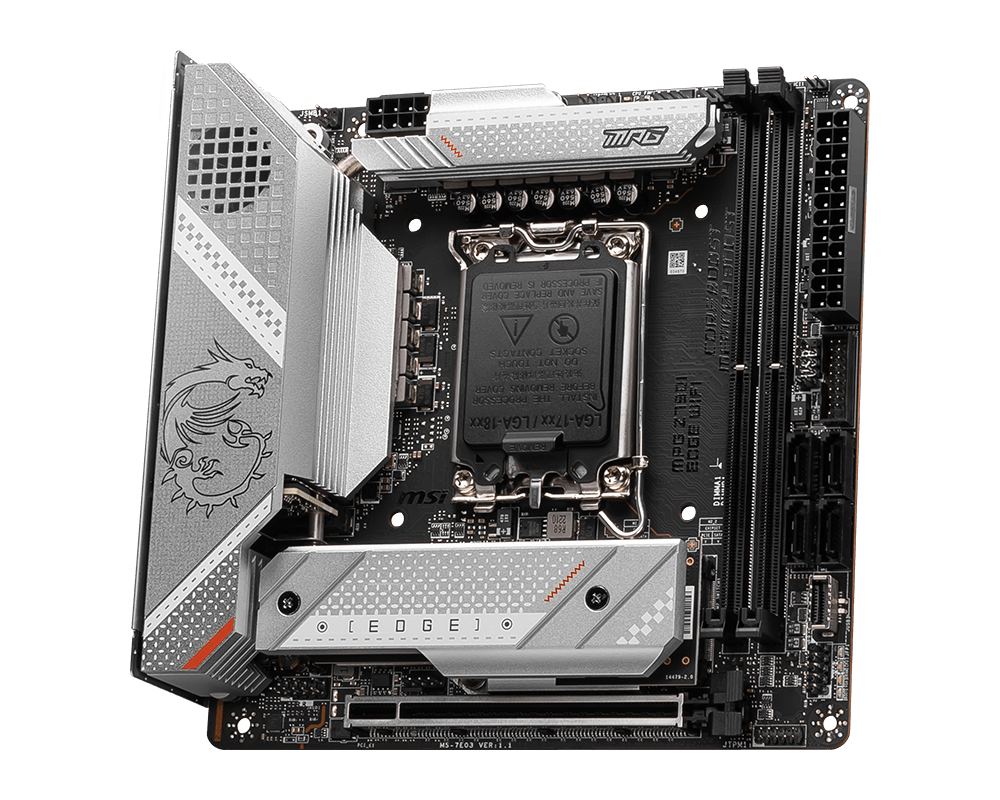

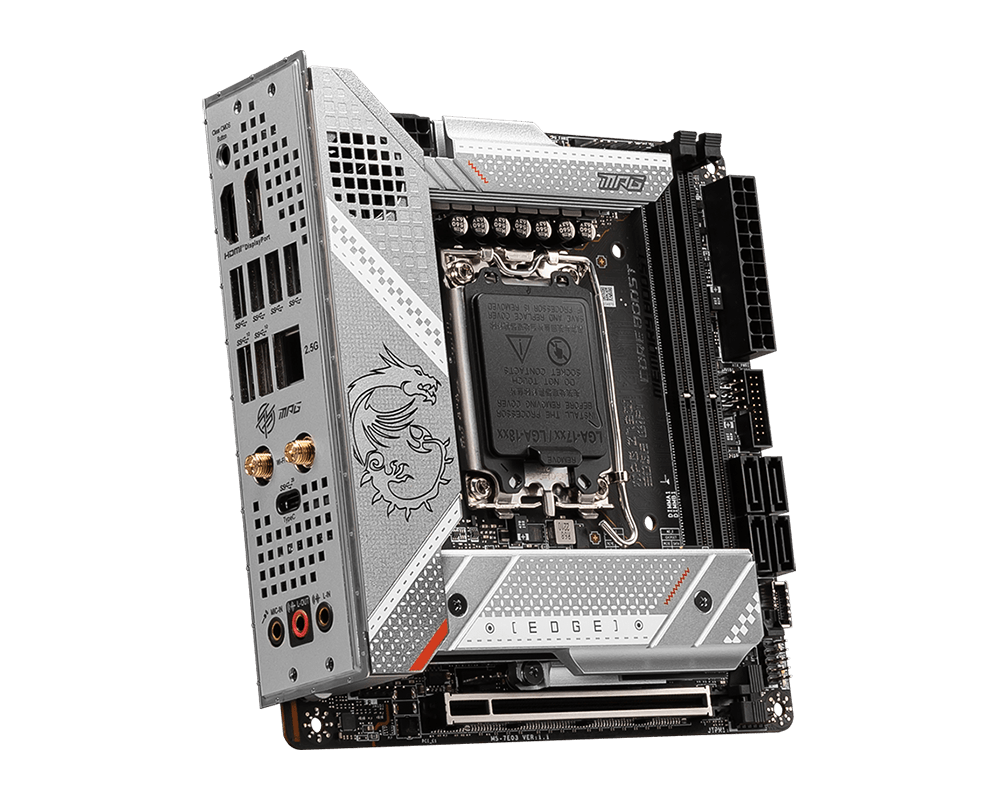

MPG Z790I EDGE WIFI
- 支援LGA 1700 脚位的第12 代/13代Intel ® Core™/ Pentium ®和Celeron ®处理器
- 支援DDR5 记忆体,高达8000+(OC) MHz
- 闪电极速游戏体验: PCIe 5.0 插槽, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
- 电源强化设计:直出10+1+1 供电项数、Core Boost、Memory Boost
- 优质散热解决方案: 搭载导热管的散热片加大、使用7W/mk 的MOSFET 散热垫、拥有额外电容的散热垫和M.2 Shield Frozr ,打造高性能和不间断游戏体验的系统
- 2.5G LAN 和Intel Wi-Fi 6E 解决方案:针对专业工作者与娱乐创作者需求,升级网路解决方案,提供更安全、稳定、快速的连线体验。
- AUDIO BOOST 5: 让您的耳朵沉浸在录音室等级的音效品质
- 高品质PCB : 12 层PCB 采用伺服器等级料件
- 预装I/O 上盖: 更好的EMI 保护和安装便利性
