PRO Z790-A MAX WIFI 设计简约,搭配弹性高。并采用MSI 的多项独家功能、更顺畅的Wi-Fi 7 解决方案,不论是Intel ®下一代处理器还是第13 代酷睿处理器,优化DDR5 效能更有感。
![Intel logo](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/PRO-Z790-P-WIFI/images/intel_13th_z790.png)
![Msi Z790 background](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/PRO-Z790-A-MAX-WIFI/images/kv-bg.jpg)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/PRO-Z790-A-MAX-WIFI/images/story-model.png)
![Msi Motherboard Pro Series Logo](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/pro/pro-x670-p-wifi/msi-motherboard-pro-series-logo.png)
PRO 系列拥有高效能技术搭载,协助用户更有效率地完成工作。
PRO 系列主板稳定性高,并由高品质零组料件建构而成,不仅优化专业工作流程,同时更具耐久性和可靠性。

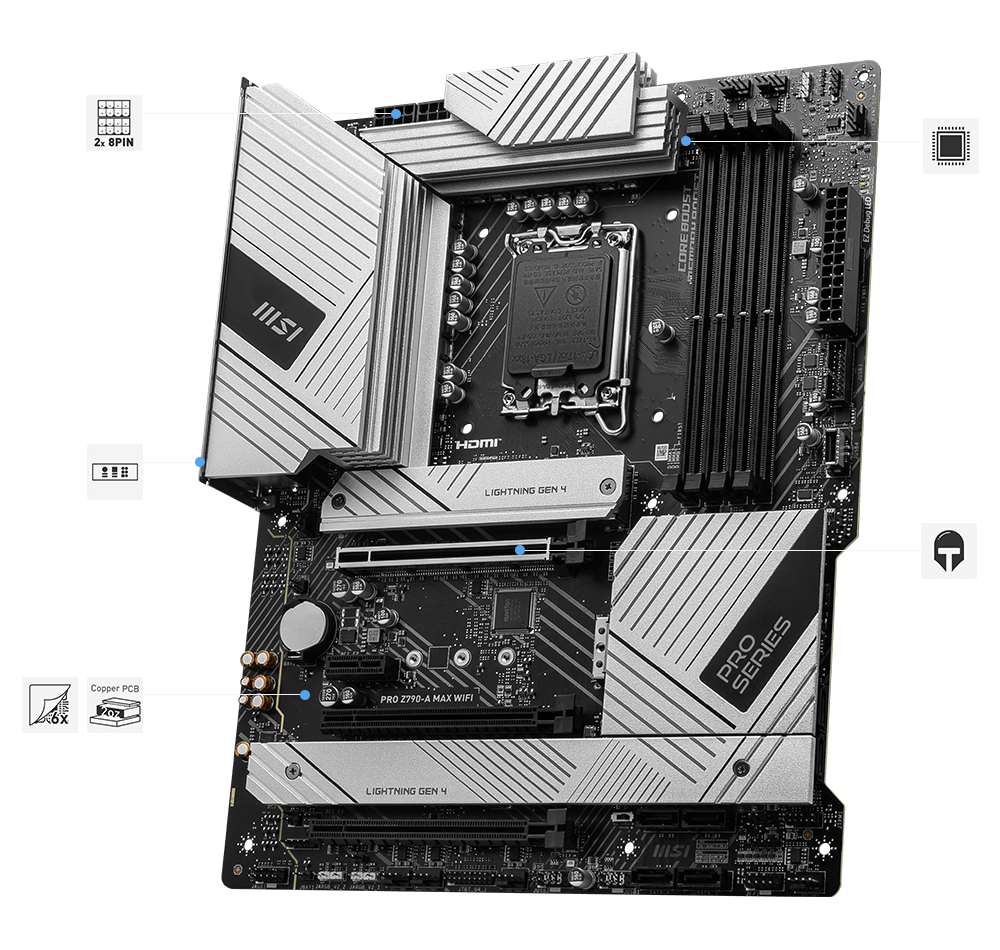

独家技术
![msi pro Z790-a wifi](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/PRO-Z790-A-MAX-WIFI/images/msi-pro-z790-a-max-wifi-hero-cooling.png)
![2x 8 Pin Power Connectors icon](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/PRO-Z790-A-WIFI/icon-creator-gray_2_8pin.png)
2x 8 Pin 电源连接埠
![Pre-installed IO Shield icon](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/PRO-Z790-A-WIFI/icon-creator-gray_Pre-installed_io_shieding.png)
预装I / O上盖
![6 layer PCB with 20Z icon](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_6-layer-PCB.png)
![creator 2oz thickend icon](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_2oz_thickened.png)
6 层伺服器等级PCB 加入2oz厚度铜
![digital pwn icon](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_Digital-PWM.png)
数位PWM
![PCIE Steel Armor icon](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_Steel-Armor-14.png)
PCIe 钢铁装甲

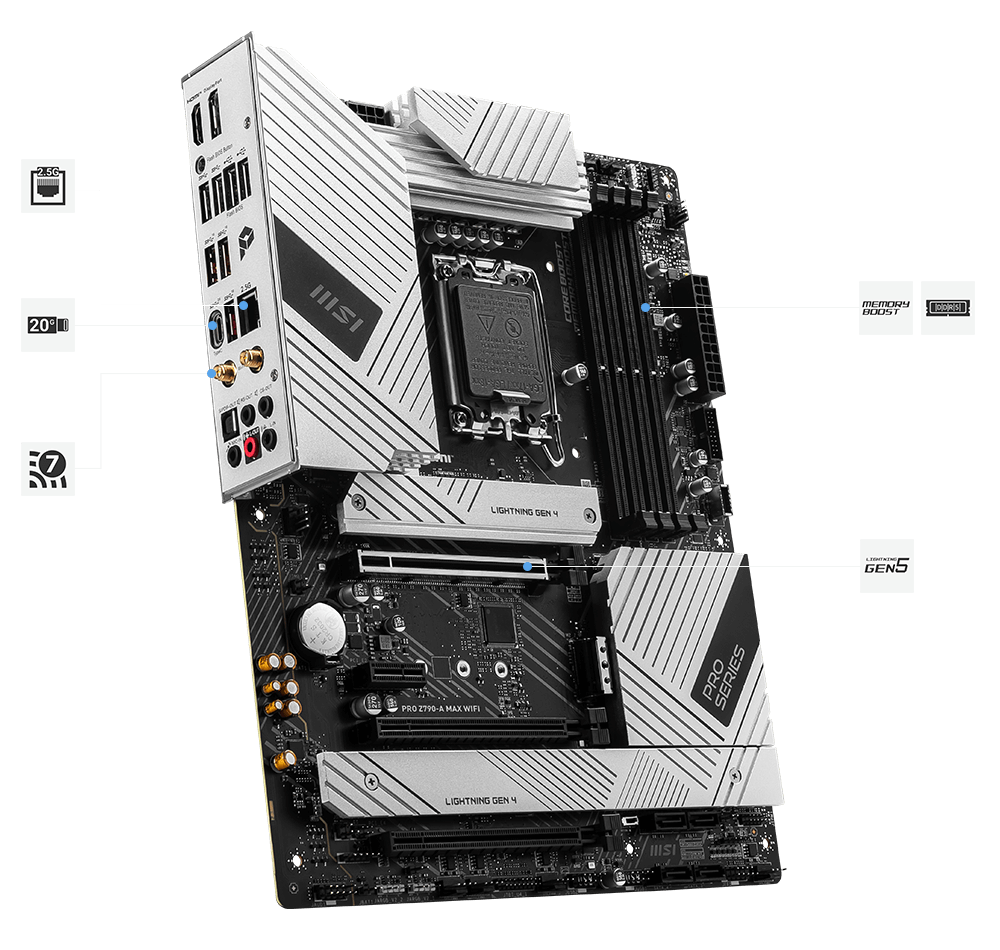

高速传输
![msi pro Z790-a wifi High speed features](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/PRO-Z790-A-MAX-WIFI/images/msi-pro_z790-a-max-wifi-Hero-high-speed.png)
![10G Super LAN](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_10g-super-lan.png)
2.5G 网路解决方案
![Lightning USB 20G](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_typec-20G.png)
Lightning USB 20G
![wifi 7 icon](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray-wifi7.png)
全新一代Wi-Fi 7
![memory boost icon](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_memory_boost.png)
![Latest DDR5 Memory](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_ddr5_memory.png)
支援DDR5
![lighting gen 5 icon](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_lightning_gen_5.png)
Lightning Gen 5

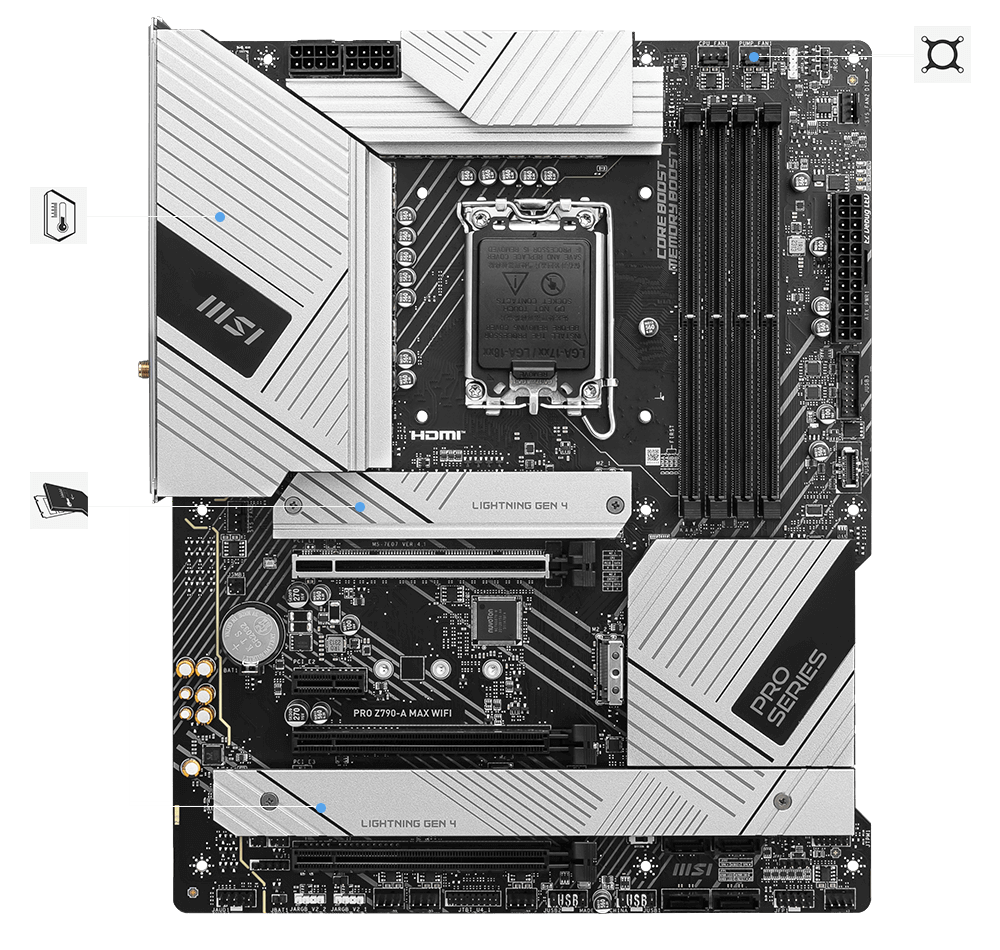

散热解决方案
![msi pro Z790-a wifi stable features](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/PRO-Z790-A-MAX-WIFI/images/msi-pro-z790-a-max-wifi-hero-stable.png)
![extened heatsink icon](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_extended-heatsink.png)
加大散热片
![M.2 shield frozr icon](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_M_2-Shield-Frozr.png)
M.2 Shield Frozr
![pump fan support icon](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/icon/icon-creator-gray_pump-fan-support.png)
帮浦风扇支援
硬件
- 散热
- 供电解决方案
- 友善设计
- 保护装置
- Fully Fan Control
- 水冷散热
完善风扇控制
MSI主板可让您管理所有系统和CPU风扇的速度和温度。 Total Fan Control让您在直觉式的介面中检查主要系统项目。您还可以为CPU和主板设置最多4个温度标准,系统也将依照这温度标准自动调整风扇速度。
![msi fully control software](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/PRO-Z790-A-WIFI/msi-fully-control-software.jpg)
使用MSI AI 引擎可检测CPU 和GPU 温度并自动将系统风扇负载调整为适当的值。
![msi ai cooling feature](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-fully-control-ai-cooling-feature.jpg)
优化水冷
支援市场主流一体式和客制化水冷解决方案。专用的水泵供电接头可支援到最大3安培电流输出,让您可以完全控制水泵的速度。清楚标注的“ 禁制区”可以让玩家很简单又很安全地进行水冷设备的安装。
![msi x670 system cooling none atx](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-system-cooling-non-atx.png)
![msi x670 system cooling none atx support branding icons](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-system-cooling-support-branding-icons.png)
- EZ M.2 CLIP
- 驱动安装
EZ M.2 CLIP
锁螺丝常遇到问题吗? MSI 独家EZ M.2 夹子可帮助您快速轻松地安装M.2 SSD。
![EZ M.2 CLIP animation](https://storage-asset.msi.com/global/picture/image/feature/mb/B760M/b760m-gaming-wifi/msi-b760m-ez-m2.gif)
驱动安装
一连接到网路,MSI Driver Utility Installer 将自动检测并显示合适的驱动程序和实用程序,您只需点击几下即可下载和安装了解更多
* 请确保连接到网路,否则Driver Utility Installer 不会自动启动。
* MSI Driver Utility Installer 将会内建在Windows 11 build 22H2 中。
![MSI DRIVER UTILITY INSTALLER (DUI)](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/driver-installer-img.png)
- 实心针脚设计
- GROUNDING STRUCTURE
- OCP Protection
- TVS
实心针脚设计
微星主机板4-pin、8-pin、24-pin 电源连接埠均采用实心针脚设计。在处理高负载电流时,实心针脚设计可以更稳定地将12V 供电传输到处理器。
实心针脚电源连接埠优势
- 提高稳定性: 更大接触面积,强化供电稳定性。
- 低阻抗: 实心针脚拥有低阻抗优势,让电流更有效率。
- 更耐用: 实心针脚高耐用度,对严苛环境具有高度承受力。
- 可以应付高电流的需求。
![solid pin design](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/meg-z790-godlike-max/images/solid-pin-design-pd.png)
电源相位的接地架构
电源相位的接地架构是微星独家设计。这项专利设计能够抑制电源相位所产生的电磁干扰(EMI),并有助于有效地将热能传导到具有接地特性的铜平面。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B760/mag-b760m-mortar-2/msi-z790-grounding-circle01.png)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B760/mag-b760m-mortar-2/msi-z790-grounding-circle02.png)
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B760/mag-b760m-mortar-2/msi-z790-grounding-circle03.png)
![Z790 Grounding Board](https://storage-asset.msi.com/global/picture/image/feature/mb/B760/mag-b760m-mortar-2/msi-z790-grounding-board.jpg)
过电流保护
MSI 主机板内建过电流保护(OCP) 优先考虑安全性,确保USB 连接埠、DDR 记忆体、PWM IC 和CPU 等关键组件免受过电流影响。这种主动防御机制可降低因过多电流突然涌入而造成损坏或故障的风险,从而促进系统的长期稳定性。让MSI 玩家使用的更安心。
![MSI CPU and PWN IC](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/common-features/images/msi-z790-over-current-protection-img01-new.jpg)
![MSI DDR Memory Slots](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/common-features/images/msi-z790-over-current-protection-img02-new.jpg)
![MSI Rear and Front USB ports](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/common-features/images/msi-z790-over-current-protection-img03-new.jpg)
瞬态电压抑制器(TVS)
瞬态电压抑制器(TVS) 是用于防止电压过高的安全装置。微星所有主机板均配置TVS。当电压异常升高时,TVS从高阻状态切换到低阻状态,将过高的电压转移到地上,有助于防止高电压引起的电路损坏。
![Transient Voltage Suppressors](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/meg-z790-godlike-max/images/tvs-img.png)
性能
- 扩充性
- 记忆体
- Bios & 软体
- MSI CENTER
- AIDA64
- System Safety
- RESIZABLE BAR
MSI CENTER
MSI 全新的MSI Center 将MSI 所有软体整合到一个应用程序中。进一步控制主机板功能,以释放无限可能性。
![Mystic Light](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-center-msytic-light.png)
![True Color](https://storage-asset.msi.com/global/picture/image/feature/mb/Z590/MPG/gaming-carbon-wifi/msi-center-true-color.jpg)
![User Scenario](https://storage-asset.msi.com/global/picture/image/feature/mb/Z590/MPG/gaming-carbon-wifi/msi-center-user-scenario.jpg)
![Hardware Monitoring](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-center-Hardware-Monitoring.jpg)
![Profile Setting](https://storage-asset.msi.com/global/picture/image/feature/mb/Z590/MPG/gaming-carbon-wifi/msi-center-oc-setting.jpg)
![Fan Center](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/msi-center-total-fan-control.jpg)
![System Diagnosis](https://storage-asset.msi.com/global/picture/image/feature/mb/Z690/meg_z690_unify/msi-center-System-Diagnosis.jpg)
AIDA64 EXTREME 独家版本
微星主机板提供AIDA64 Extreme 独家版本60 天免费试用。 AIDA64 Extreme 是一款电脑软硬体侦测诊断软体。通过该软体,您可以在电脑上监控作业系统、主机板、CPU、BIOS…等相关详细资讯,并可储存CSV、HTML 等多种格式文件。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/aida64-img.jpg)
System Safety
MSI PRO 全系列主机板在BIOS中皆导入SECURITY 功能,不论在商务或日常使用上,皆能为您保护个资文件资料。
Secure Boot
Secure boot 是一项安全标准,确保装置仅受可信任的软体启动。当主机启动时,韧体将会检测每个启动软体的讯号,包含UEFI 韧体驱动、EFI 应用程式和操作系统。当讯号是有效时,主机将会启动。
![System Safety](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/System-Safety.png)
RESIZABLE BAR
Resizable BAR (Re-Size BAR)是一项进阶PCI Express 功能,可以让CPU一次完整存取GPU的记忆体,减少与GPU的来回沟通,进而改善许多游戏的效能。
![](https://storage-asset.msi.com/global/picture/image/feature/mb/X670/template/images/Resizable-BAR-Technology_Other.jpg)
连接性
- 音效
- mystic light
- 网路连线
- Isolated Analogy Structure
音效连接埠的隔离架构设计
为了提供清晰的语音,微星设计独特的——隔离结构设计。音效连接埠加上金属框架,与内部构造完全隔离,让音质更新清脆无杂讯。
![isolated on](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/common-features/images/audio/msi-isolated-07-case-on.jpg)
![MSI Isolated Analogy Structure for Audio Connectors](https://storage-asset.msi.com/global/picture/image/feature/mb/Z790/common-features/images/audio/msi-isolated-07-base.jpg)
* The image above is an illustrative reference. Please refer to specification pages for more details.
- Synchronize
轻松延伸您的RGB体验
利用Mystic Light 扩充插槽,可以增添RGB 灯条或其他RGB装置设备。 Mystic Light 软体直觉式介面,更方便您操作控制,无需再另外单购RGB控制器。
- WIFI 7 解决方案
最新的无线解决方案WI-FI 7
最新的无线解决方案Wi-Fi 7 ,新世代大跃进,多项改进技术,满足时下越来越多无线装备对庞大频宽的渴望。
*Windows 11 compatibility only
与Wi-Fi 6 (802.11ax) 相较,Wi-Fi 7 (802.11be)提供更高的速度、更大的频宽,大幅降低延迟问题,拥有更好的连线效率。并提供更长的电池使用寿命,在拥挤环境中也能提供更佳性能。
Wi-Fi 7 连线速度高达5.8 Gbps !比之前的Wi-Fi 6/6E 标准快2.4 倍, Wi-Fi 7 将成为未来的连线主流。
前几代Wi-Fi 频宽为160MHz 。 Wi-Fi 7 将频宽提升至320MHz(6GHz )——确保在最大速度传输时,也能同时拥有高稳定性。
更高的正交振幅调变(QAM,Quadrature Amplitude Modulation),每个封包可以携带的数据就越多。 Wi-Fi 7 将调变方案从1024-QAM 增至4096-QAM,进而提高峰值传输速率和网路流量。
Wi-Fi 7 可使设备能够跨多个频段和通道同时发送和接收数据,满足未来扩充无线设备时,也能应付庞大的流量需求。
PRO Z790-A MAX WIFI
- 支援LGA 1700 脚位的第12 代/第13 代Intel ® Core™ / Pentium ® Gold 和Celeron ®处理器
- 支援DDR5 记忆体,双通道DDR5 7800+MHz (OC)
- 强化电源设计:16+1+1 DRPS 采用80A SPS、双8-pin CPU 电源连接埠、Core Boost、Memory Boost 。
- 优质散热解决方案: 搭载导热管的散热片加大、使用7W/mk 的MOSFET 散热垫、拥有额外电容的散热垫和M.2 Shield Frozr ,打造高性能和不间断游戏体验的系统。
- 高品质PCB : 6 层2oz 厚度铜PCB,采用伺服器等级用料。
- 闪电极速游戏体验:PCIe 5.0 插槽、Lightning Gen 4 x4 M.2、USB 3.2 Gen 2x2
- Intel Turbo USB 3.2 Gen 2 :采用Intel USB 3.2 Gen2 控制器,Turbo USB 可确保不间断、高稳定性以及最快的USB 传输速度。
- 搭载Wi-Fi 7 解决方案的2.5G LAN:针对专业工作者与娱乐创作者需求,升级网路解决方案,提供更安全、稳定、快速的连线体验。
- AUDIO BOOST 5: 让您的耳朵沉浸在录音室等级的音效品质,提供最身临其境的游戏体验。
